Raw Ore: High-grade Wollastonite ore with associated Garnet and Diopside
Feed Grade: 65-70% Wollastonite
Concentrate Grade: >98% Wollastonite, Aspect Ratio >15:1
Product Recovery Rate: 85%
Capacity: 500 tons per day
Work Scope: Lab Test, Process Design, Equipment Supply, Installation & Commissioning Supervision

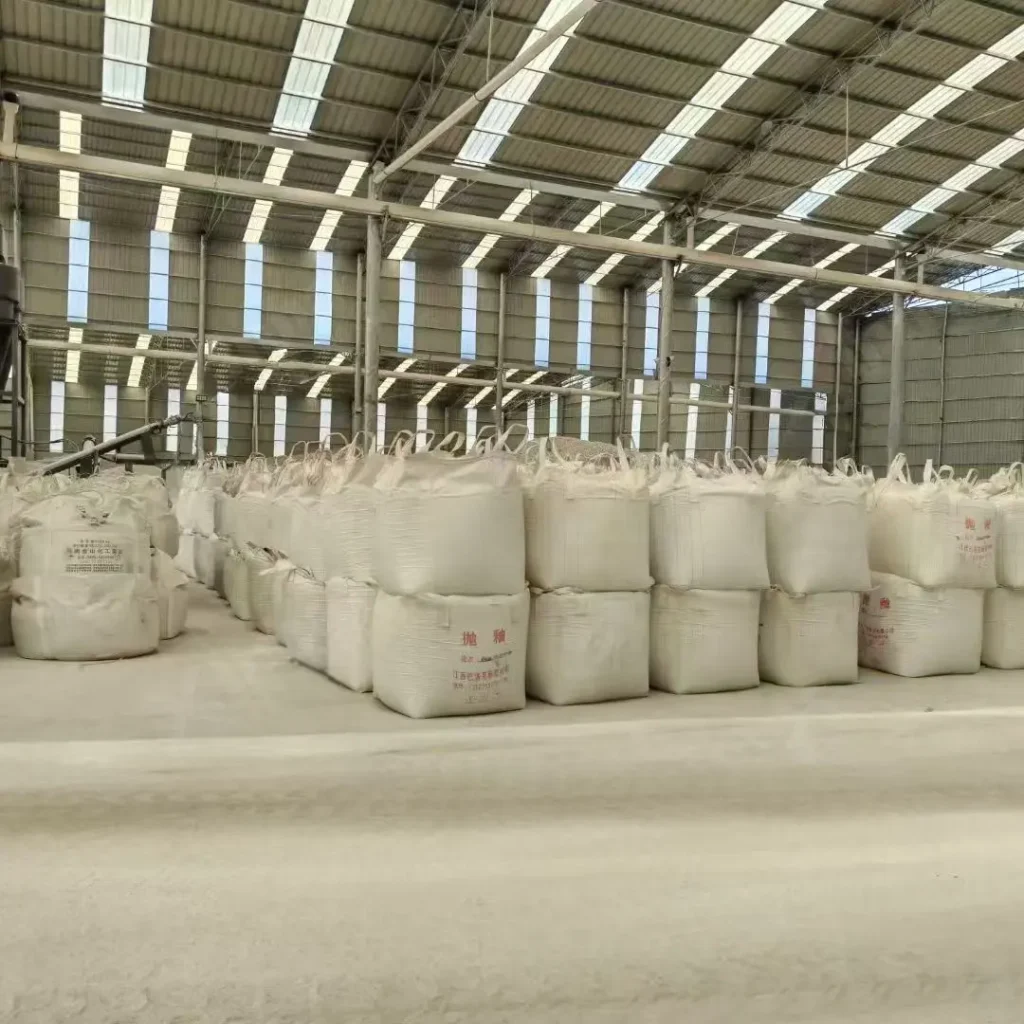

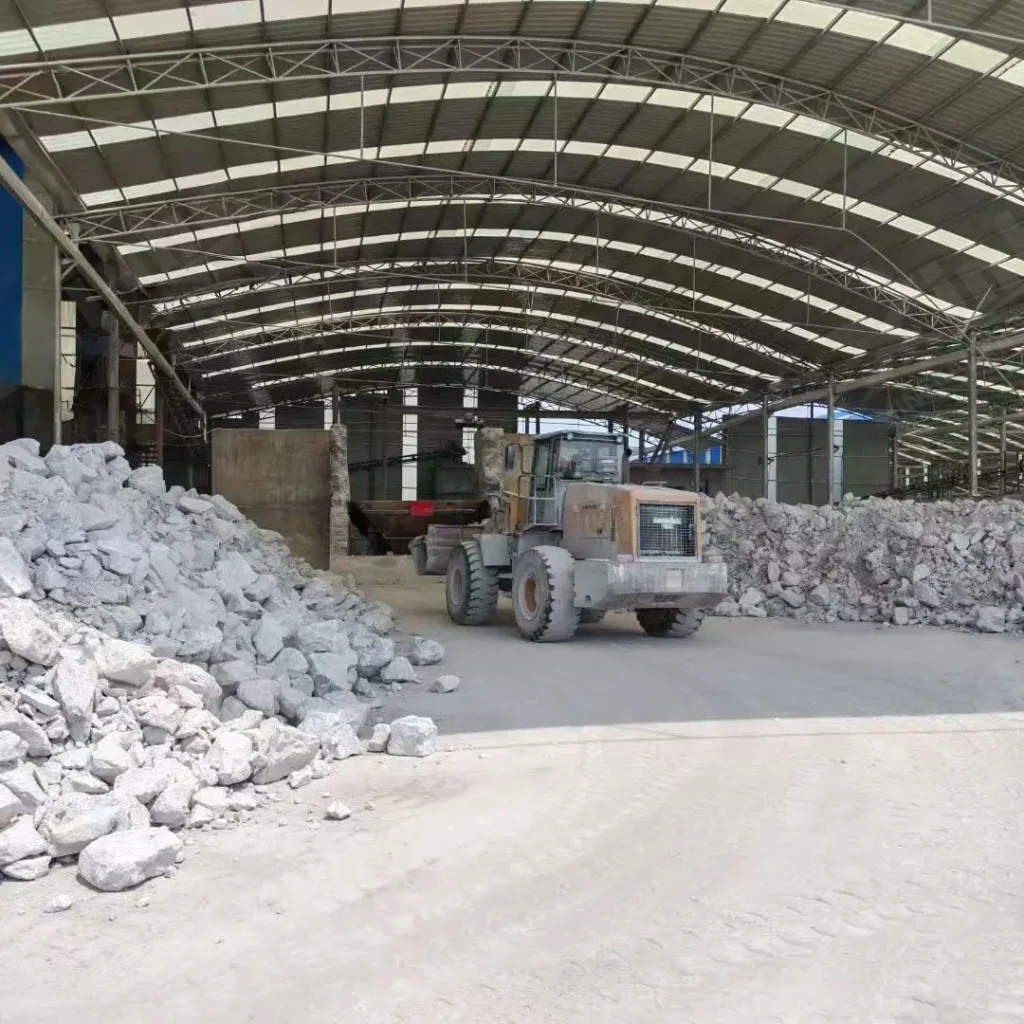

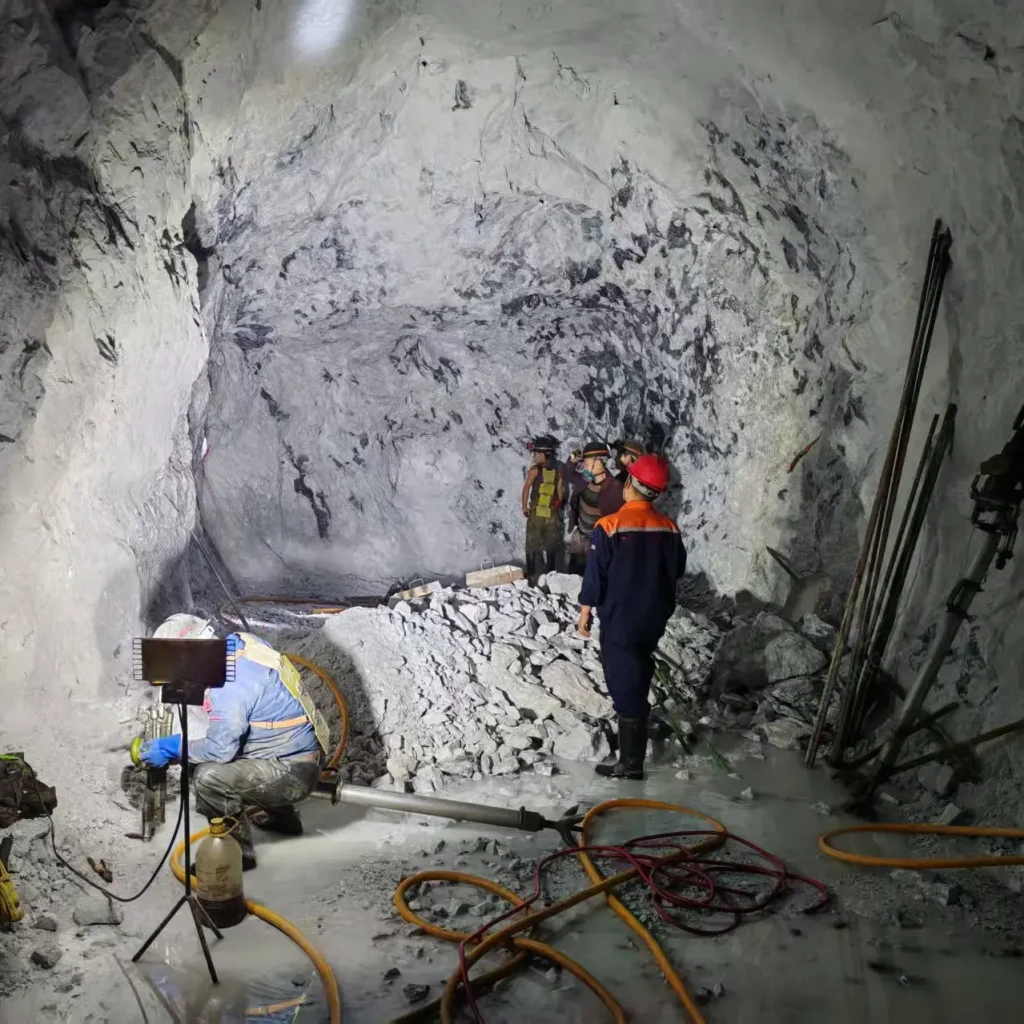

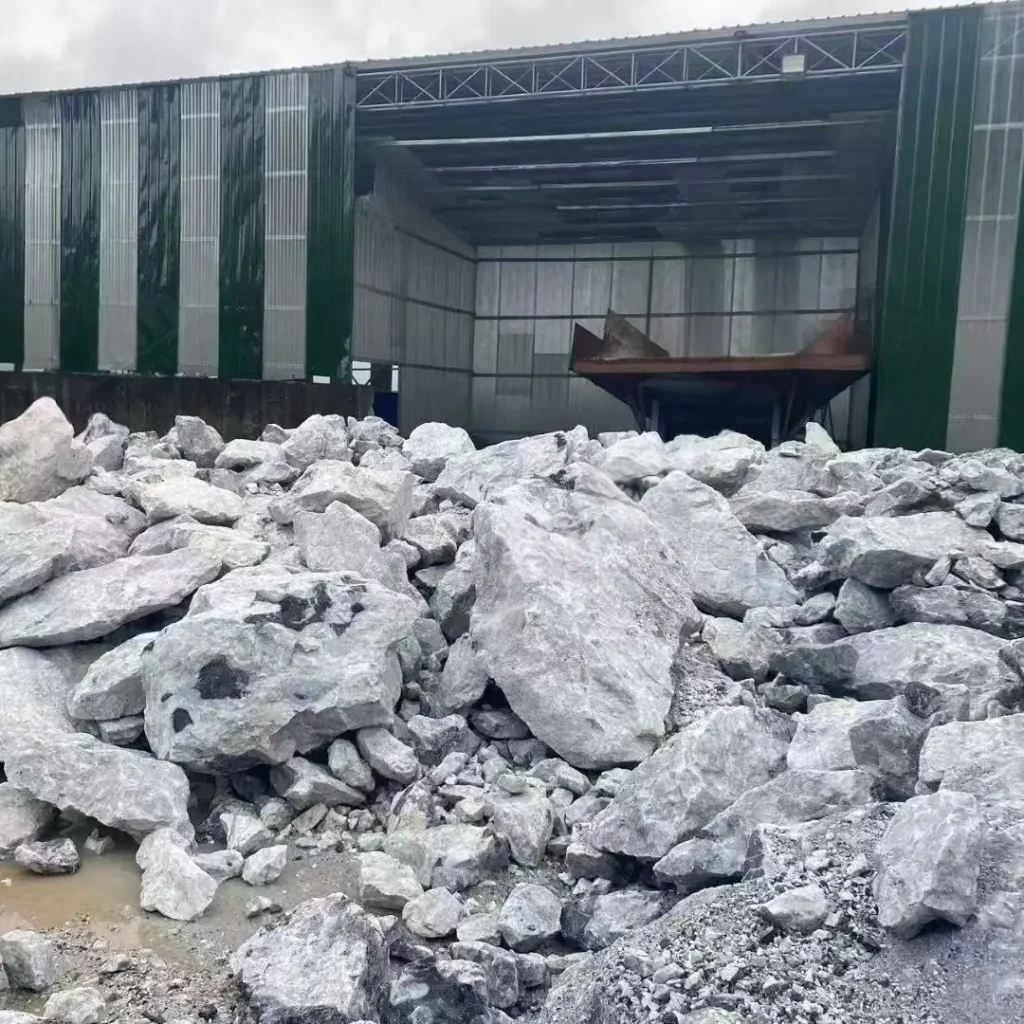

Here are some photos of the project, click on the small picture to view the large picture.
Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.
Three-stage crushing system (Jaw Crusher + Cone Crusher + Hammer Crusher) to liberate at 10 mm
Primary & Secondary Grinding with Rod Mills to preserve crystal structure and aspect ratio
High-efficiency Air Classification to separate products by mesh size (100, 200, 400 mesh)
Dry tailings handling with dust suppression system
High-intensity Magnetic Separator (2 stages) for iron and ferrous mineral removal
Multi-stage Froth Flotation (1 Roughing, 3 Cleaning) for selective separation of calcite and quartz
Concentrate packaging and bagging system
