How to configure graphite beneficiation processes and equipment for ultra-low ash?

2025-10-11

Configuring graphite beneficiation processes and equipment for ultra-low ash content requires detailed understanding and careful optimization of each step in the beneficiation process. The goal is to purify raw graphite ore to maximize fixed carbon content while minimizing ash impurities. Here’s a detailed guide on how to achieve ultra-low ash graphite production:

1. Understand the Characteristics of Graphite Ore

Before designing the beneficiation process, carry out a detailed analysis of the raw graphite ore to determine:

• Graphite particle size and morphology: Flake, amorphous, or vein graphite.
• Mineralogical associations: Identify gangue minerals associated with graphite.
• Liberation size: The size at which graphite is liberated from the host matrix.

Using techniques such as X-ray diffraction (XRD), optical microscopy, and scanning electron microscopy (SEM), establish the mineralogical and chemical composition of the ore.

2. سىنىققا ئېچىش ۋە ئۇغرىلىق:

Efficient liberation of graphite flakes from the gangue matrix is critical:

• مىساللارغا، jaw crushersياكىcone crushers for coarse crushing to avoid over-grinding, which can damage graphite flakes.
• Follow up with rod mills or ball mills for fine grinding based on the liberation size determined in the initial analysis.

مىساللارغا، يېپىق دەۋرلىك سېغىش paired with hydrocyclones to prevent over-grinding and maintain optimal particle size distribution.

3. Classification and Desliming

During grinding, fines (<10 microns) may get generated, which could lead to difficulty in separation and higher ash content. Implement classification and desliming stages using:

• هىدروسىكلونلار or classifiers to segregate fine and coarse particles.
• Remove slimes using desliming cyclones, screw classifiers, or settling tanks.

This step minimizes slimes that are rich in impurities.

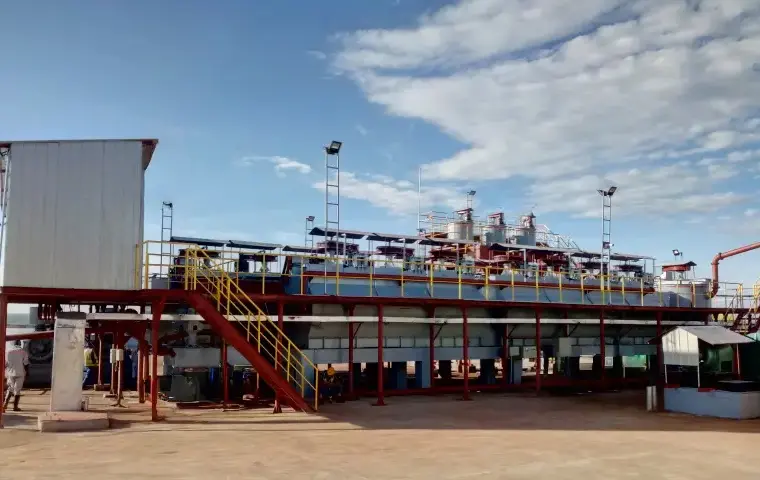

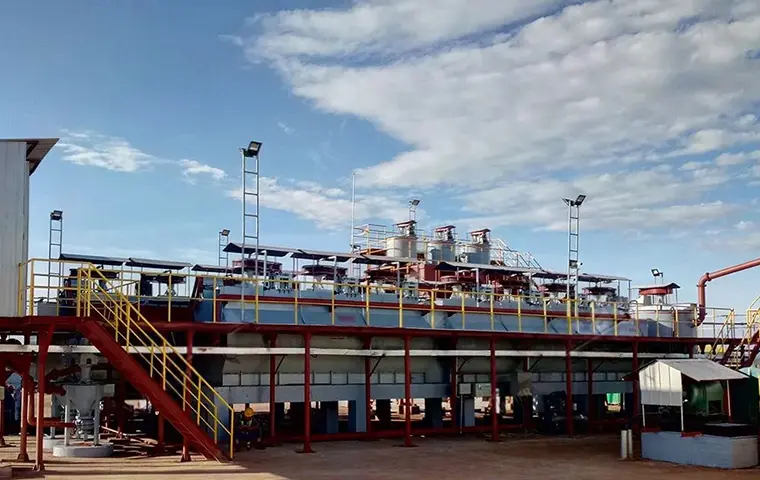

4. Flotation for Initial Purification

Flotation is one of the most effective methods for graphite beneficiation and reducing ash content:

• رېئاجېنتلار: Use collectors such as kerosene, diesel oil, or light oil, paired with frothers (e.g., MIBC) to enhance flotation performance.
• Perform rougher flotation: Prioritize preservation of large flake graphite by using low-energy stirring equipment.
• Cleaner flotation: Conduct multiple stages of cleaner flotation to remove impurities progressively.
• Optimize the pulp pH (typically 7–10) and reagent dosage to improve graphite selectivity.

5. جاذبىي سепاراش

Introduce gravity separation to remove heavy gangue minerals like quartz, feldspar, and mica. Equipment options include:

• چارشىلاردىن تەۋرىنىش (تەۋرەنىشلىك چېكىش ماشىنىلىرى): For cleaning medium particle sizes.
• ۋىرۇس قويۇقلۇقى: Suitable for fine to medium particle sizes.
• Multi-gravity separators (MGS): For finer classifications and concentrating sub-micron graphite particles.

6. Chemical Leaching for Ultra-Low Ash Content

To achieve ultra-low ash levels (<1%), chemical purification is required:

• Acid treatment: Conduct acid leaching using HCl, H2SO4, HF, or a combination of acids to dissolve silicate gangue and oxidize impurities.
  • The acid concentration, temperature, and reaction time must be optimized for effective impurity removal while preserving the graphite flakes.
• Alkaline wash: Treat the residue with alkali (NaOH or KOH) to remove remaining silicates and carbonates.
• Thoroughly rinse the graphite to eliminate acid or alkaline residues.

7. Thermal Purification (Optional for High Purity)

For ultra-high-purity graphite (e.g., >99.9% fixed carbon), thermal purification may be required post-chemical leaching:

• Heat graphite in a high-temperature furnace (>2,500°C) to drive off volatile and metallic impurities.
• Inert atmospheres (e.g., argon or nitrogen) may be required to prevent oxidation.

8. Dewatering and Drying

After beneficiation, remove moisture from the final product:

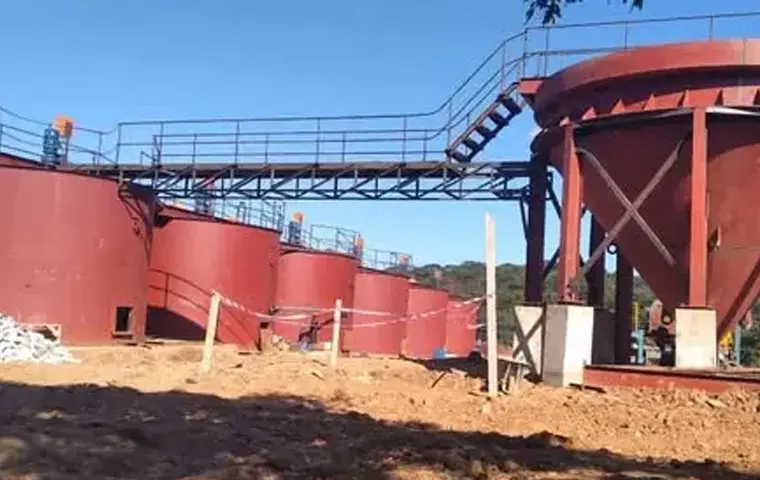

• سودا تەييارلاش ۋە بوشۇن تىرمىسى : Employ settling tanks or high-rate thickeners.
• Filtration: Use vacuum, drum, or plate-and-frame filters.
• قۇرۇتۇش: Apply rotary or flash dryers and maintain controlled temperatures to avoid structural damage to graphite flakes.

9. Screening and Classification

Grade the final purified graphite based on particle size and flake size distribution (e.g., fine, medium, or large flake graphite). Use industrial sieves or vibrating screens for classification.

10. Process Monitoring and Automation

• Implement process control systems to monitor grinding, pulp pH, chemical dosing, and flotation performance.
• Utilize online and offline analysis tools such as elemental analyzers or fixed carbon analyzers to ensure real-time quality control.

11. Selection of Equipment

Invest in appropriate high-efficiency equipment for each process stage:

• تۆكۈش ۋە ئىتلەرەڭ.: Opt for equipment that prevents over-grinding (e.g., AG/SAG mills, rod mills).

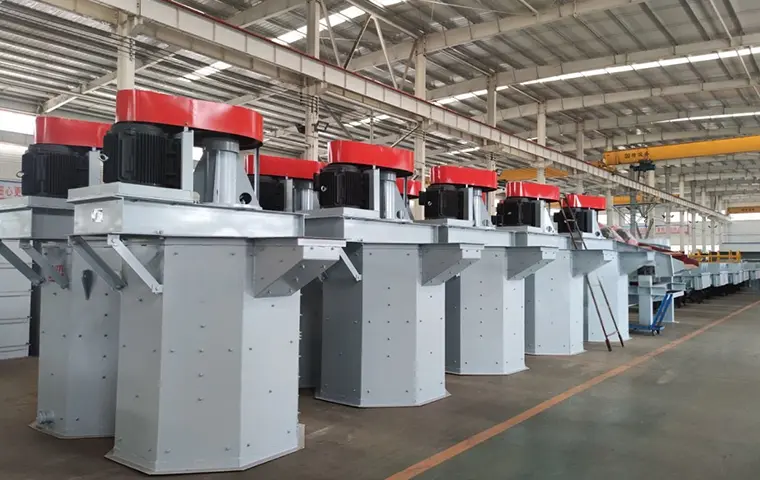

• ئۈزۈلۈش كىلىمالىرى: Use configuring air-inflation cells for better grade recovery.
• Purification reactors: Acid-resistant tanks/reactors made of PTFE, polypropylene, or other suitable materials.

12. Environmental and Safety Considerations

• Dispose of chemical effluents responsibly using neutralization and wastewater treatment systems.
• Ensure dust suppression and ventilation systems are in place.
• Follow environmental regulations for tailings and effluents.

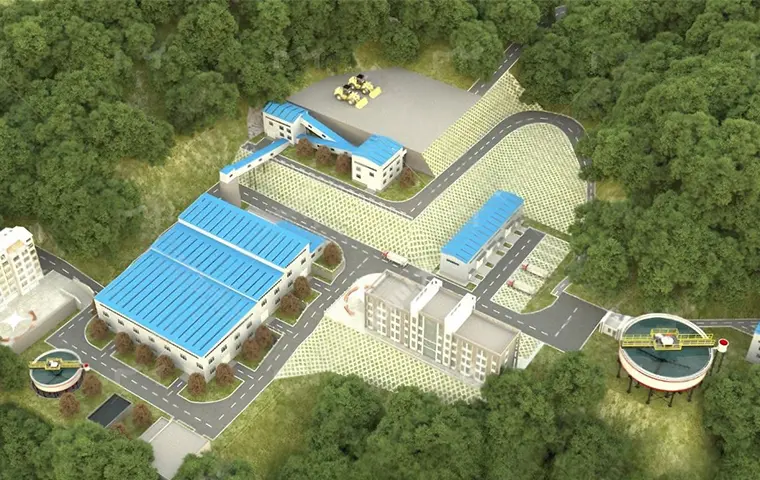

Summary Workflow

1. Crushing and grinding →
2. Classification and desliming →
3. Multi-stage flotation →
4. Gravity separation →
5. Chemical leaching →
6. Thermal purification (if needed) →
7. Dewatering and drying →
8. Screening and classification →
9. Tailings management and product quality assurance.

Implementing the above steps with precise optimization and appropriate equipment will help in achieving ultra-low ash graphite with high fixed carbon content suitable for advanced applications like lithium-ion batteries, electric vehicles, and aerospace industries.
