Raw Feed: Lithium Pegmatite Ore (Spodumene Dominant)
Li₂O Grade: 1.2%
Final Product: Battery-Grade Lithium Carbonate (Li₂CO₃)
Product Specification: Li₂CO₃≥99.95%, Fe<10ppm, Na<100ppm
Overall Recovery: 78% (Mine-to-Product)
Capacity: 2.0 million tons ore/year → 300,000 t/year concentrate → 45,000 t/year Li₂CO₃
Work Scope: EPCM + Roasting Technology License

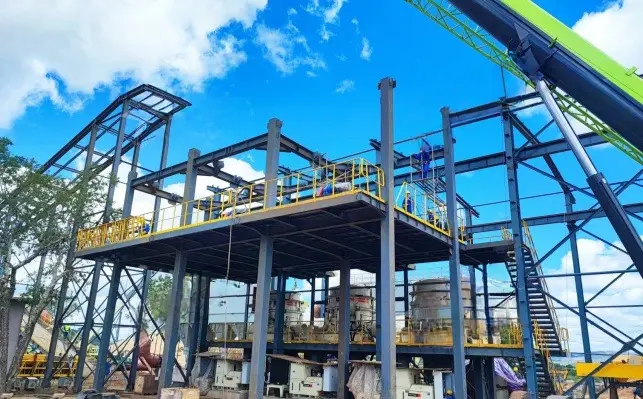

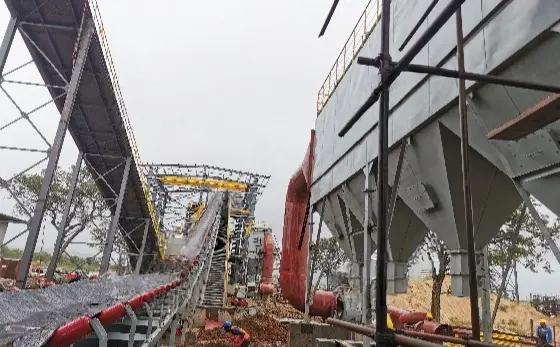

Here are some photos of the project, click on the small picture to view the large picture.
Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.
Ore Preparation：3-stage crushing (Jaw→Cone→VSI) → Ore size ≤12mm；Dense Media Separation (DMS) pre-concentration (discard 40% waste)
Thermal Phase Conversion：Rotary kiln roasting: 1100°C (α-spodumene → β-spodumene)；Quick quenching with air → Magnetic separation (iron removal)；
Lithium Carbonate Production：Evaporation crystallization (Li₂SO₄ solution → 30% TDS)；Sodium carbonate precipitation: 2Li⁺ + CO₃²⁻ → Li₂CO₃↓；Centrifugation → Fluidized bed drying (200°C)

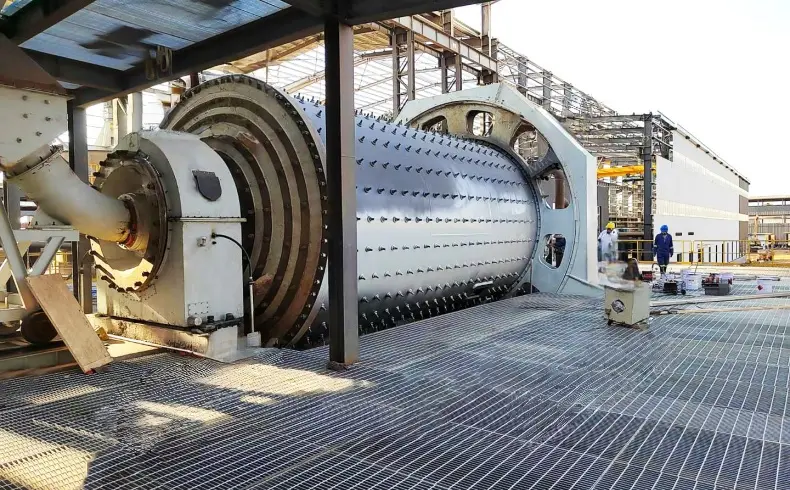

Flotation Circuit：Stage grinding: SAG mill → Ball mill (P80=150μm)；Conditioning: NaOH (pH 10.5) + Oleic Acid collector；5-stage flotation: Rougher→Scavenger→3×Cleaner；Concentrate grade: Li₂O≥6.0% (SiO₂<2%, Fe₂O₃<0.5%)
Acid Leaching & Purification：Sulfuric acid digestion (250°C, 30min, solid:acid=1:1.35)；4-stage CCD washing → Filtrate pH adjustment (Na₂CO₃)；Ion exchange: Remove Ca²⁺/Mg²⁺ (residual<1ppm)
Tailings Management：Neutralization: Lime treatment (pH 7-8)；Filter press → Dry stacking (90% solids)；Fluoride removal plant (CaCl₂ precipitation)
