LIMS Magnetic Separator

Prominer can provide different LIMS (Low Intensity Magnetic separator) magnetic separators which is permanent magnetic separator for Iron ore processing include: dry type and wet type LIMS magnetic separators for magnetite ore. According to different working principles, they are classified into three Kinds: current style(S), counter-current style (N) and Semi-countercurrent style (B).
Magnetic field intensity : 1000-5000 Gauss Power : 3-15KW

Services

Prominer can provide the service work as below

Mineralogical analysis
Lab and pilot test
Magnetic separator design and OEM service
On-site erection & commissioning and training

Feature

Our equipment with the main advantages as below

Higher capacity
While the capacity of LIMS is much dependent on the raw material, the LIMS have been proven for its outstandingly high capacity to save the quantity of LIMS and investment.
Heavy dusty design
Adopt endurable and abrasion-proof material for magnetic drum.
Reliable and continuous running
Use Rare-earth magnet to ensure stable performance and higher efficiency.
Energy-saving and high-efficiency
Improve feeding ore grade of ball mill to reduce operation cost.
Automation control system
PLC system with touch screen display to realize the automation control.
Ease of operation
LIMS are designed to allow normal variations in feed conditions without the need of any adjustment.

Application

Low grade magnetite cobbing, magnetite dry lump discarding tailings, increase feeding grade for ball mill, magnetite cleaning & scavenging process and magnetite concentrate dewatering process. Remove Magnetite powder in DMS (Dense medium separation) system.

Project Cases

Wet type LIMS Rougher magnetic separator for Iron ore

Finer material is in almost all applications preferably processed in water.

Permanent magnetic separator for magnetite

According to magnetic intensities, magnetic separators can be classified into three kinds: low-intensity magnetic separators (900-1700Gauss), middle-intensity magnetic separators (2000-6000Gauss), high-intensity magnetic separators (6000-20000Gauss).

Drum magnetic separator for martite

The belt separators are specifically designed to handle coarse feed (feed top size ca 200 mm), while the dry drum LIMS is optimised for medium sized material (feed top size ca 20 mm).

LIMS magnetic separator for Banded Iron ore

According to magnetic intensities, magnetic separators can be classified into three kinds: low-intensity magnetic separators (900-1700Gauss), middle-intensity magnetic separators (2000-6000Gauss), high-intensity magnetic separators (6000-20000Gauss).

Cleaning and scavenging magnetic separator

Prominer also offers wet LIMS designs optimised for flotation froth scavenging, recovering magnetite lost to the floats and dense media recovery.

Magnetite grinding and magnetic separation process

For final concentrate separation, the countercurrent, CTC, model is the most efficient and most widely used model to produce high grade products.

LIMS magnetic separator in DMS System for coal washing

To recover of e.g., magnetite and ferro-silicon in DMS(dense media separation) processes, LIMS is designed specially to provide highest possible media recovery.

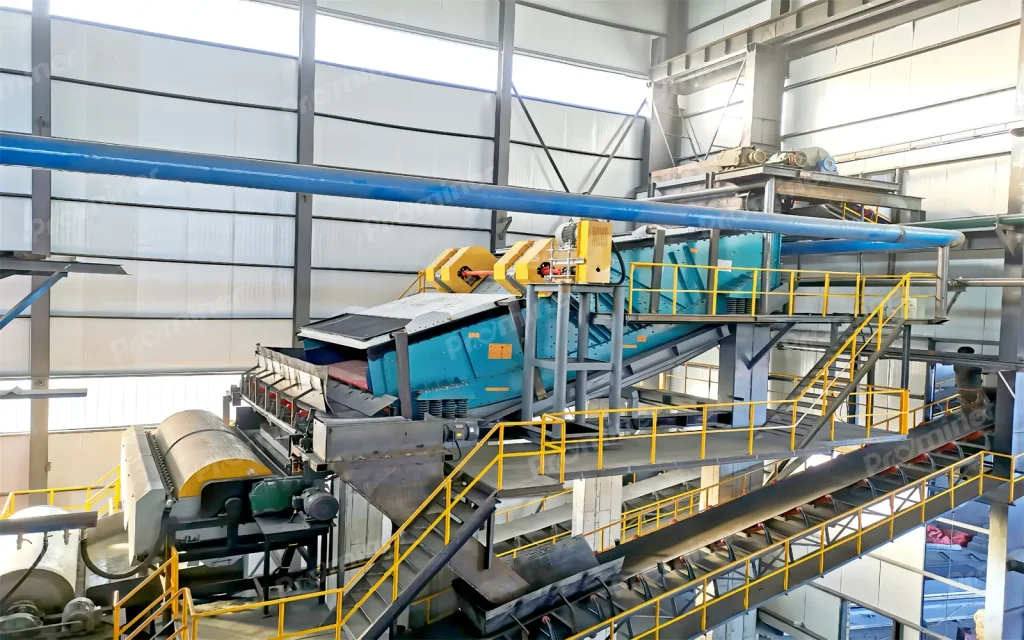

Dry type LIMS magnetic separator for magnetite cobbing

Pre-concentration is often referred to as cobbing or sorting, which makes a lot of sense from an economical and environmental point of view to pre-process magnetite in a dry state whenever possible.
