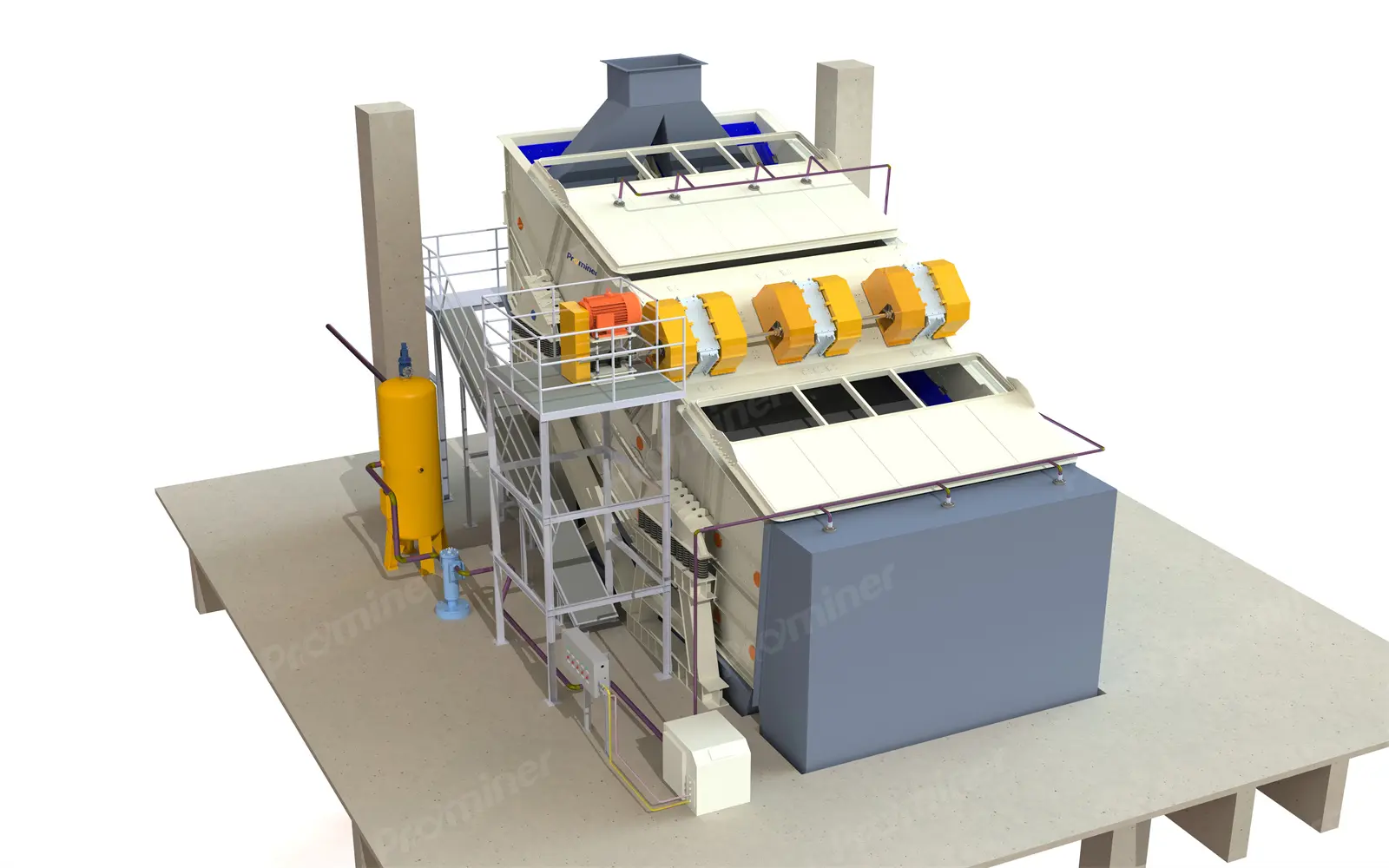

Flip Flow Screen

Flip-flow screen panel continues expanding and contracting so achieve a high acceleration rates to separate ultra-fine material and prevent the screen panel openings from plugging. Prominer can design and manufacture heavy duty flip flow screen for large scale mining, coal, ports, railways, electric power industry project. We can supply dry and wet type flip flow screen include single layer, double layer, and banana type flip flow screen.

Capacity: Maximum 4000-5000 tph Output Size: Minimum 0.5 mm


Prominer can provide the service work as below

Flip flow screen model selection
Flip flow screen design & manufacturing
On-site erection, commissioning and operation training
Longer warranty period for main beam and vibrator up to 5 years


Our equipment with the main advantages as below

Ultrafine sieving
Ultrafine sieving can process minimum size 0.5 mm.
Long service life
Excellent two mass screen theory, corrosion protection and wear resistance are taken.
High capacity
Large capacity Up To 4000-5000 t/h.
Heavy duty design
Heavy duty box exciter, large clearance helical gear transmission, thin oil lubrication, no breathing cap, maintenance free.
Automation control system
Automation control system with online monitor function and remote control.
Multi type dust control system available
Dust cover, wet and mist type dust suppression system could be chose by clients.


Super fine, high moisture content and sticky material sieving include: Raw coal, Bauxite, Nicke ore, Crushed ore from HPGR mill, Magnetite cobbing, DSO Iron ore powder, construction aggregates, construction waste mixed with house hold waste, clay contained mineral and over burden mineral. Large scale crushing plant screening for Iron ore, copper ore, gold ore, lead & zinc ore, cement, and chemical industry.

Project Cases

HPGR mill closed circuit screening for Iron ore magnetic separation

The throughput of the high-pressure roller mill is 3600-4000t/h, which is combined with two micro-sizing screens with 5mm screen mesh.

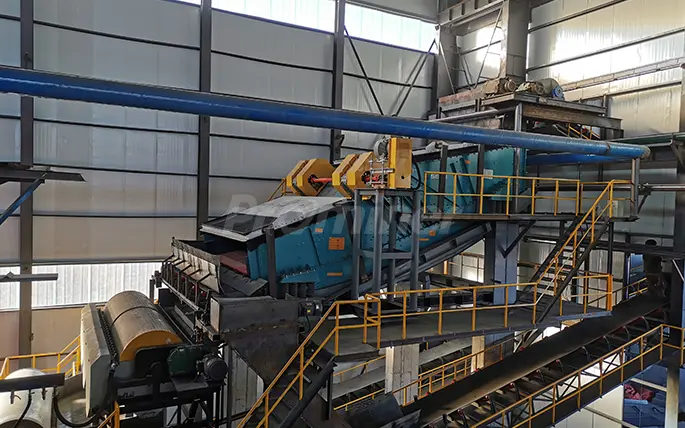

Flip flow screen for magnetite cobbing project

Flip flow screen is used to separate different size of magnetite before entering magnetic separator for fine size concentrate and medium size concentrate.

Flip flow screen for cooper flotation plant

Flip flow screen could be used for flotation processing of cooper, graphite, lithium, Molybdenum ore, iron ore., etc.

Flip flow screen for gold ore CIL plant after cone crusher

The processing capacity of one set of flip flow screen could reach 1000-2000tph to reduce civil cost.

Flip flow screen for gold flotation plant

Besides applied in the gold flotation processing line, flip flow screen also could screen out 0.5mm particle size for gold heap leaching project.

Flip flow screen for coal washing plant

Flip-flow vibrating screens (FFVSs) are the critical screening equipment for classifying and dewatering wet materials in mining processing industry.

Flip flow screen for over burden hematite

Flip flow screen is suitable for ultra-fine 2-5mm over burden hematite separation.

Flip flow screen for construction waste

Dust cover, wet and mist type dust suppression system is designed with flip flow screen for construction waste separation.
