Raw Ore: Dolomite Rock (CaMg(CO₃)₂)
Feed Size: ≤10 mm
Final Product: Ultra Fine Dolomite Powder
Product Sizes: 5, 10, 15, 20 microns (adjustable)
Capacity: 2 tons per hour
Work Scope: Equipment Supply, Installation & Commissioning

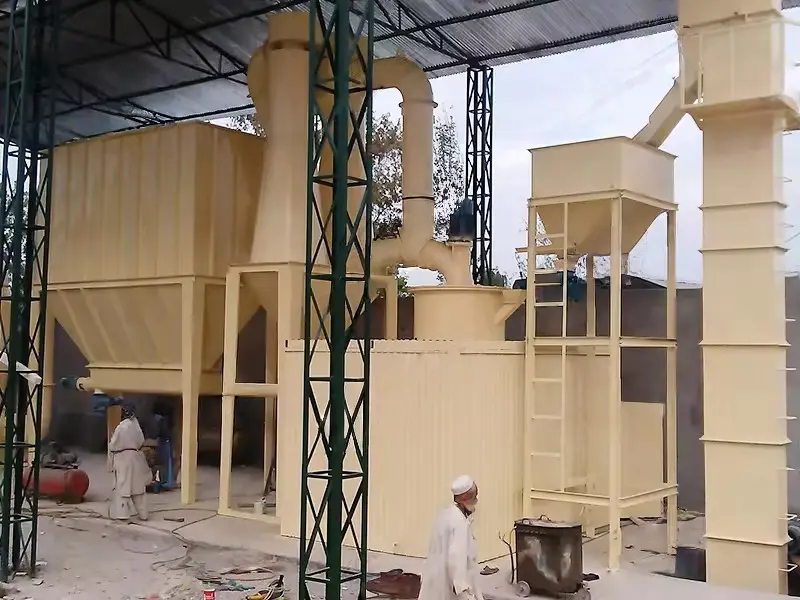

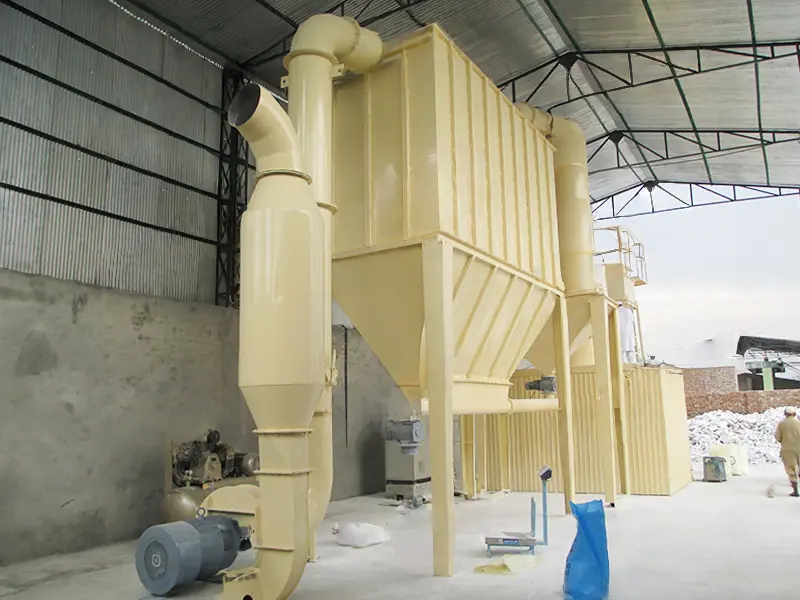

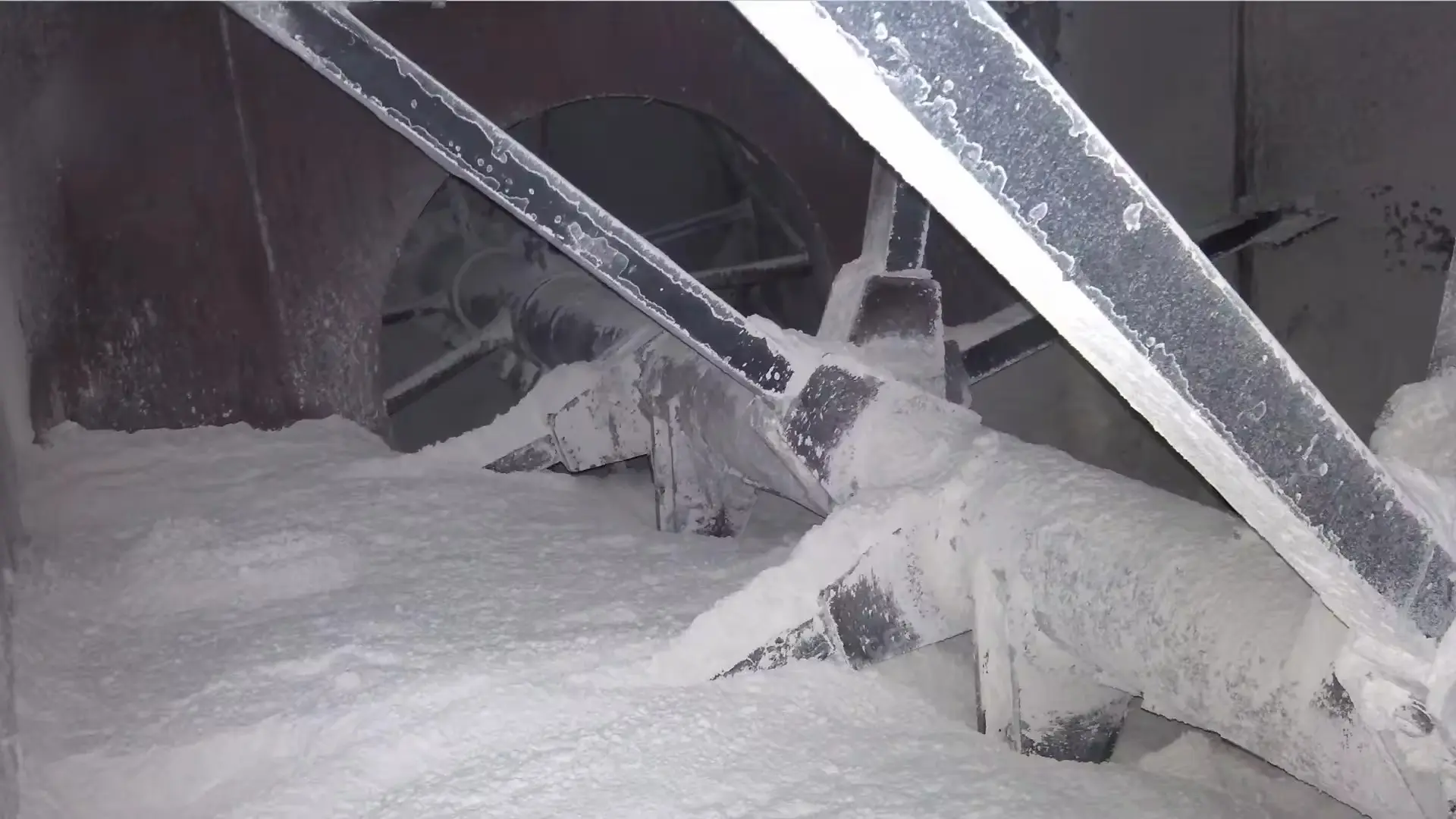

Here are some photos of the project, click on the small picture to view the large picture.
Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.
Feeding System：
Vibrating feeder and belt conveyor
Storage hopper with weighing system
Product Sizing & Collection：
High-efficiency turbine classifier for precise particle size cut-point (D97)
Size can be quickly set to 5, 10, 15, or 20 microns via control panel
Pulse jet baghouse dust collector for product recovery (>99.9% efficiency)
Ultra Fine Grinding Mill System：
Main Equipment: Vertical Roller Mill with integrated dynamic classifier
Grinding Principle: Bed grinding with high pressure
PLC control system for precise parameter setting
Product Handling & Packing：
Final product pneumatic conveying system
Automatic valve bag packing machine or big bag station
