Raw Ore: Porphyry Gold-Copper Ore
Gold Grade: 0.8-1.5 g/t
Copper Grade: 0.6-0.9%
Final Products: Gold Ingot: 99.5% purity/Copper Concentrate: Cu≥25%, Au≥15g/t
Recovery Rates: Gold: 92% / Copper: 90%
Capacity: 2500 tons per day
Work Scope: EPC + Flotation Optimization

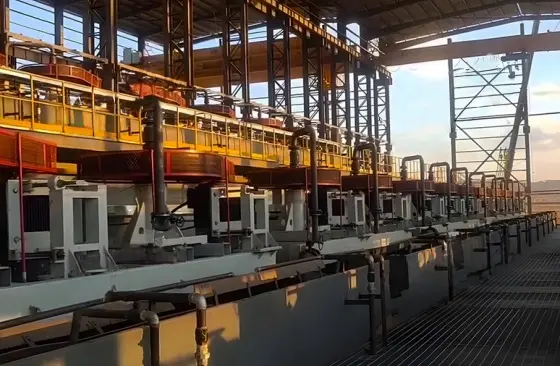

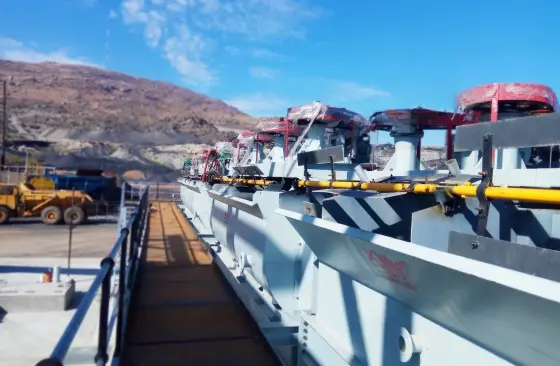

Here are some photos of the project, click on the small picture to view the large picture.
Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.
3-stage crushing to 12mm
Copper flotation circuit: Rougher/scavenger flotation with xanthate；2-stage cleaning + regrinding
Copper concentrate filtration (moisture≤10%)
Cyanide destruction + tailings dry stacking
Ball mill grinding to 75μm (P80)
CIL for flotation tailings: 24-hour cyanide leaching；Activated carbon adsorption
Gold elution & electrowinning
