2500 TPD Lithium Spodumene Flotation Plant with Hydrocyclones in Australia

Raw Ore: Lithium Spodumene Ore

Li₂O Grade: 1.45%

Concentrate Grade: 6.20%

Recovery Rate: 81.5%

Capacity: 2500 tons per day

Work Scope: EPC (Engineering, Procurement, Construction)

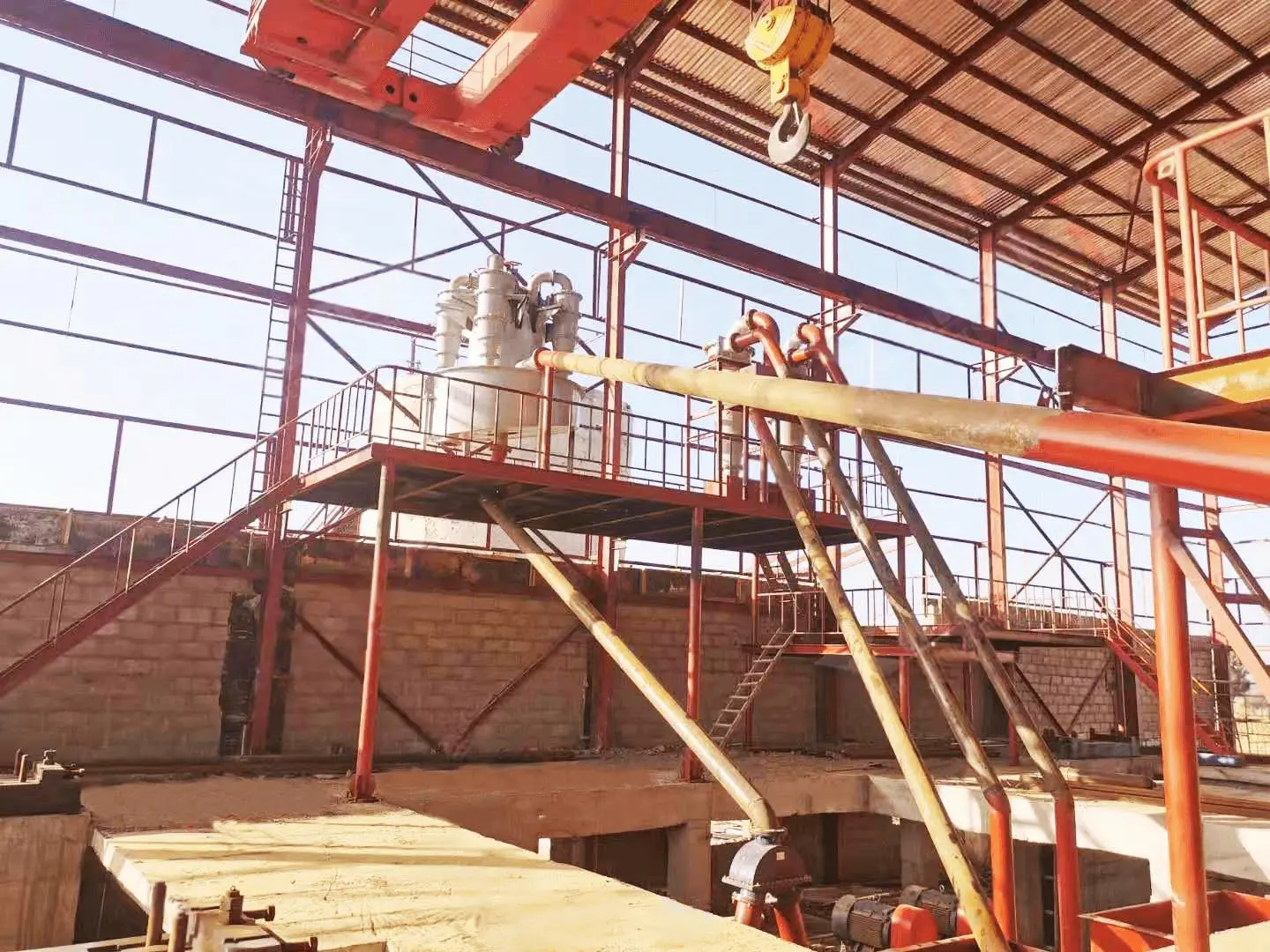

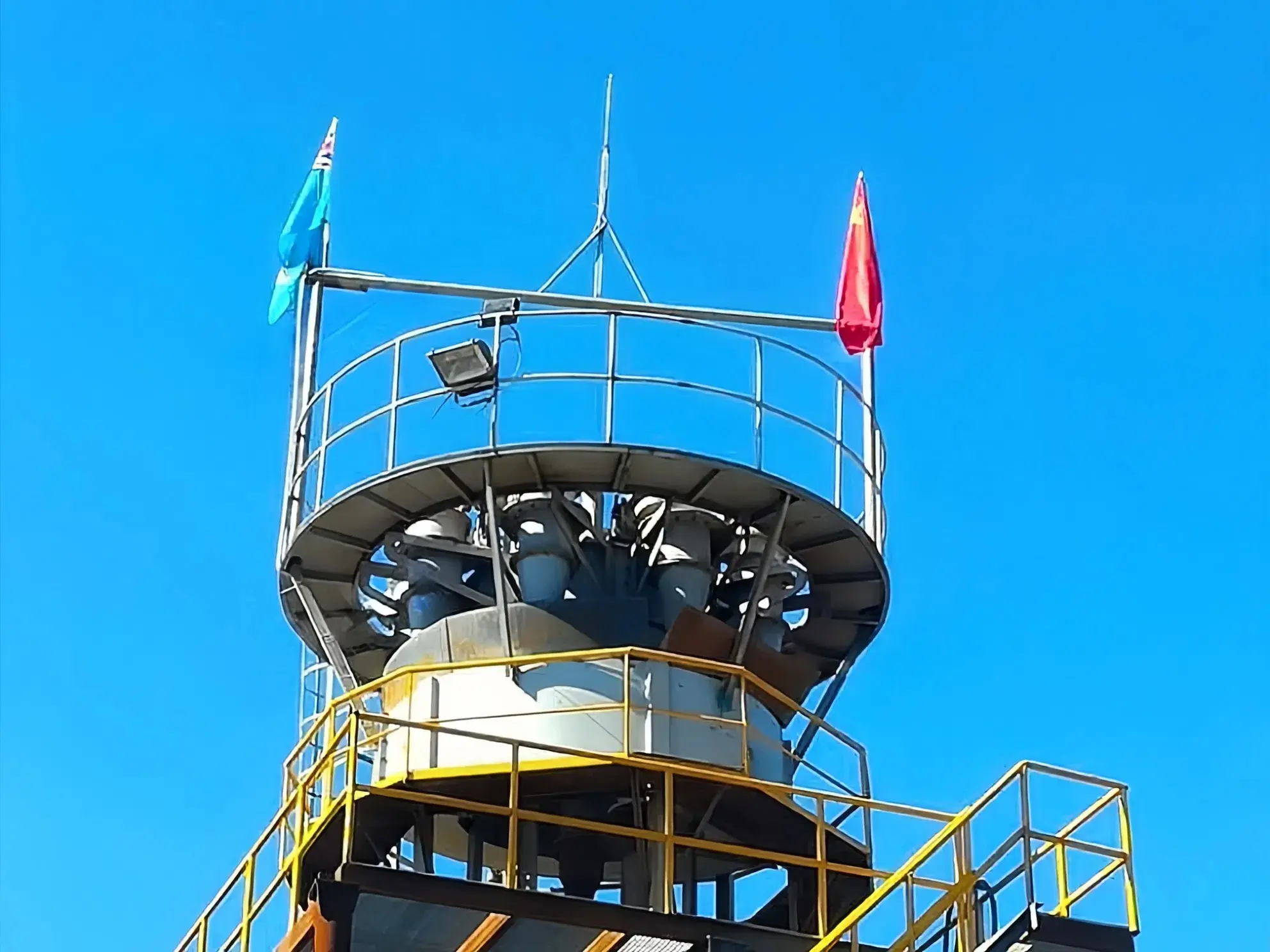

Here are some photos of the project, click on the small picture to view the large picture.

Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.

3 stage crushing to reduce ore size below 12 mm

Flotation circuit:

1 stage rougher flotation
2 stage cleaner flotation
2 stage scavenger flotation

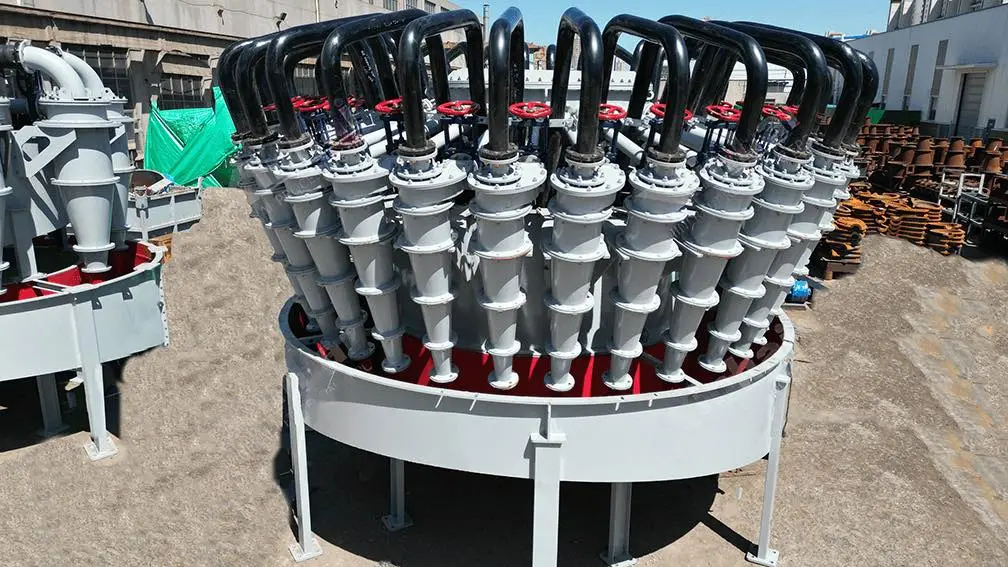

Hydrocyclones used for pre-concentration and desliming to enhance flotation efficiency

Concentrate dewatering:

Hydrocyclone-assisted grinding classification:

2 stage ball mill grinding in closed circuit with hydrocyclones to achieve target particle size of 74 μm (D85)
Hydrocyclones ensure efficient classification and improve grinding circuit stability

Tailing handling: Tailings pumped to tailing pond after thickening

Key Features Highlighting Hydrocyclone Efficiency:

Hydrocyclones in grinding circuit reduce over-grinding and improve energy efficiency.
Pre-flotation desliming with hydrocyclones enhances Li₂O recovery and concentrate grade.
Compact design and low maintenance of hydrocyclone systems contribute to overall plant availability and cost-effectiveness.
