2800 TPD Copper-Bearing Gold Ore Beneficiation Plant in Kazakhstan

Raw Ore: Sulfide Gold-Copper Ore (Au-Cu ratio: 1:1.2)

Gold Grade: 2.8 g/t

Copper Grade: 0.85%

Final Products: Gold Ingot (≥96% purity); Copper Concentrate (Cu ≥25%)

Recovery Rates: Gold: 94.5% (overall); Copper: 92%

Capacity: 2800 tons per day

Work Scope: Mineralogy Study, Flowsheet Design, Key Equipment Supply & Automation

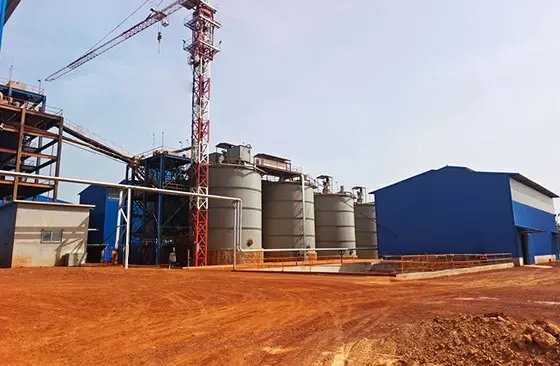

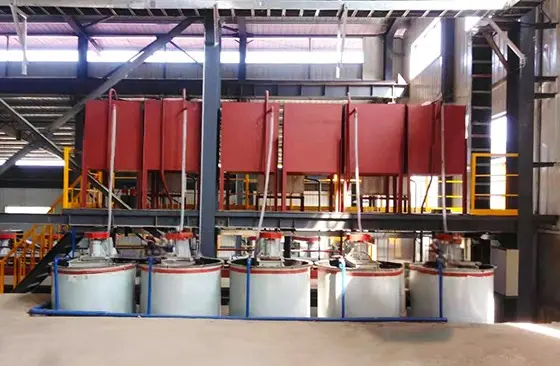

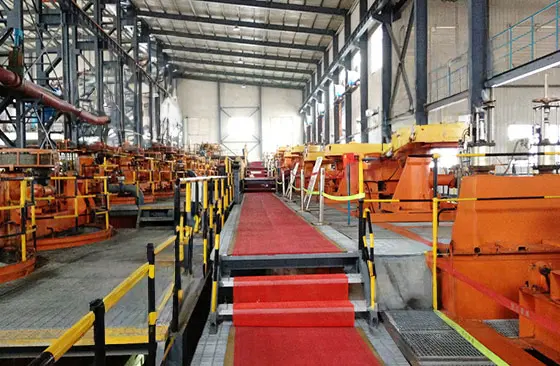

Here are some photos of the project, click on the small picture to view the large picture.

Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.

Pre-Concentration & Selective Crushing:

XRF Sensor-Based Sorting: Pre-reject 25% waste rock (waste grade Au<0.3 g/t)
SABC Circuit: Semi-autogenous mill + Ball mill (P80: 75 μm)

Oxygen-Enriched CIL for Refractory Gold:

O₂-enhanced leaching (DO ≥12 ppm): Leaching time reduced to 16 hours (vs. 24 hrs conventional); Cyanide consumption lowered by 35%
Cyanide detoxification: O₃ oxidation (residual CN⁻ <0.5 ppm)

Zero Liquid Discharge (ZLD) System:

Differential Flotation

Copper Priority Flotation: Rapid flotation for native copper → Copper concentrate (Au: 18 g/t)
Gold Sulfide Flotation: Collector EPX-1 for selective gold-pyrite enrichment → Gold concentrate (Au: 42 g/t)
