300 TPD Modular Alluvial & Hard Rock Gold Processing Plant

Modular Crushing & Screening Unit:

• Equipment: Mobile Jaw Crusher, Cone Crusher, Vibrating Screen (All mounted on skid frames).
• Function: Processes hard rock ore to below 12mm.

Grinding & Classification Module:

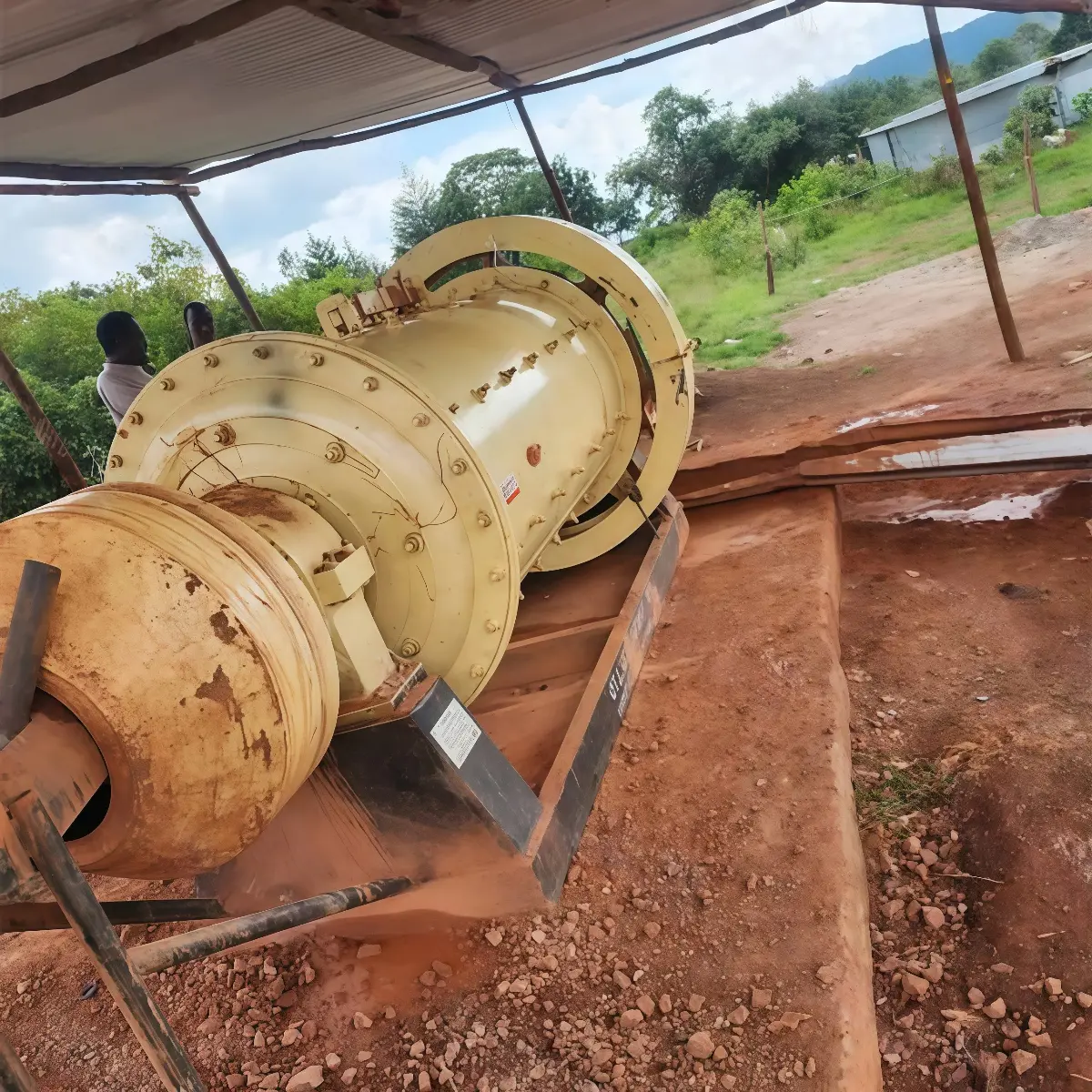

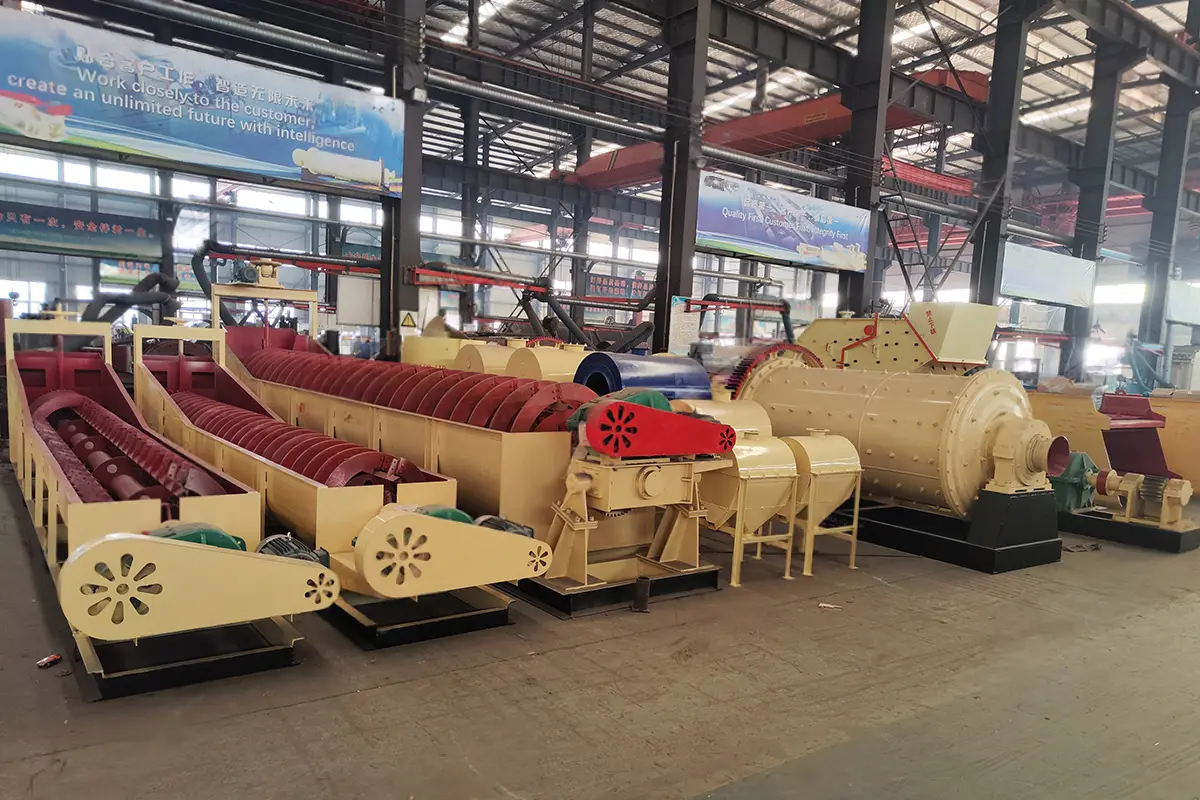

• Equipment: Ball Mill in closed circuit with a Hydrocyclone Cluster.
• Function: Grinds gravity tailings/hard rock ore to optimal liberation size (e.g., 75μm).

Auxiliary & Environmental System:

• Equipment: Cyanide Detoxification Unit (INC/SO2-Air process), Water Recycling System, Slurry Pumps, Thickener, Filter Press, Diesel/Power Generator Set.
• Function: Ensures environmental compliance, water management, and plant utility.

Flexible & Hybrid Process Flow: Capable of handling both alluvial (placer) and hard rock gold ores through a configurable combination of gravity and cyanidation circuits. Feed type can be switched with minimal adjustment.

High Recovery & Robust Operation: Integrates multiple gold recovery methods (gravity + CIL) to maximize overall recovery across a wide range of gold particle sizes. Equipment selected for ruggedness and ease of maintenance.

Gravity Concentration & Coarse Gold Recovery Circuit:

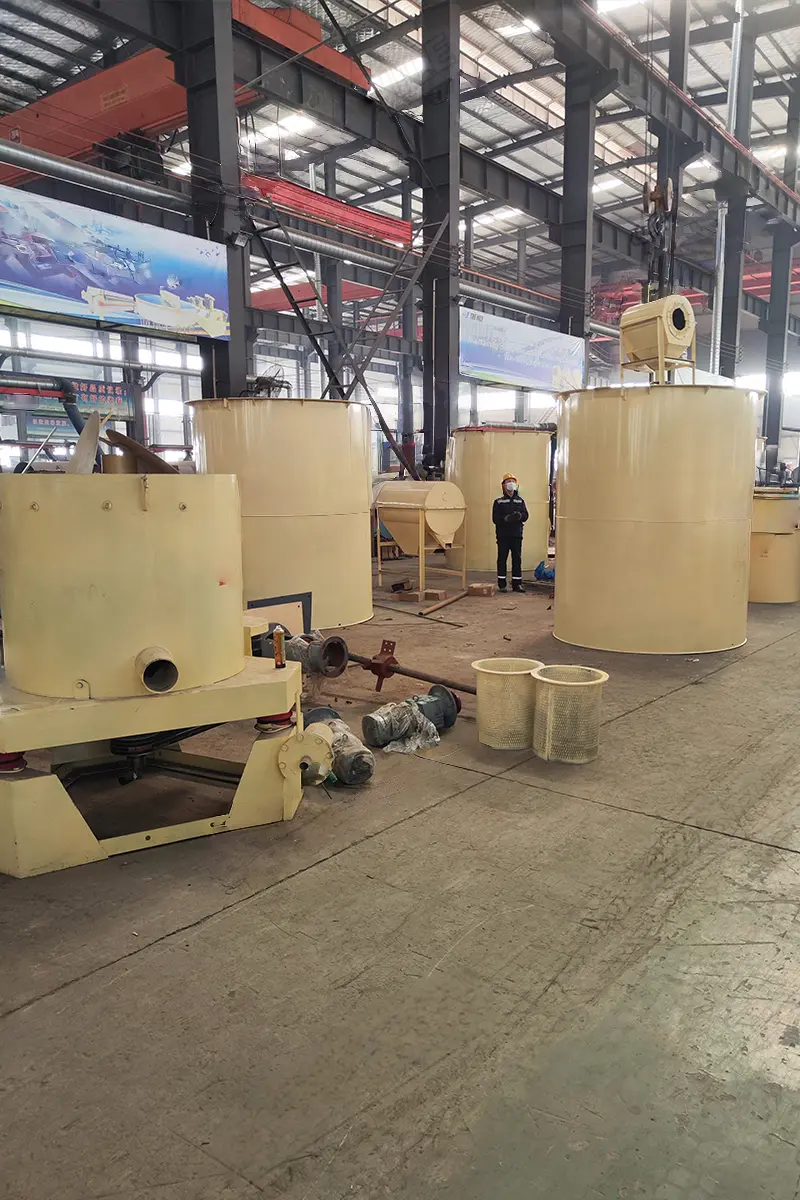

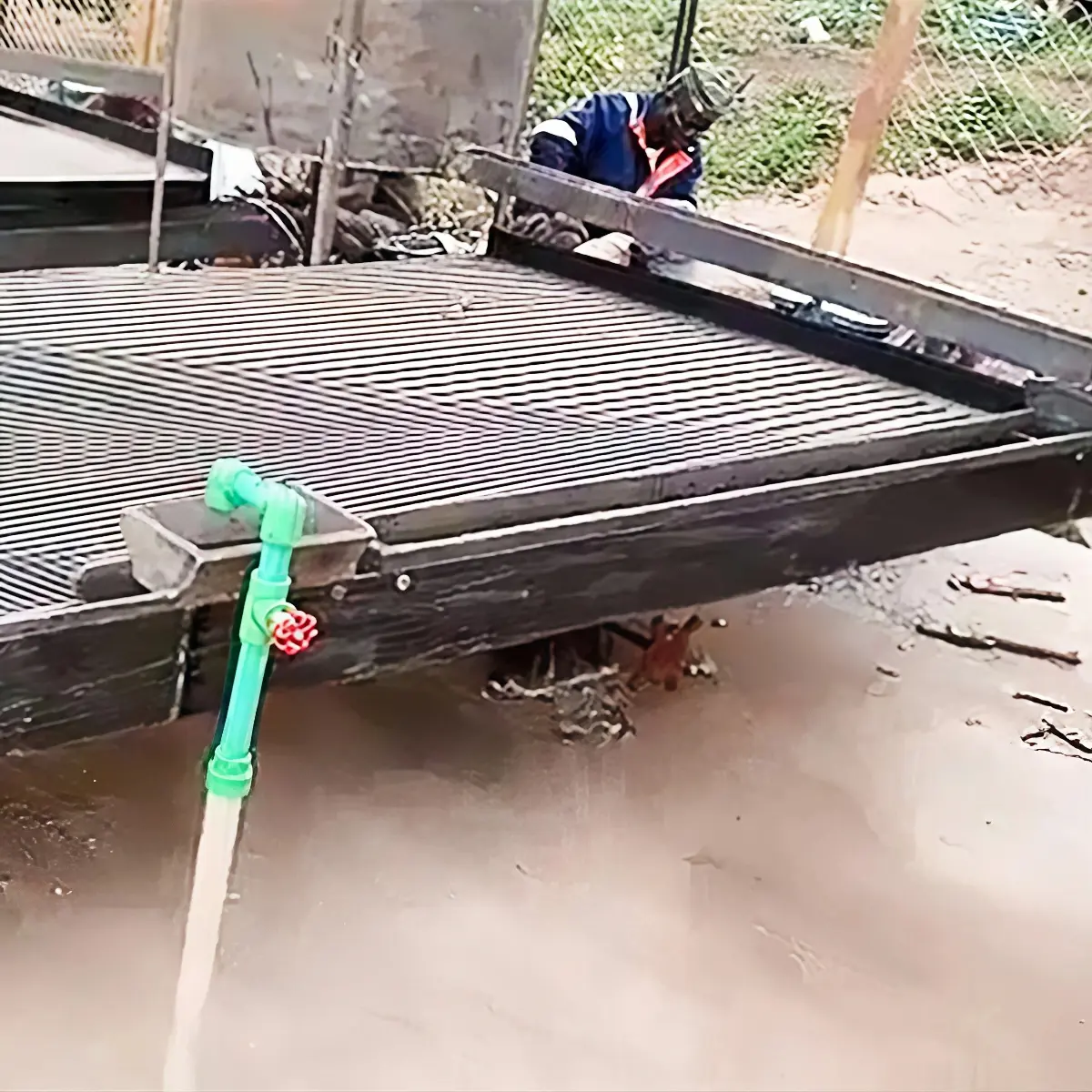

• Equipment: Trommel Screen/Washing Drum, Jig Separator, Centrifugal Concentrator (Knelson/Falcon type), Shaking Table.
• Function: Recovers free coarse and fine gold from alluvial feeds and crushed hard rock ore.

Cyanidation & Gold Extraction Module:

• Equipment: CIL (Carbon-in-Leach) Tanks Series with dual-purpose agitated leaching and adsorption, Gold-loaded Carbon Elution & Electrowinning System, Gold Smelting Furnace.
• Function: Dissolves and recovers fine gold from ground pulp; produces doré bar.

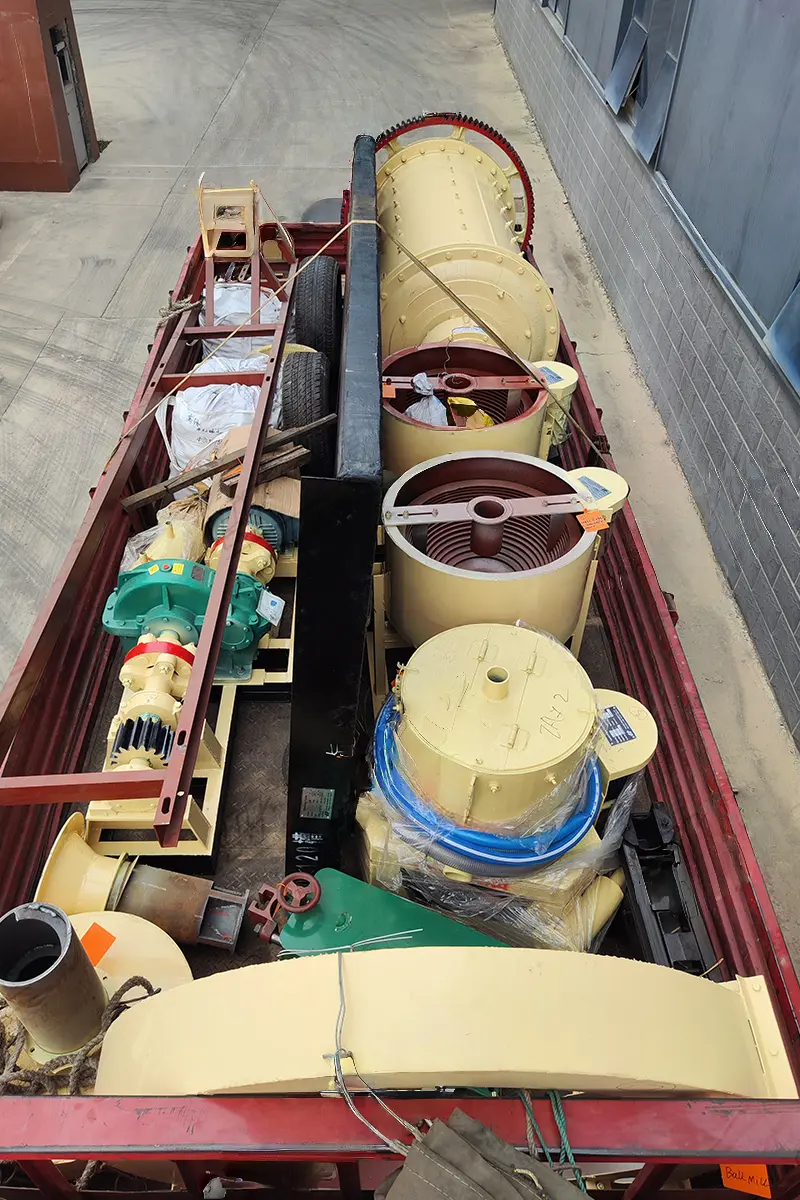

Modular & Containerized Design: Major equipment pre-assembled on skids or within shipping containers, drastically reducing site installation time and cost. Ideal for remote or difficult-to-access sites.

All-in-One Solution: From crushing to smelting, the package includes all necessary core equipment and auxiliary systems, providing a complete, ready-to-operate processing plant solution.
