Raw Ore: Sulfide-Refractory Gold Ore (25% Sulfide)
Gold Grade: 2.8-4.1 g/t
Final Product: 99.99% Gold Ingot
Gold Recovery Rate: 93.5% (CIL Yield: 91.2% + Gravity: 2.3%)
Capacity: 3000 tons per day
Work Scope: EPC + 2-Year Optimization

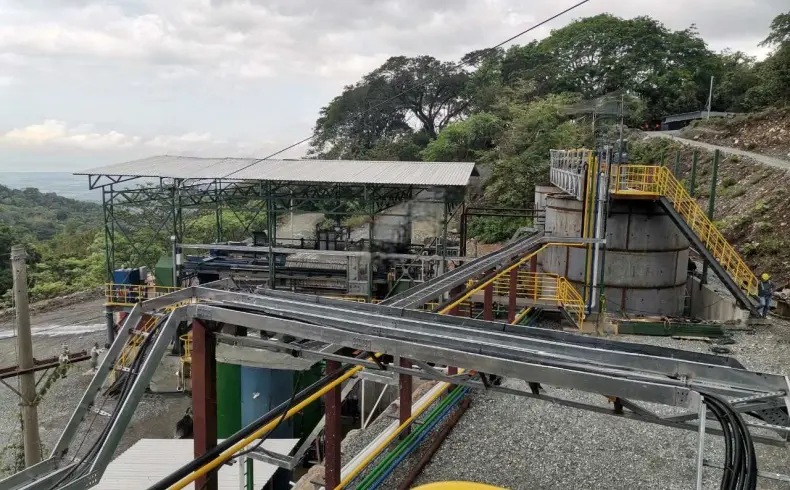

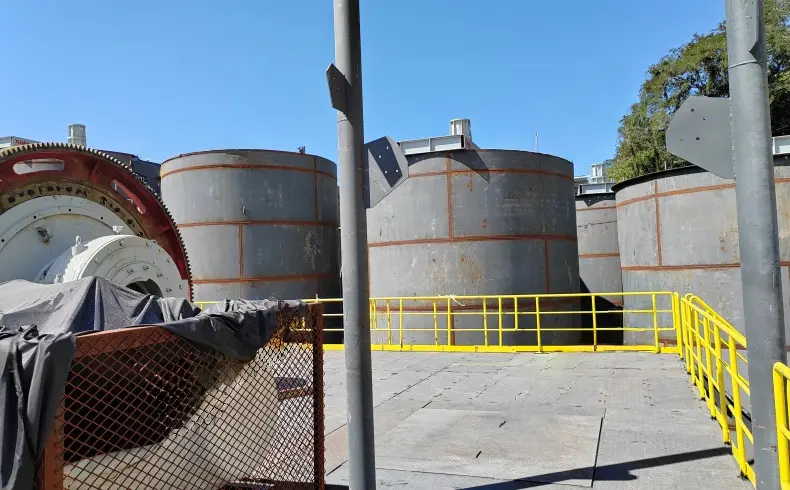

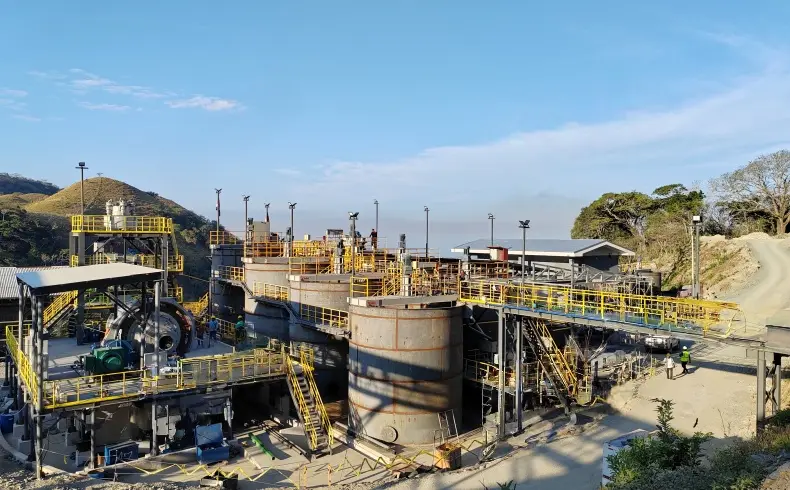

Here are some photos of the project, click on the small picture to view the large picture.

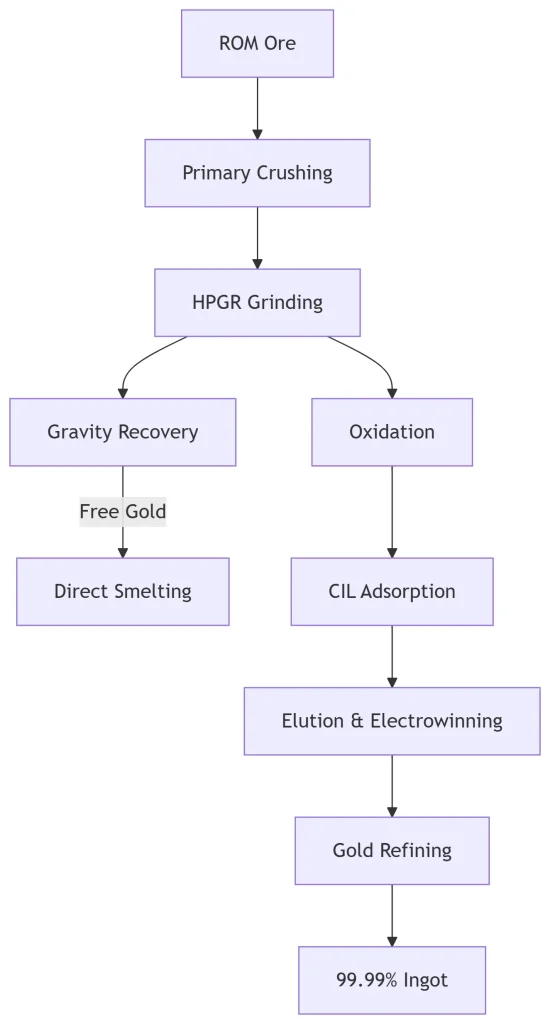

Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.
Crushing: 3-stage to ≤12mm (SAG mill feed optimization)
Grinding: SAB circuit (SAG + Ball mill → P80=75μm)
Carbon Stripping: AARL process (98.5% stripping efficiency)
Pre-concentration: XRT sorting discard 15% waste (Gold loss <0.5%)
Gravity Recovery:3x Knelson KC-XD72 (Recovery: 52% of free gold)
Electrowinning: 94% current efficiency → Cathode slime Au≥40%
