Raw Ore: Oxide and Transition Gold Ore
Gold Grade: 3.5 g/t
Gold Recovery Rate: 93%
Final Product: Gold Doré Bar
Gold Ingot Purity: ≥ 92%
Capacity: 400 tons per day
Work Scope: Engineering Design, Equipment Supply, Installation Supervision, and Commissioning Support

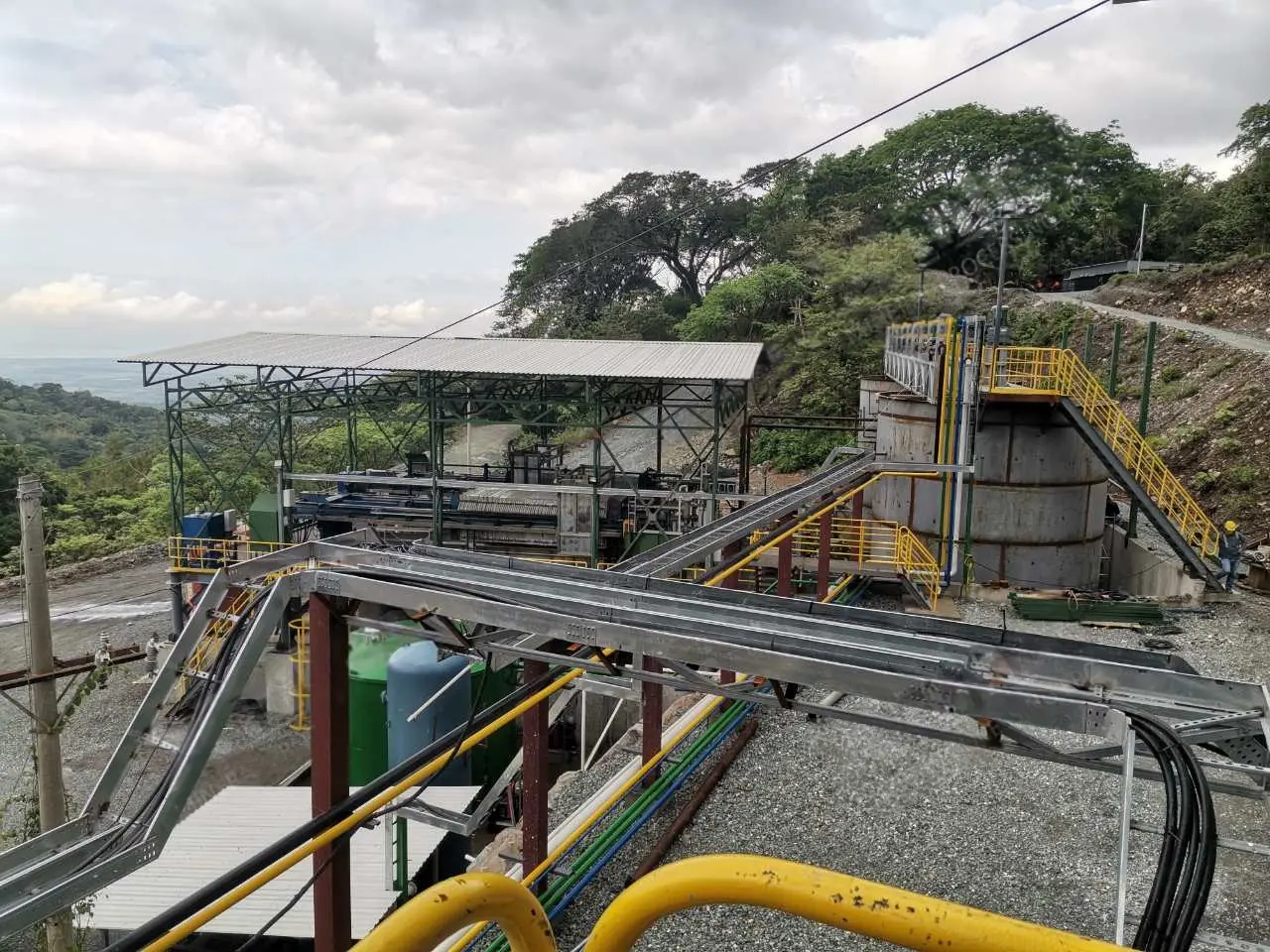

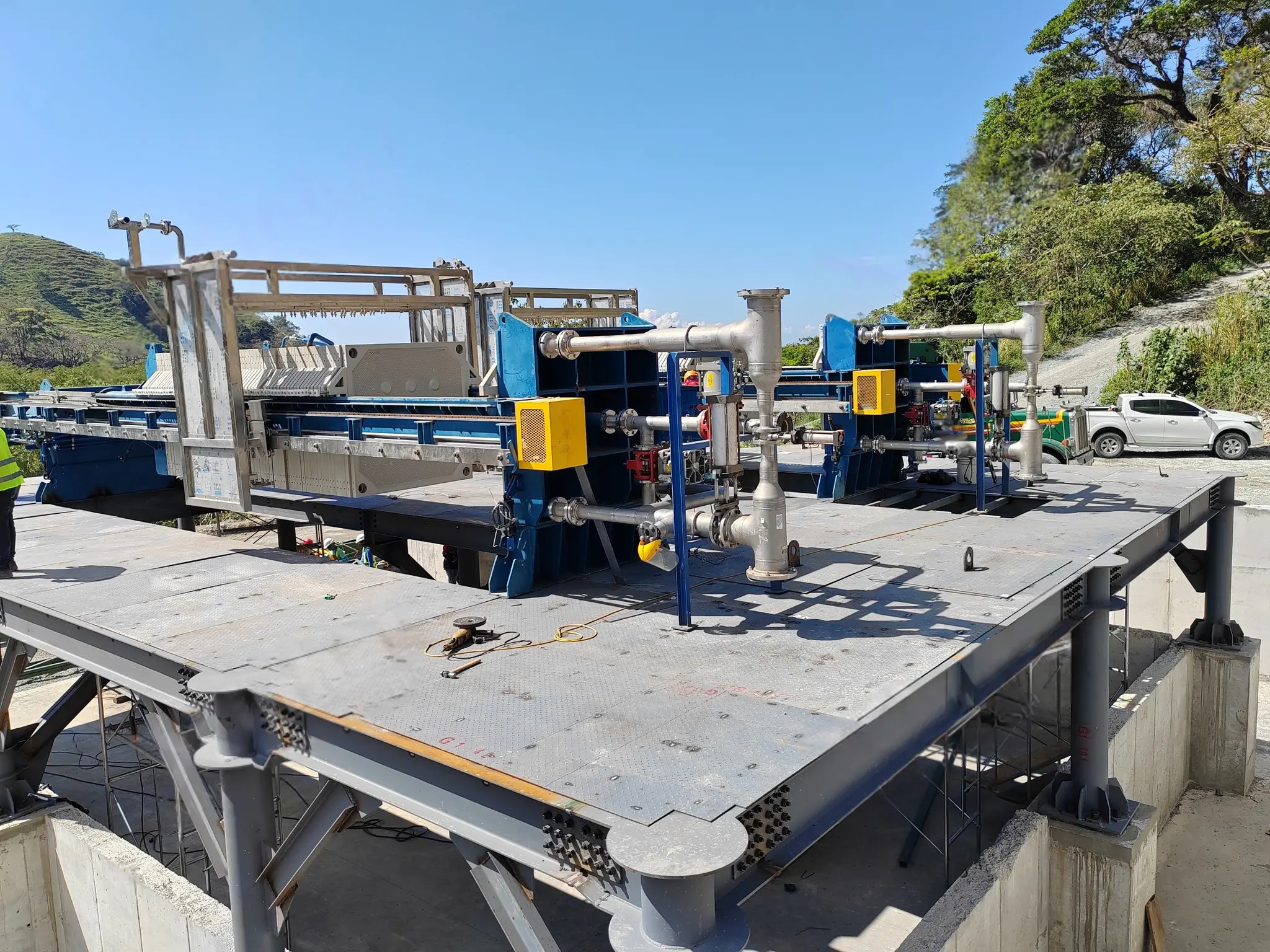

Here are some photos of the project, click on the small picture to view the large picture.
Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.

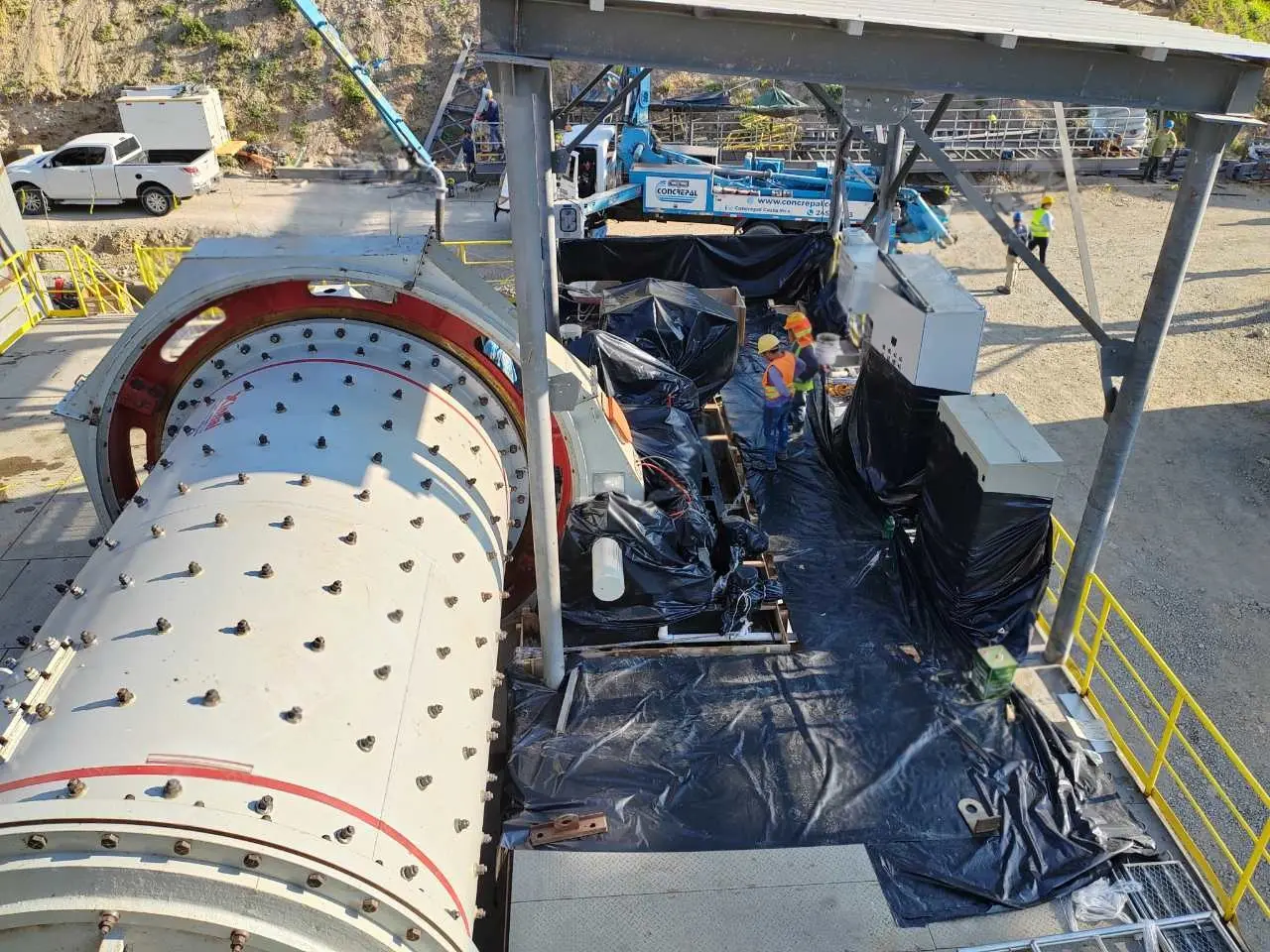

Crushing & Grinding: Two-stage crushing (Jaw Crusher + Cone Crusher) to reduce ore size below 15 mm. The crushed ore is then ground in a ball mill operating in closed circuit with a hydrocyclone to achieve a target grind size of 80% passing 75 microns.
Carbon Screening & Handling: Interstage screens (Johnson-type) at each tank separate the loaded carbon from the slurry. Loaded carbon is advanced to the elution circuit, while barren slurry reports to the tailings disposal system.
Gold Smelting: The gold-loaded cathodes are rinsed and smelted in an induction furnace at 1200°C with fluxes to produce a high-purity gold doré bar.
Tailing Disposal & Cyanide Detoxification: The barren tailings are treated in a cyanide destruction unit (using the SO2/Air process) to meet environmental standards. The detoxified tailings are then pumped to a secure tailings storage facility (TSF).

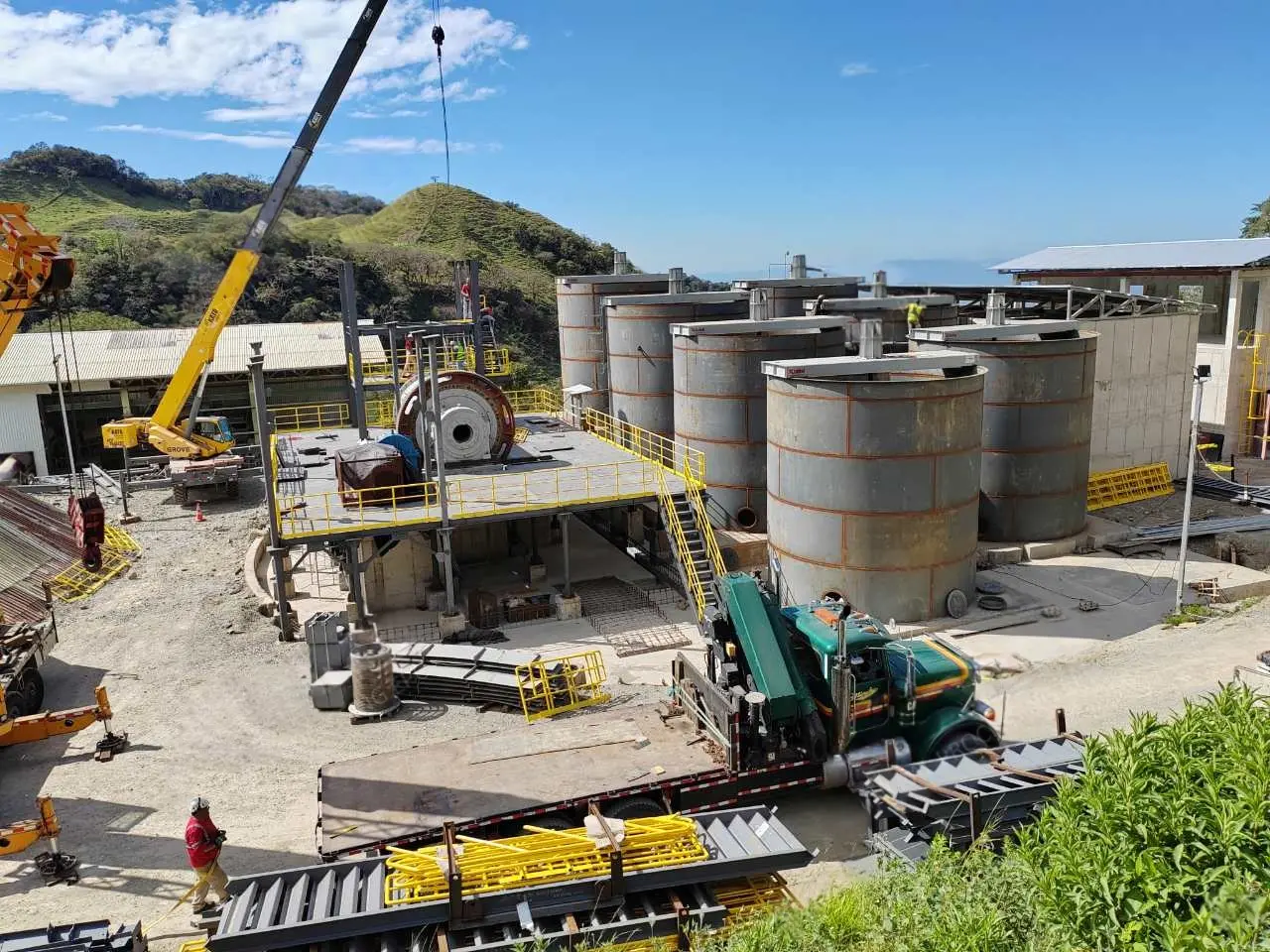

Leaching & Adsorption (CIL): The ground ore slurry is fed into a series of 8 mechanically agitated CIL tanks. Sodium cyanide (NaCN) is added for gold dissolution, while lime (CaO) maintains the slurry at an optimal pH of 10.5-11.0. Activated carbon is added directly to the tanks, allowing simultaneous leaching and adsorption of gold onto the carbon over a total retention time of 30 hours.
Elution & Electrowinning: Loaded carbon is acid-washed and then treated in a pressurized Zadra-style elution column to strip the gold. The resulting pregnant solution is passed through electrowinning cells where gold is deposited onto steel wool cathodes.
Carbon Regeneration: Stripped carbon is thermally regenerated in a rotary kiln to restore its activity before being recycled to the CIL circuit.
