Raw Ore: Mixed Oxide-Sulfide Copper Ore (Cu:1.8%, Co:0.15%)
Copper Concentrate: Cu≥25%, Co≥0.8%
Cobalt Concentrate: Co≥5%, Cu≤1.5%
Recovery Rate: Cu 92%, Co 85%
Capacity: 4500 tons per day
Work Scope: Flotation Circuit Supply & Commissioning

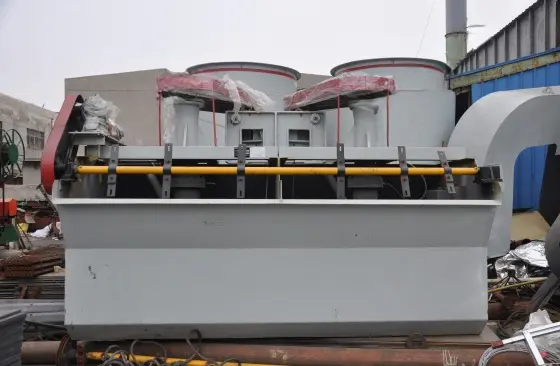

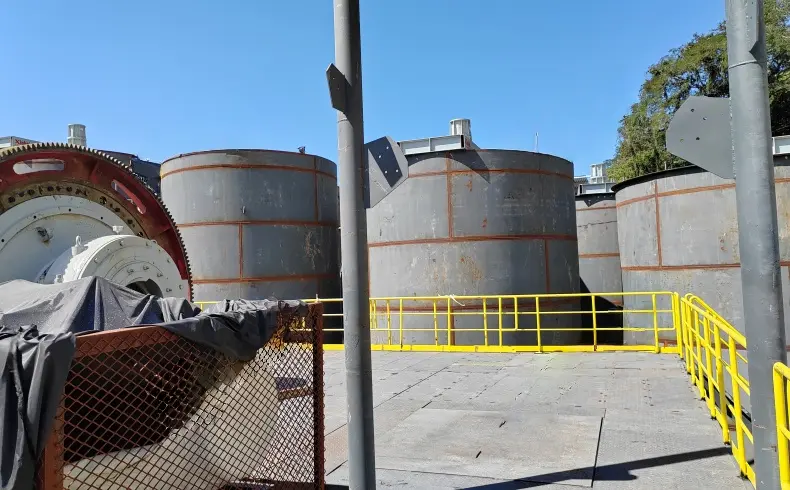

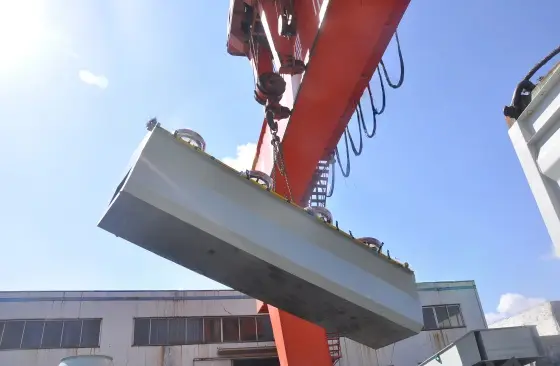

Here are some photos of the project, click on the small picture to view the large picture.
Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.
2-stage ball mill grinding to P80=75μm
12x 200m³ OK-200 SmartCell™ flotation units
3-stage cleaning with regrinding of middlings
Dithiophosphate collector (Aero 3477) in 8x 150m³ cells
Concentrate thickening → Filter press dewatering
pH adjustment to 9.2 (lime) + Sodium sulfide activation
Xanthate collector (Z-200) + Frother (MIBC)
Sulfidization of oxide minerals (NaHS dosing)
Copper conc. moisture ≤10%, Cobalt conc. ≤12%
