Raw Ore: Alluvial Coltan (Tantalite-Columbite) with Cassiterite
Ore Grade: Ta₂O₅: 0.025-0.04%; Nb₂O₅: 0.02-0.035%; SnO₂: 0.1-0.3%
Final Products: Tantalum Concentrate (Ta₂O₅ ≥28%) ;
Niobium Concentrate (Nb₂O₅ ≥22%); Tin Concentrate (Sn ≥60%)
Recovery Rate: Tantalum: 84%; Niobium: 82%; Tin: 90%
Capacity: 50 tons per hour(500 TPD)
Work Scope: Compact Plant Supply, Installation & Operator Training

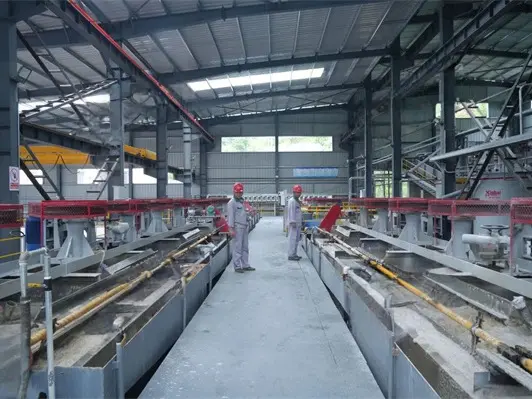

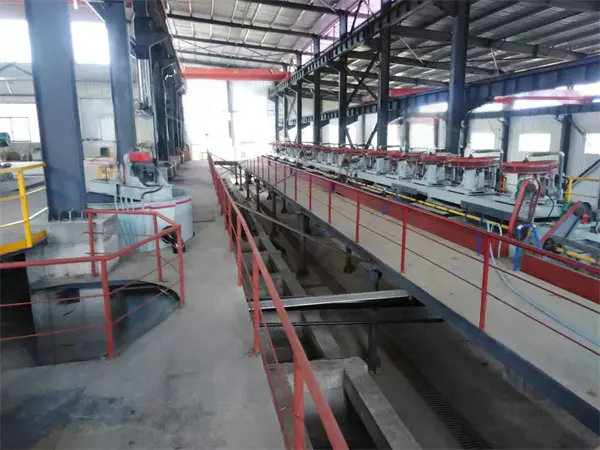

Here are some photos of the project, click on the small picture to view the large picture.
Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.

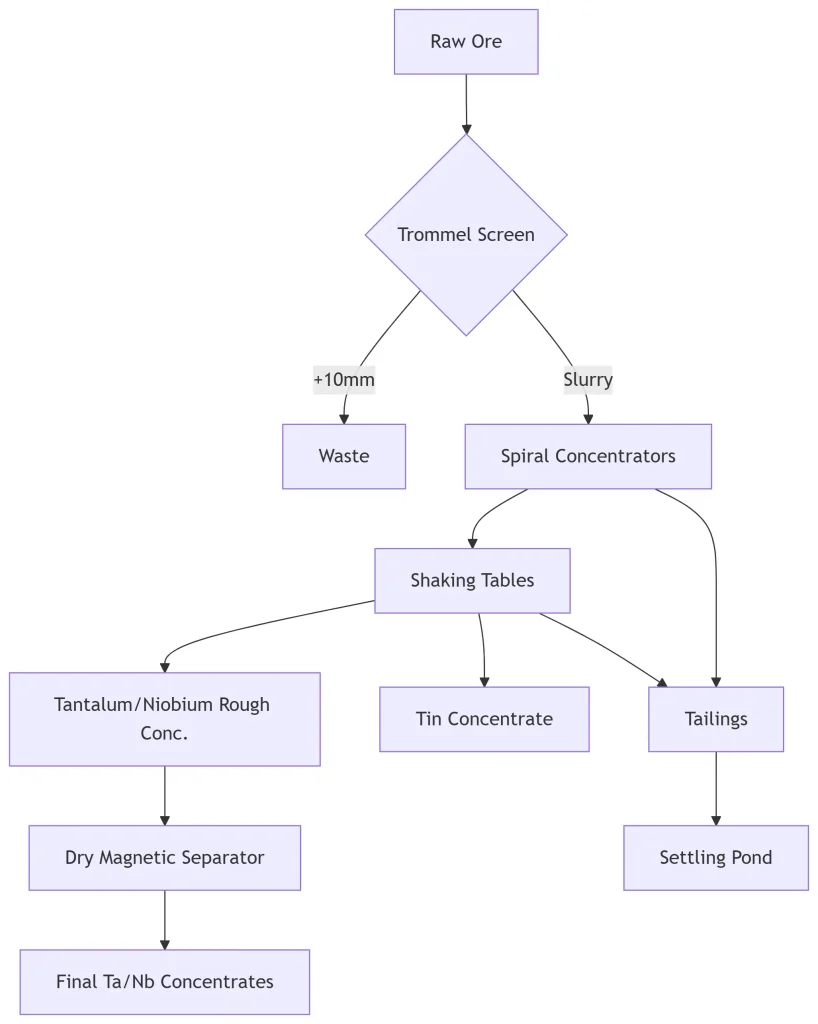

Feed Preparation：Mobile trommel screen (10mm aperture) → Clay scrubber
Targeted Separation：
Product Handling：Rotary dryer → Manual bagging (25kg moisture-sealed bags)
Gravity Concentration：
Tailings & Radiation Control：
