500 TPH Placer Gold Gravity Plant in Mexico

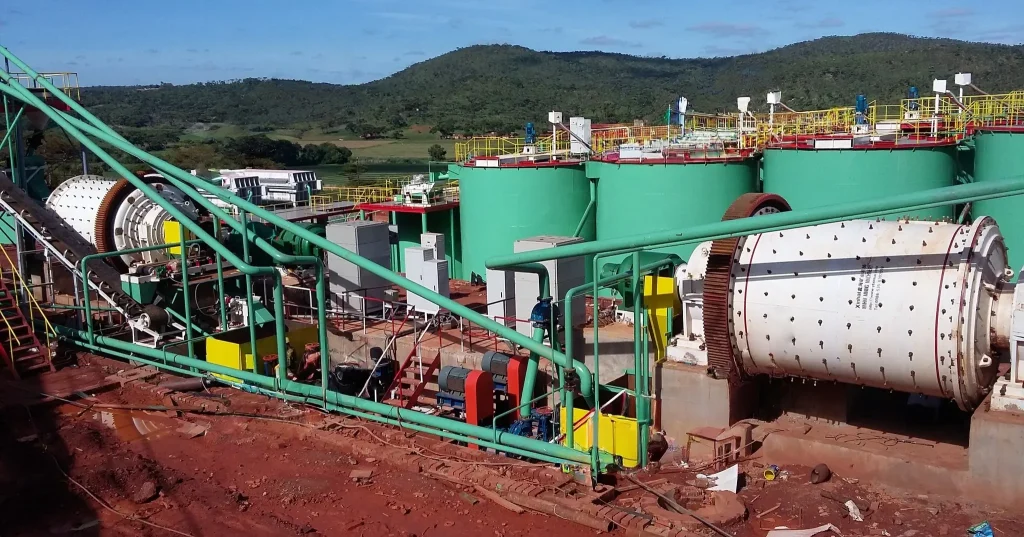

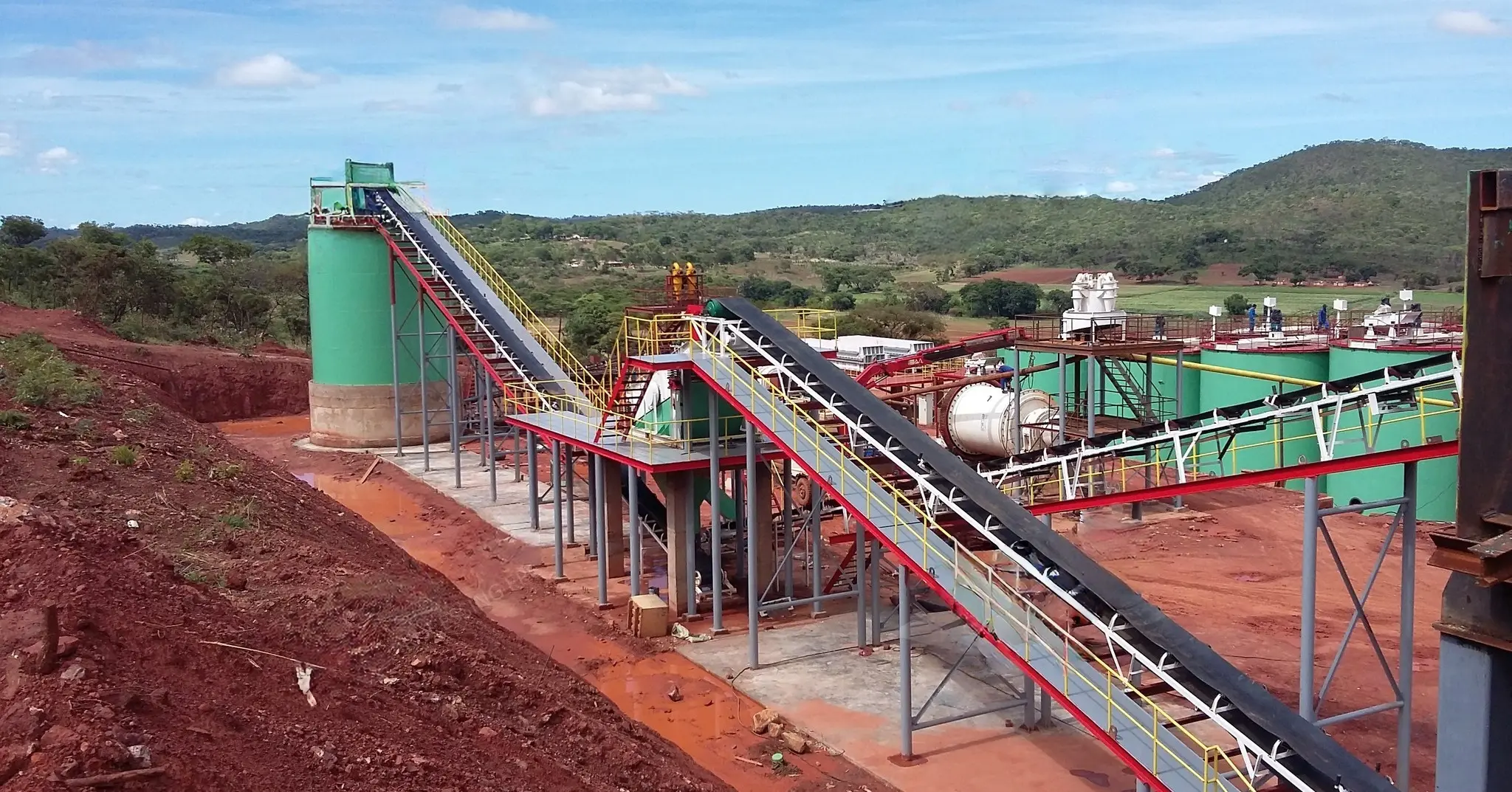

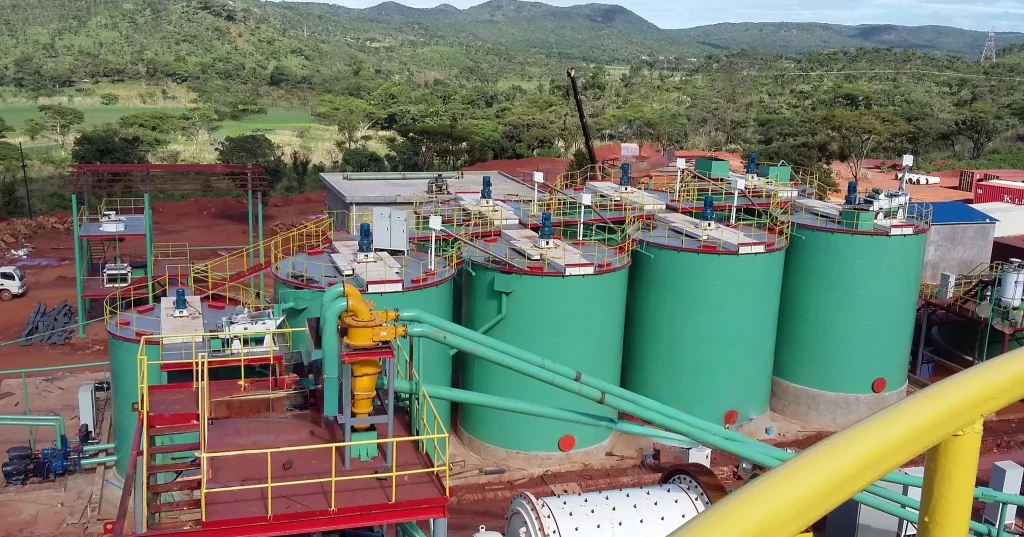

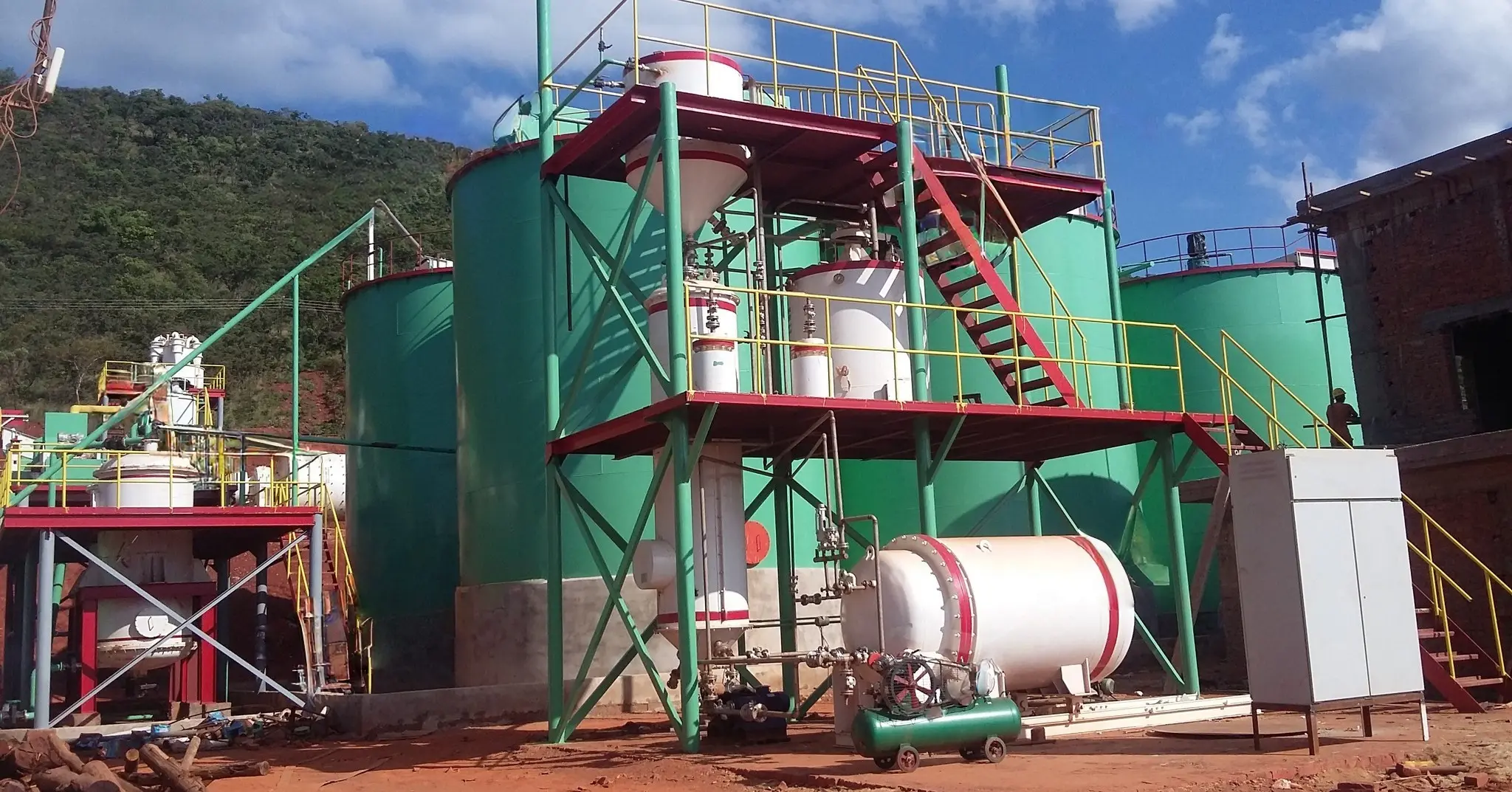

Case site photos

Processing Way

  • 650×2300 Vibrating Feeder (316L Stainless Steel for salt corrosion resistance)
  • Φ2.8×5m Rotary Scrubber with anti-clay blades + 70bar spray
  • Overbelt Magnet removes ferrous minerals before scrubbing
  • Grizzly Screen removes >150mm boulders
  • Primary: Hungarian Riffles (10° slope, 3m length)
  • Secondary: Vortex Matting with mercury-free traps
  • Automated Gold Room with CCTV monitoring
  • 3-stage settling pond → Sand filter → UV sterilizer
  • Spiral concentrator recovers residual heavy minerals
  • Geo-membrane lined storage (NOM-155 compliance)
  • Rainwater Harvesting (monsoon season utilization)
  • 3-Deck High-frequency Vibrating Screen (12/3/1mm apertures)
  • 12mm NIR Sensor Gold-quartz vein
  • 3-12mm EMS Separator Magnetite gold lock
  • 7-S Shaking Table with Mexican mineral database presets:
  • Stroke: 8-15mm (variable frequency drive)
  • Wash water: 0.2-0.5m³/h (auto-adjusted by AI vision)
