Carbon-Slag Cryolite Recovery Project Inner Mongolia, China

Raw Material: Carbon-slag from aluminum electrolysis

Feed Grade: 15–20% Cryolite content

Final Product: Recycled Cryolite ( purity ≥ 92% )

Project Capacity: 3 tons per hour ( stably achieving 150 tons per day )

Project Type: Circular Economy & Resource Recovery

Work Scope: Process Design, Equipment Supply, Installation Guidance, On-site Optimization

Here are some photos of the project, click on the small picture to view the large picture.

Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.

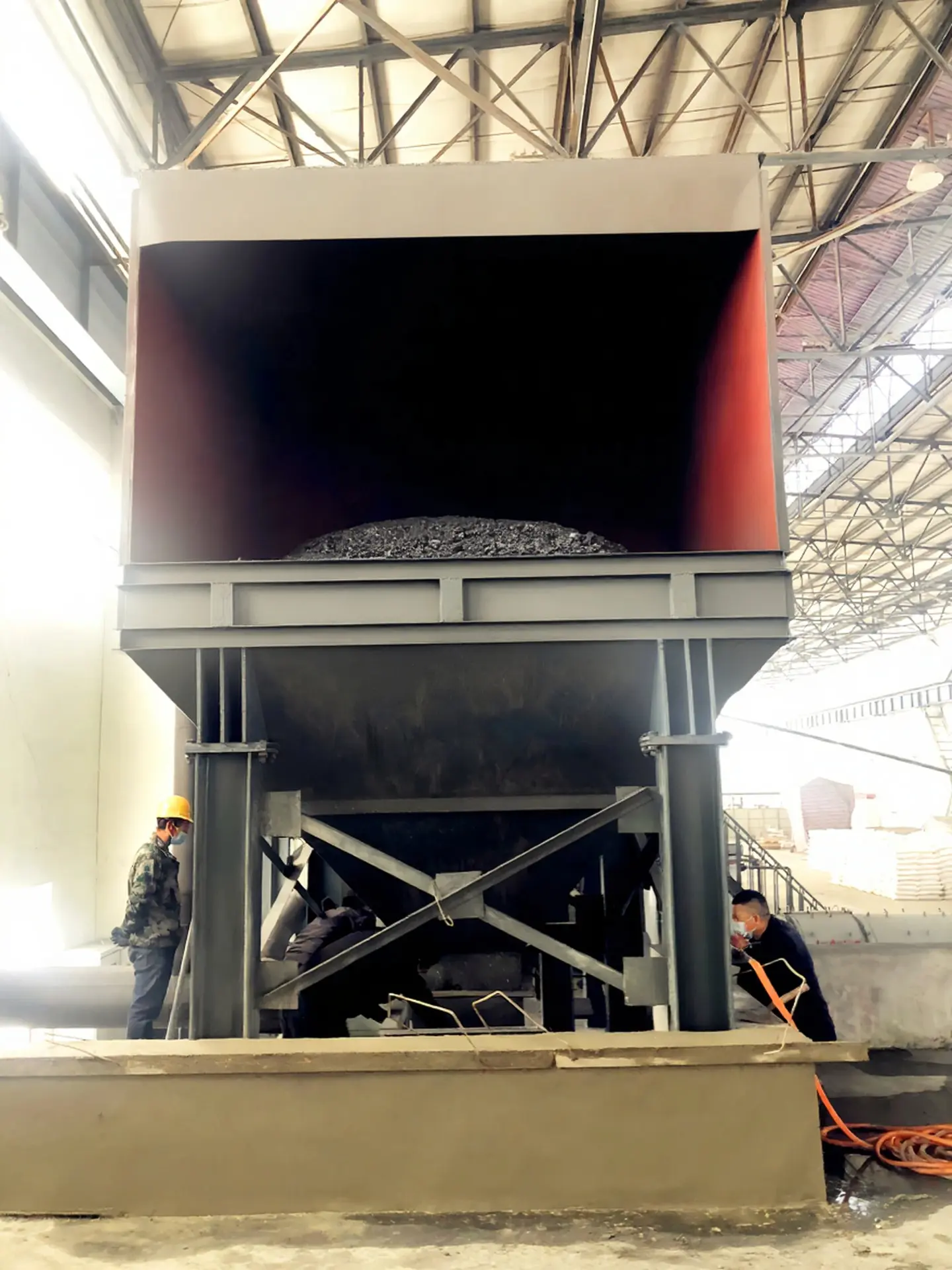

Crushing & Screening System – Customized upgrade to handle variable material conditions and improve liberation of cryolite from carbon-slag

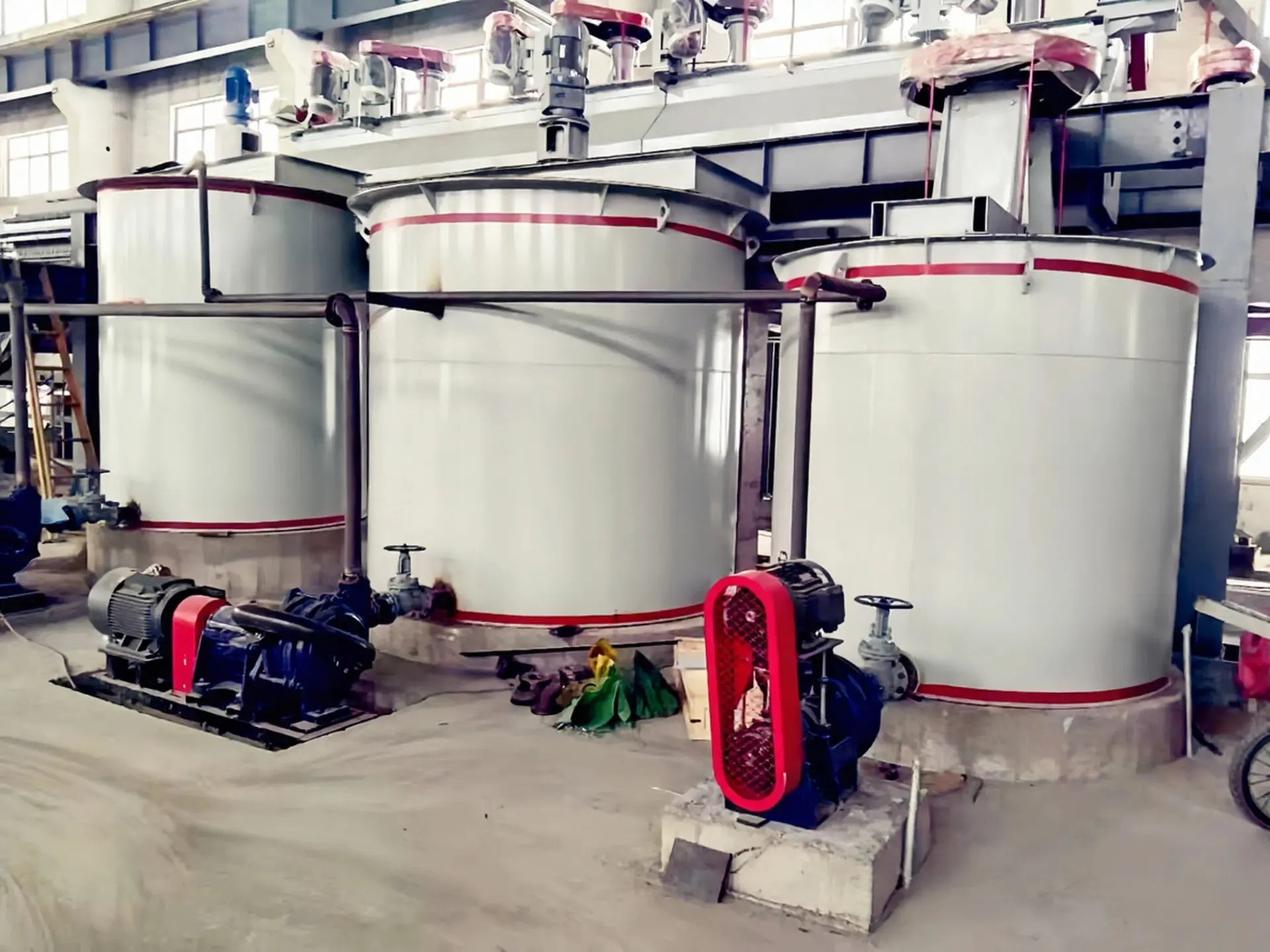

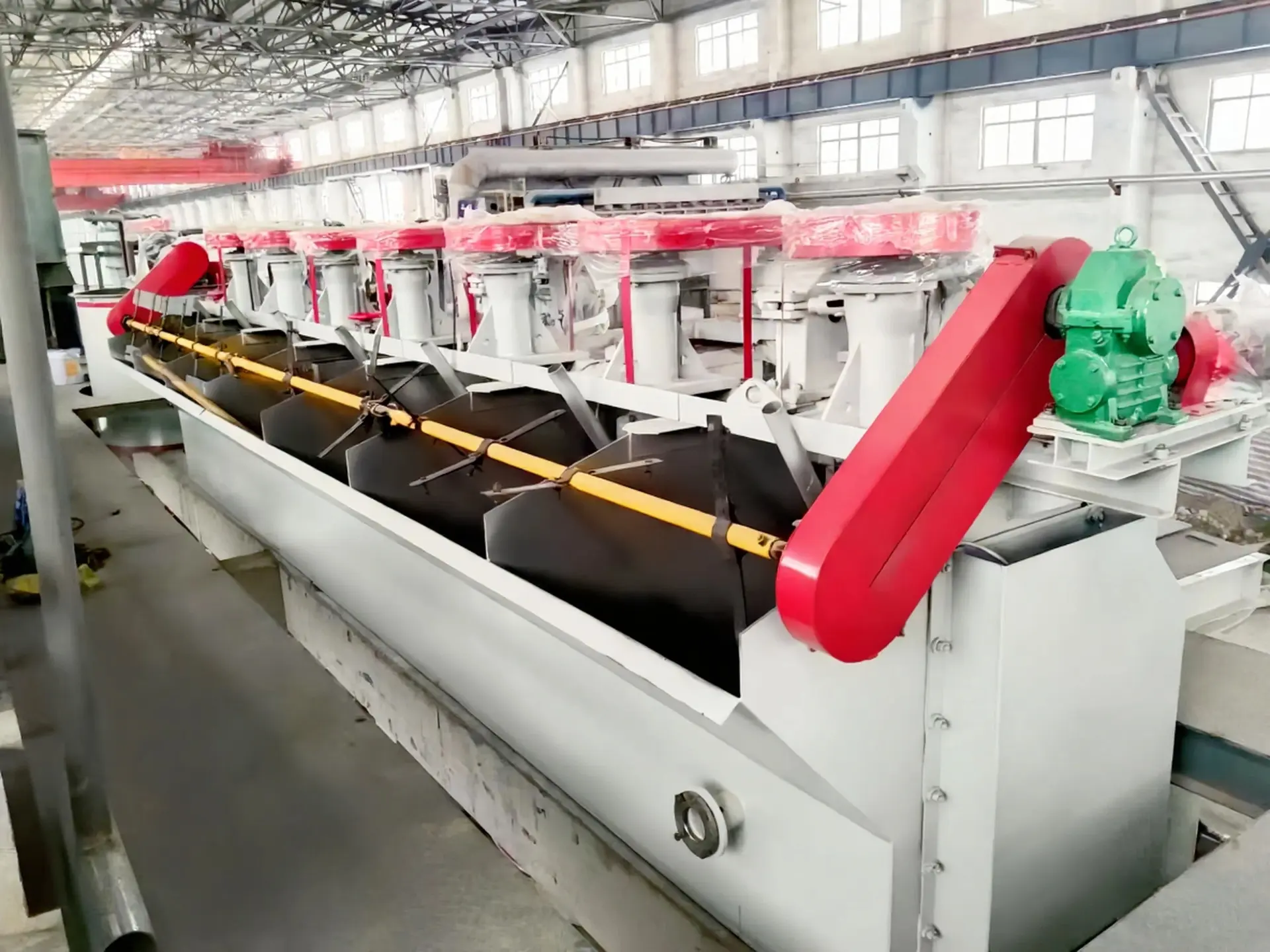

Flotation System – 1 stage rougher, 2 stage cleaner flotation to recover high-purity cryolite

Tailing Treatment – Dewatering and dry stacking for environmental compliance

Ball Mill Grinding – Achieve suitable particle size for flotation feed

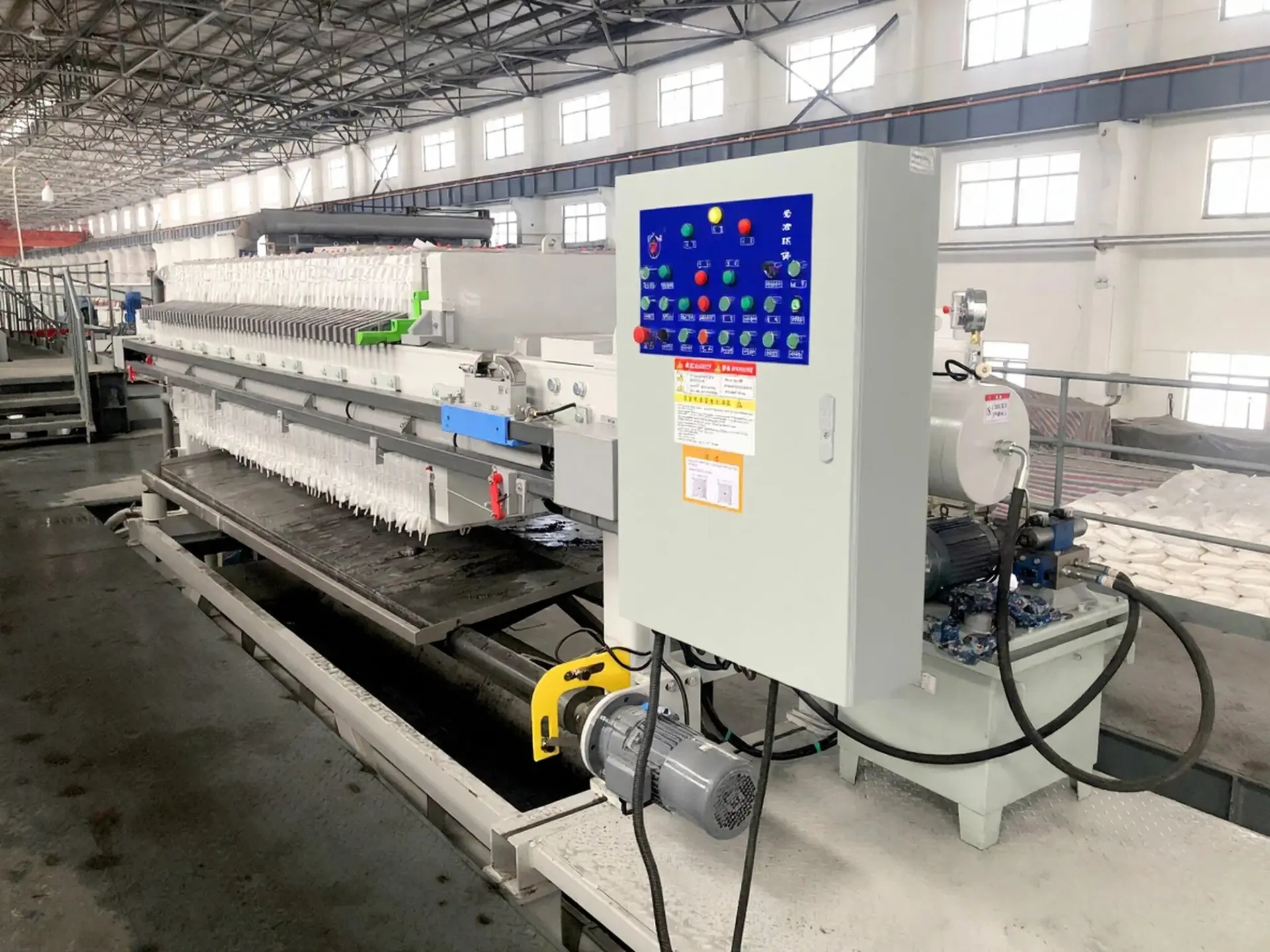

Concentrate Dewatering – Thickener + Press filter for final cryolite product

Direct Reuse – Recovered cryolite returned to aluminum electrolysis process, reducing raw material cost and waste discharge

Circular Recycling: Flotation recovers cryolite from aluminum slag, supporting green & sustainable production.
Strong Performance: Designed for 3 t/h but stably achieves 150 t/d.
Flexible Optimization: Added screening and crushing upgrades to efficiently handle real on-site material conditions.
Cost-Saving Integration: Recovered cryolite returns to aluminum electrolysis, and the new line fits directly into the existing workshop.
