Raw Ore: High-Grade Fluorite Ore from Deep Veins
Fluorspar Grade: 38% CaF₂
Concentrate Grade: 97.2% CaF₂
Recovery Rate: 92%
Capacity: 500 tons per day
Project Type: Economical & Compact Plant Design
Work Scope: Engineering Design, Equipment Supply, and Installation Guidance

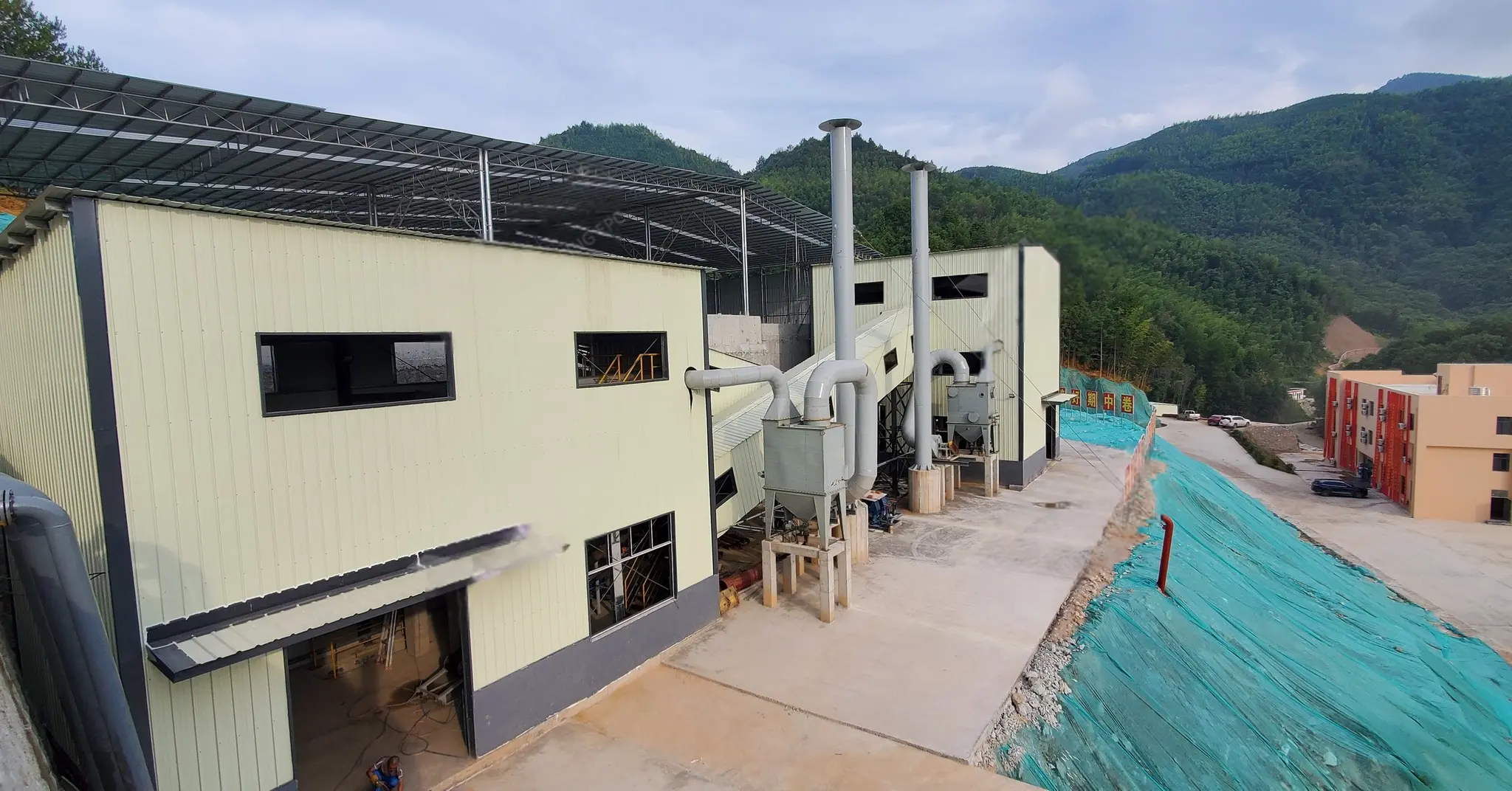

Here are some photos of the project, click on the small picture to view the large picture.
Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.
Compact 2-stage crushing system (Jaw Crusher + Hammer Crusher)
Targeted reagent system for selective fluorite flotation

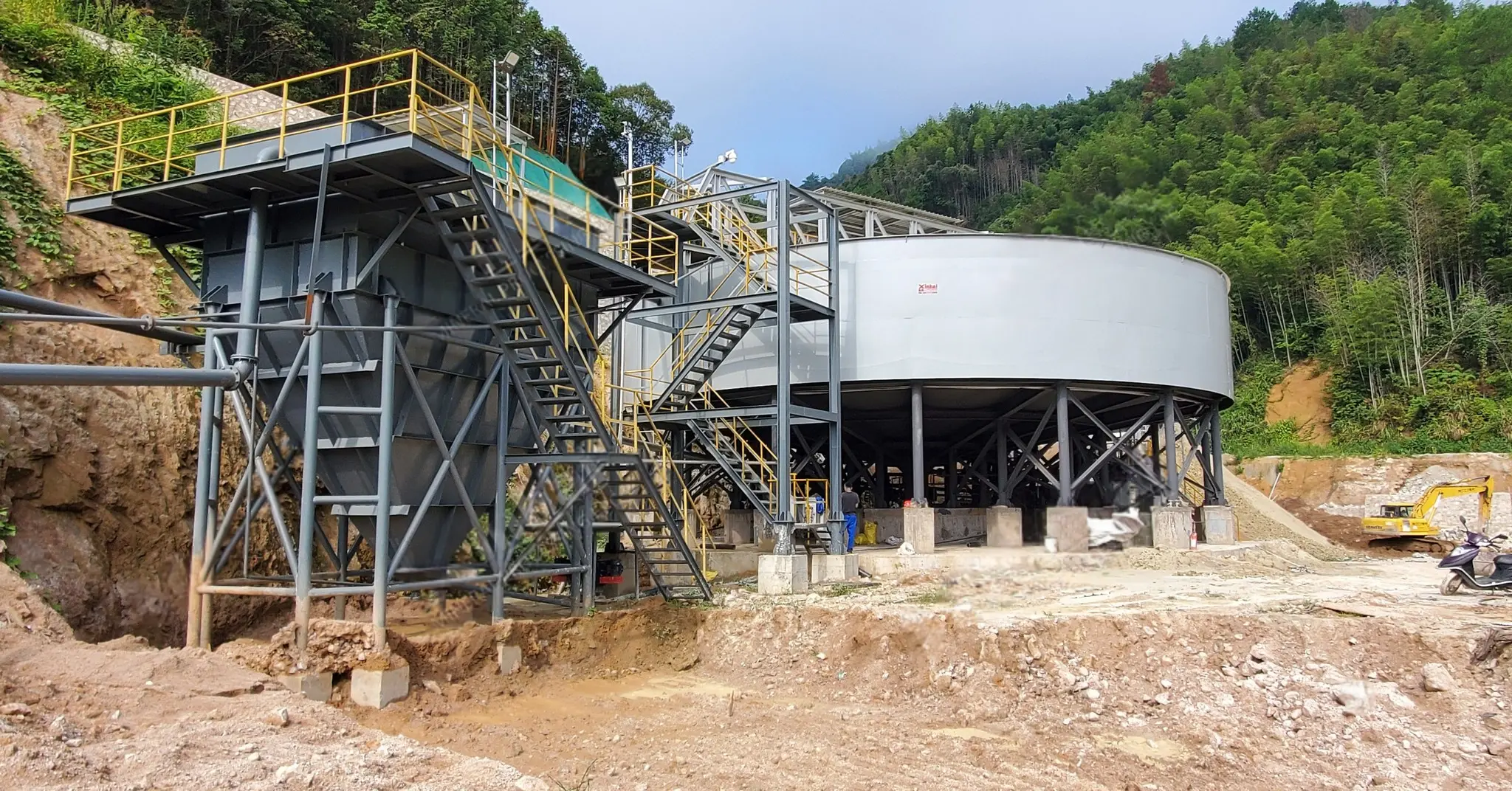

Concentrate dewatering with efficient thickener and filter press
Energy-saving grate ball mill for closed-circuit grinding

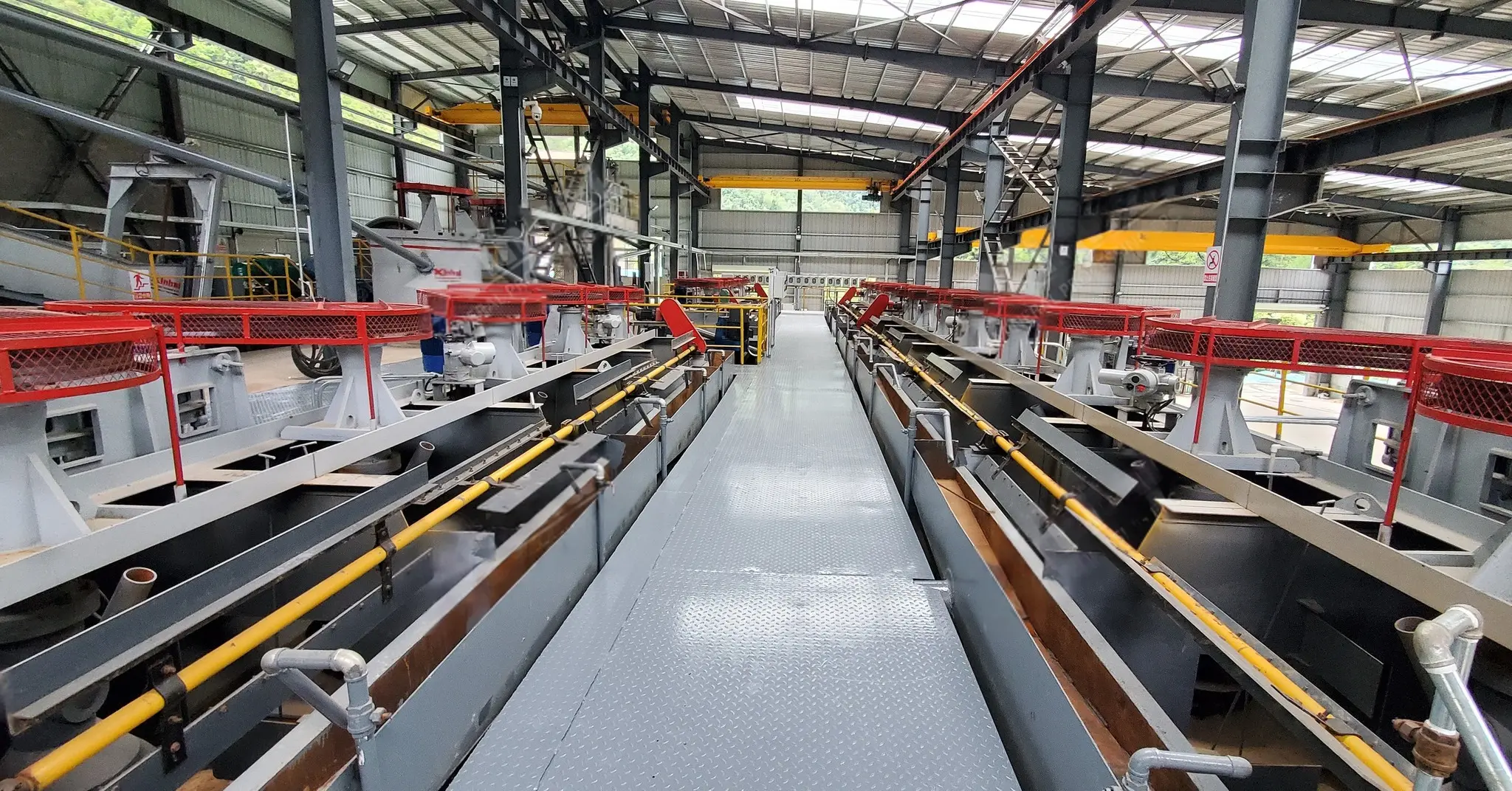

1 rougher flotation + 4 stages of cleaner flotation for premium grade
Dry stacking of tailings for environmental compliance & water saving
