Raw Ore: Oxide & Transitional Gold Ore
Gold Grade: 2.5–3.5 g/t
Final Product: Gold Concentrate (Gravity + Flotation Combined)
Gold Recovery Rate: ≥ 93%
Capacity: Designed 1,200 t/d, Achieved 1,500 t/d
Work Scope: Process Design, Equipment Supply, Installation Guidance, Commissioning Support

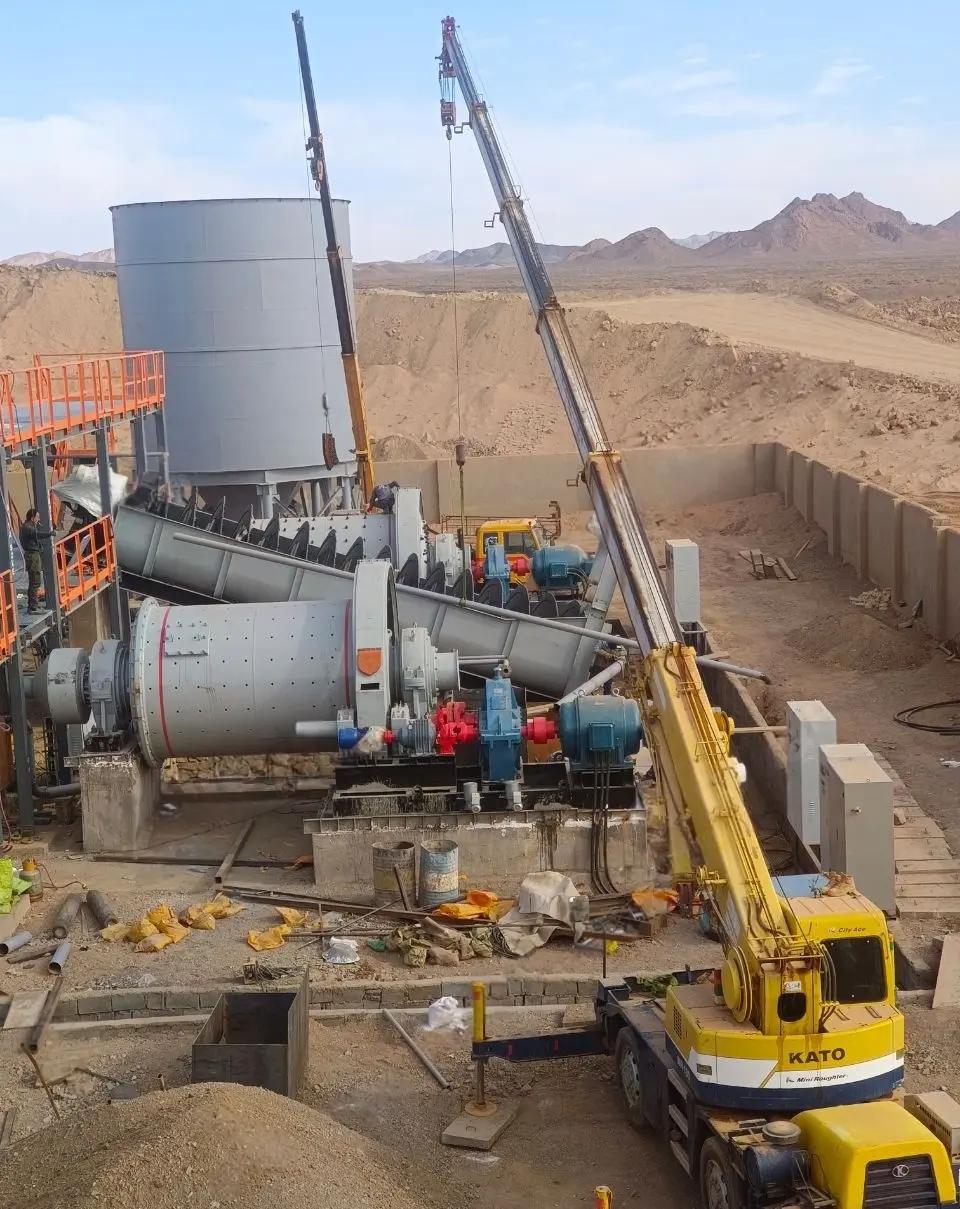

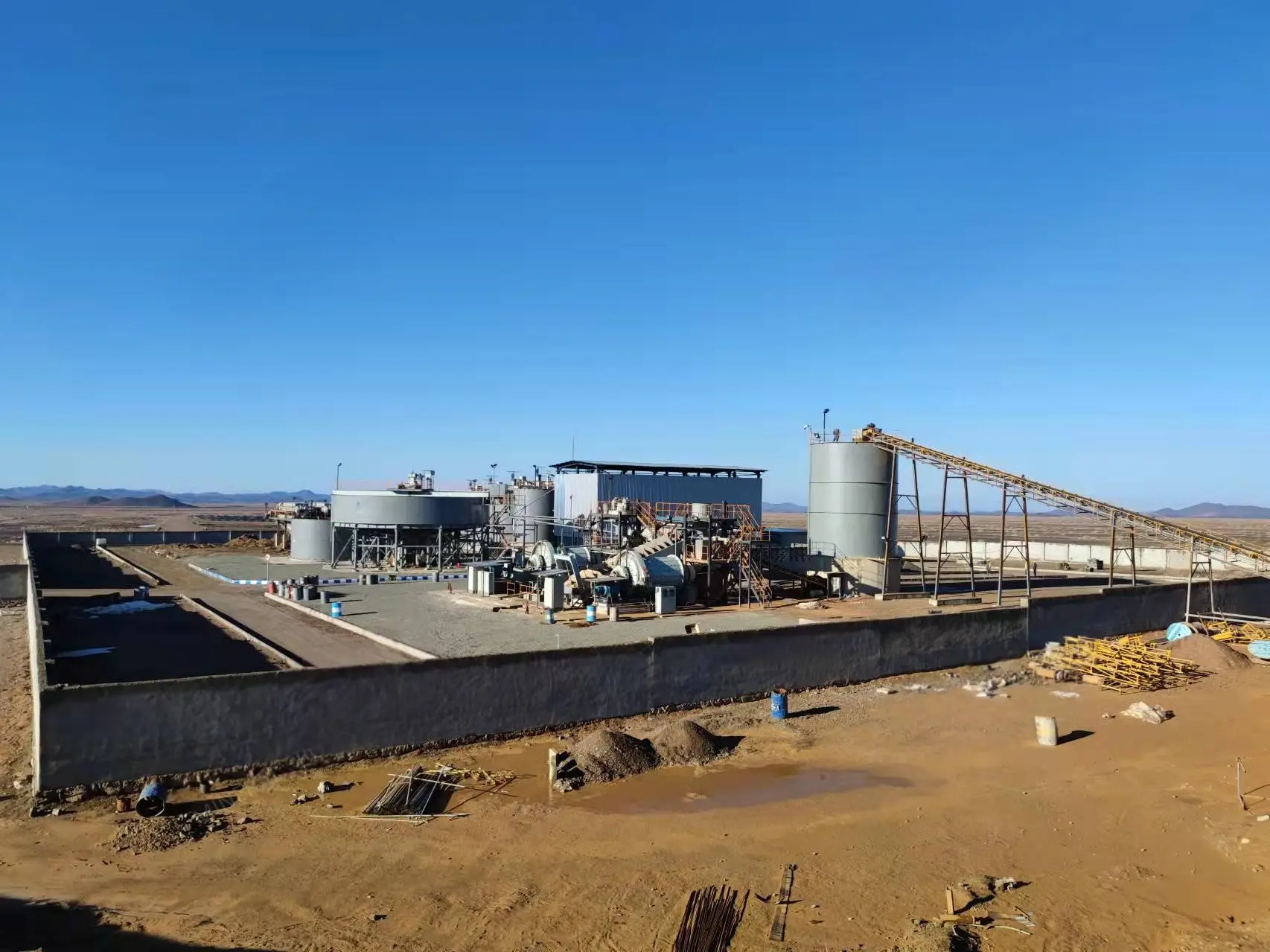

Here are some photos of the project, click on the small picture to view the large picture.
Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.
Two-stage crushing to achieve feed size below 12 mm
Gravity concentration using centrifugal concentrator for coarse gold recovery
Concentrate dewatering using thickener and press filter

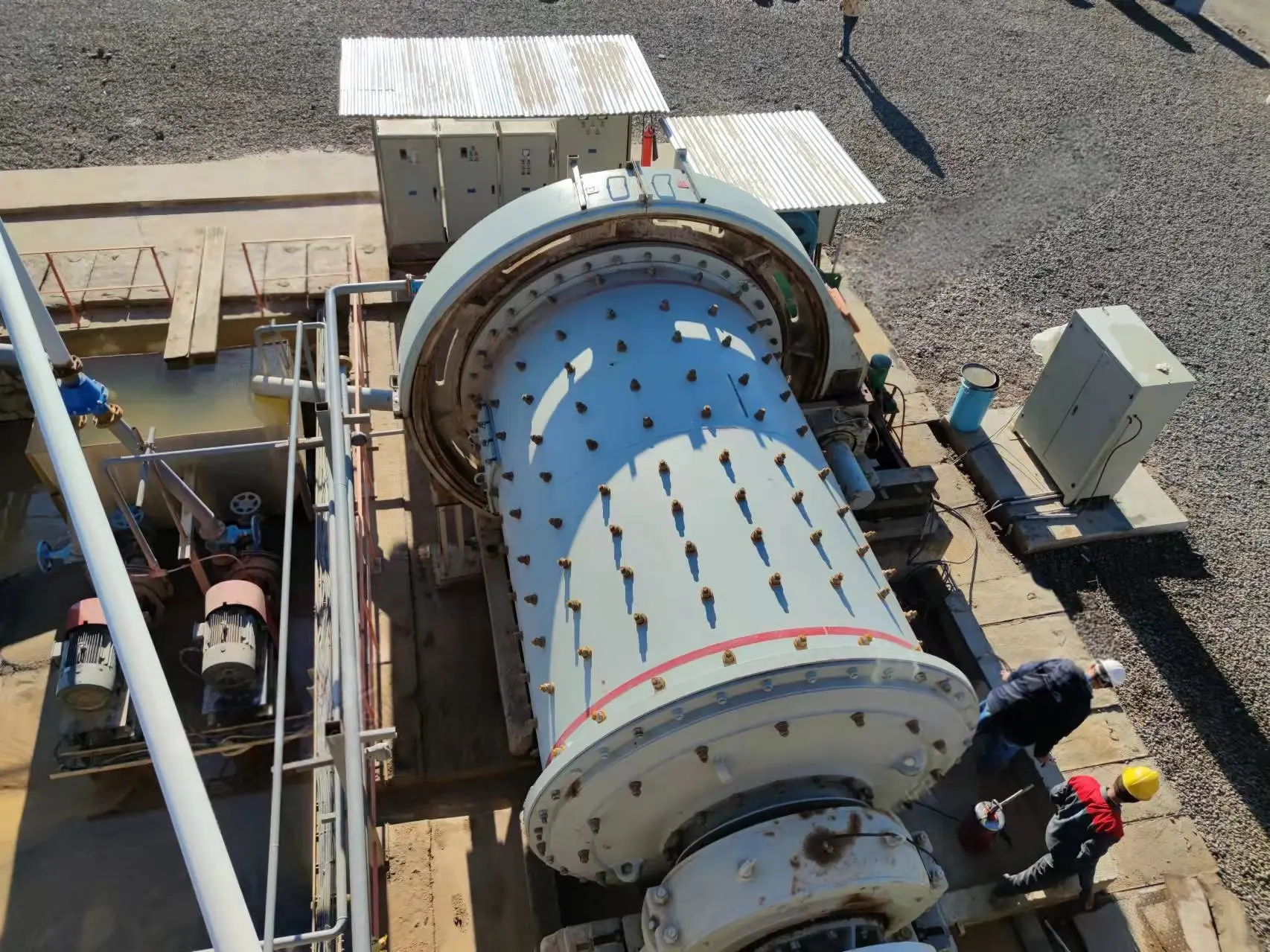

One-stage ball mill grinding with cyclone classification to reach grinding fineness of 74 µm (D₈₀)
Flotation system: 1 stage rougher, 2 stage cleaners, and 2 stage scavengers
Tailing management with thickening and filtration for dry stacking
