2 Million t/a Gold Flotation Plant Expansion in Xinjiang, China

Project Background: Expansion and Technological Upgrade of an Existing Flotation Plant

Raw Ore: Refractory Sulfide Gold Ore with associated pyrite and arsenopyrite

Original Plant Capacity: 1.2 Million t/a

Final Product: Gold Flotation Concentrate

Expanded Capacity: 2.0 Million t/a (Total)

Gold Recovery Rate: Increased from 86% to 92.5% post-expansion

Work Scope: EPC – Expansion Design, New Equipment Supply, Installation, Integration & Commissioning

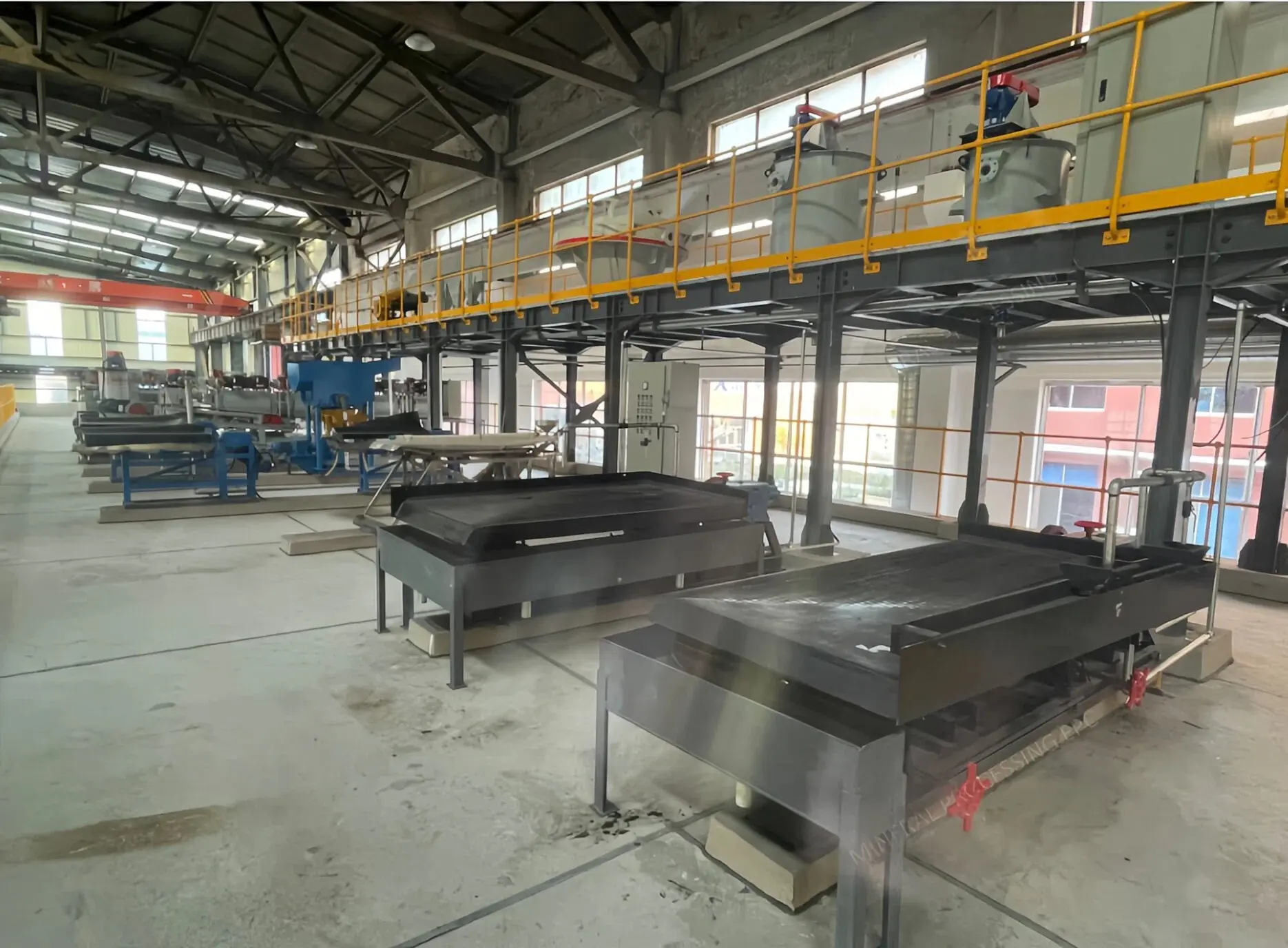

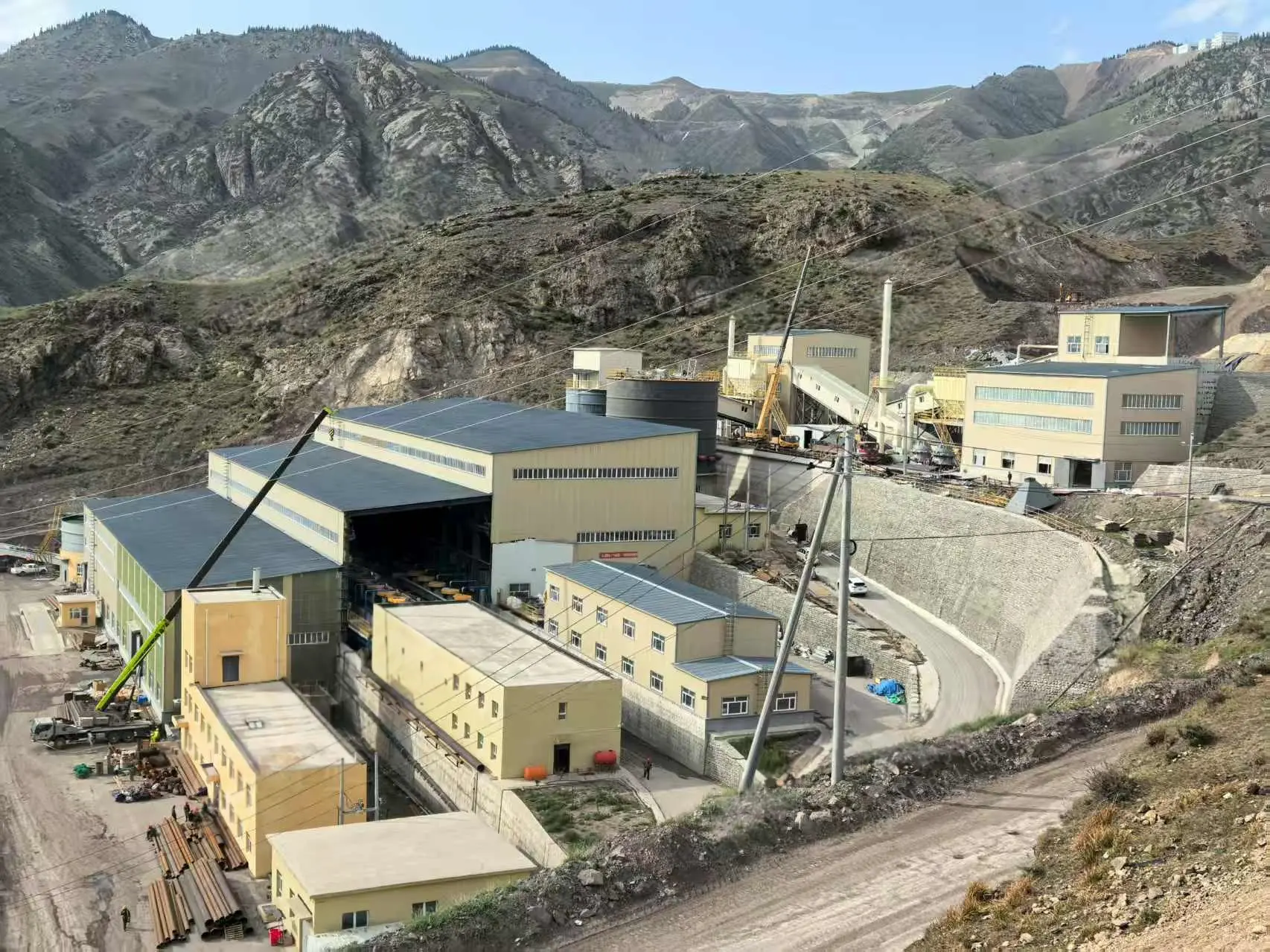

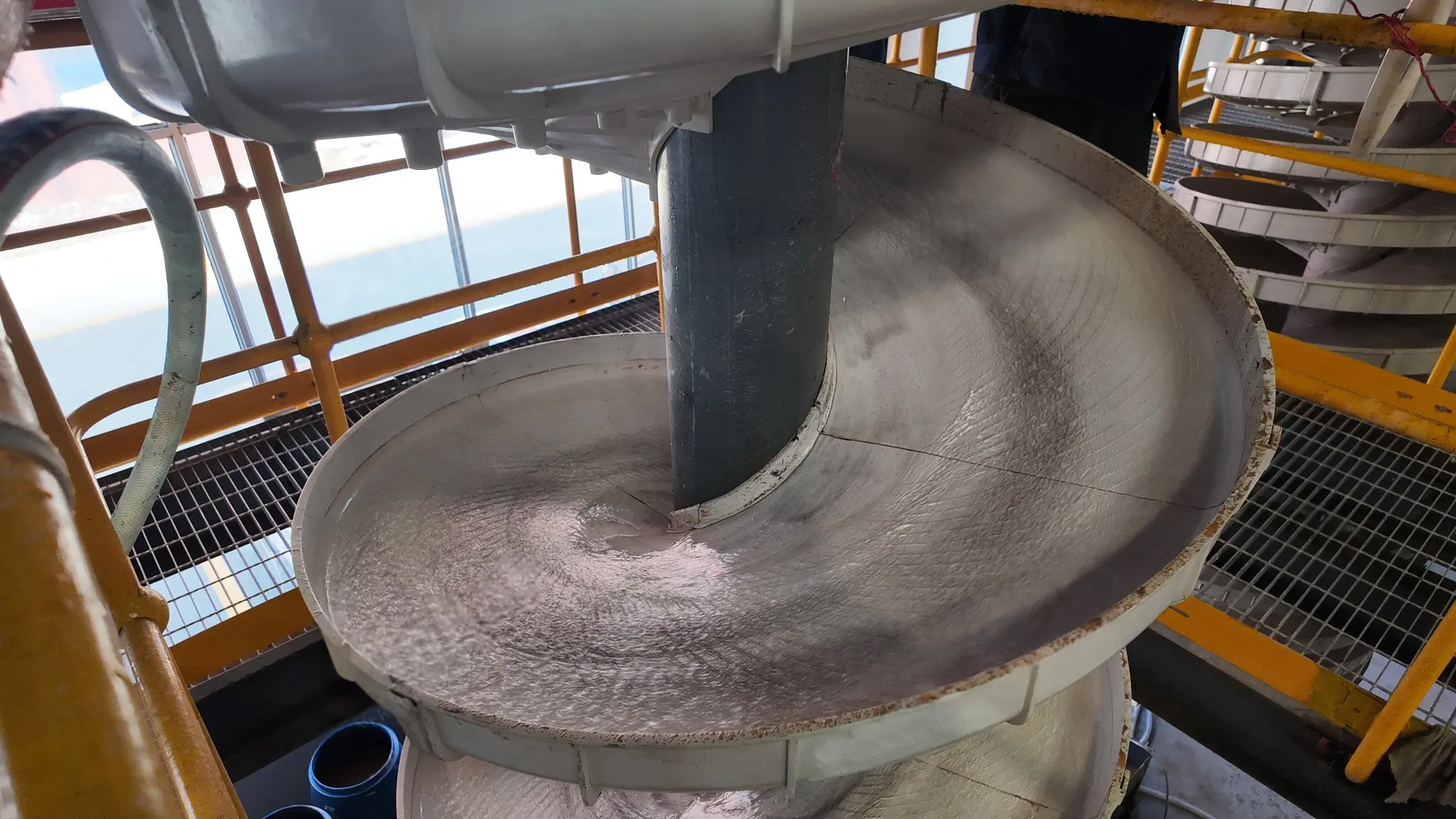

Here are some photos of the project, click on the small picture to view the large picture.

Below are some ways to handle this plan. If you want to get a more detailed plan, please click the button to contact us.

Upgraded Crushing & Screening:

Integration of a new primary gyratory crusher to handle increased throughput.
Existing two-stage crushing circuit (Jaw + Cone Crusher) optimized and retrofitted to form a robust three-stage crushing system, ensuring consistent feed size of 12mm below for grinding.

Enhanced Flotation Circuit:

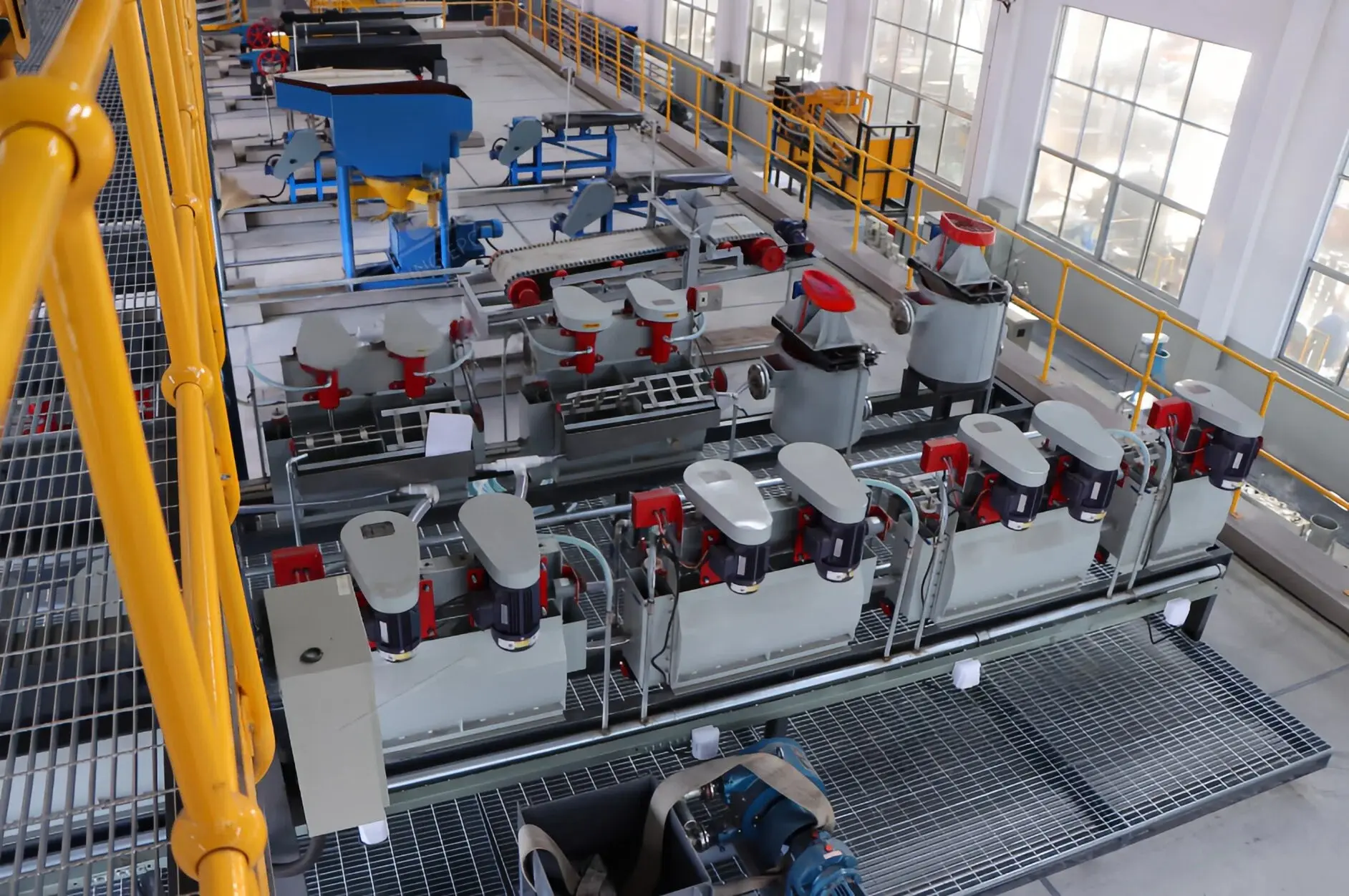

Installation of new, high-efficiency 200 m³ flotation cells to form an expanded circuit.
Implementation of a “1-stage Rougher, 3-stage Cleaner, 2-stage Scavenger” configuration for superior selectivity and recovery.

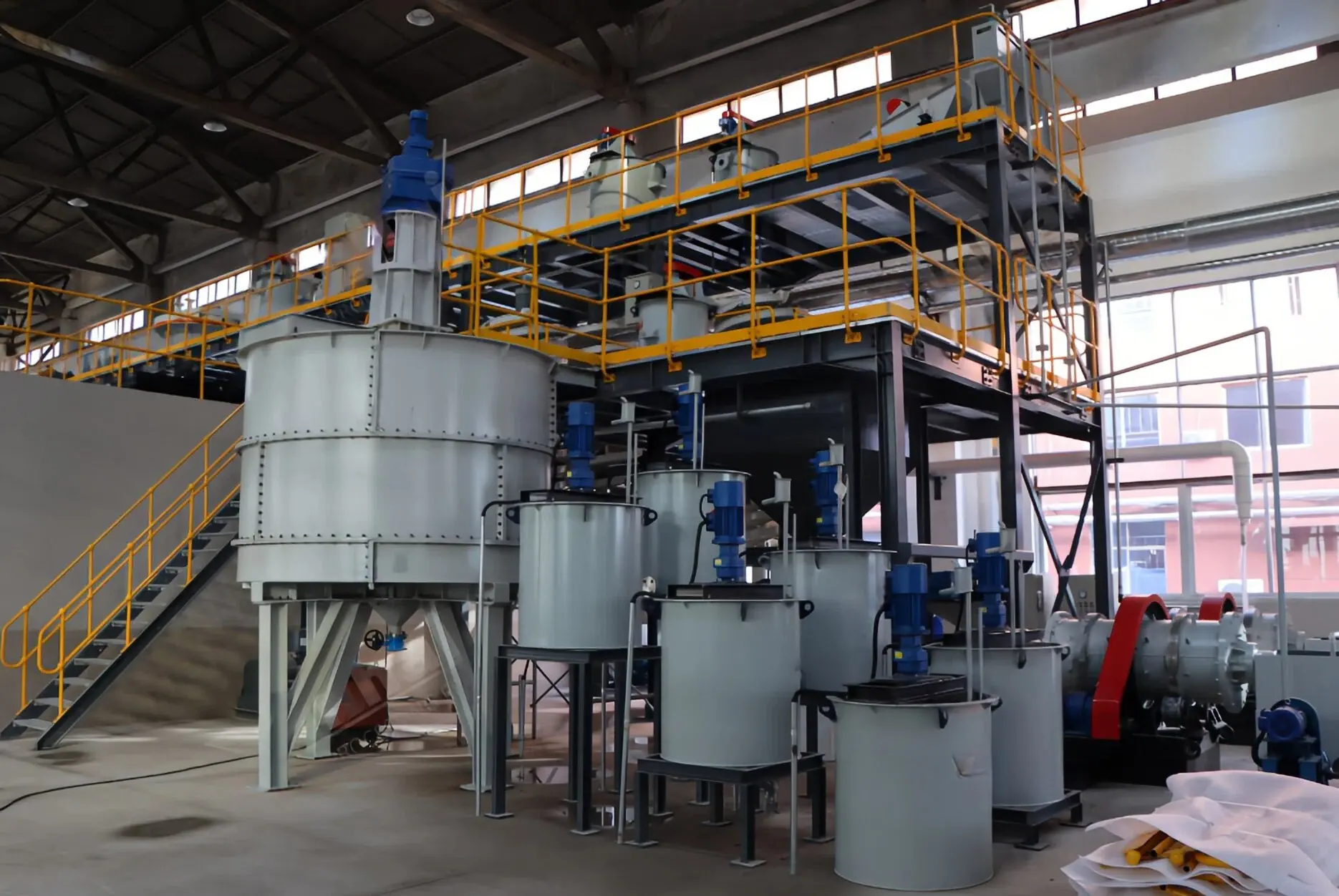

Introduction of an advanced automated reagent dosing system to optimize collector and depressant usage, particularly for controlling arsenic.

Process Control & Automation:

DCentralized PLC/DCS control system integrated with the existing plant control room.
Addition of online particle size analyzers (PSD) and pH/ORP sensors for real-time process optimization, ensuring stable operation at the expanded capacity.

Grinding Circuit Expansion:

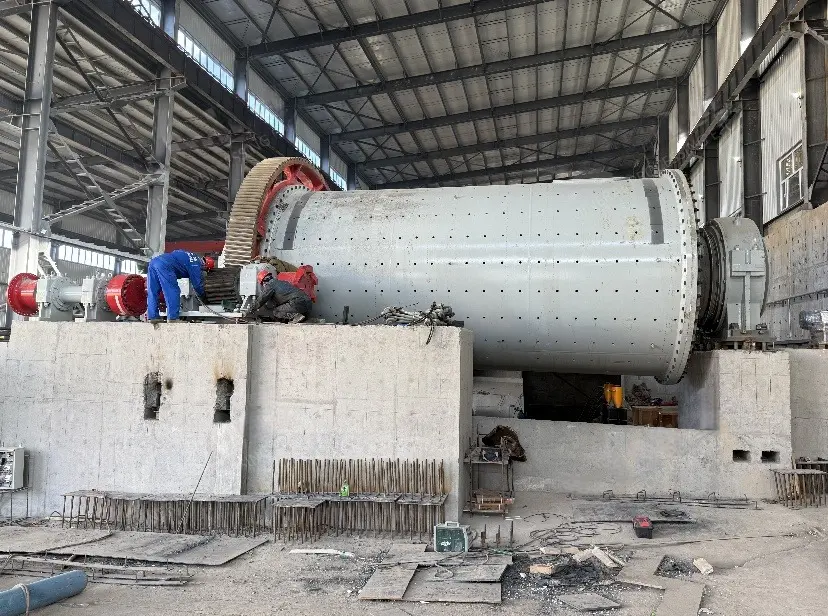

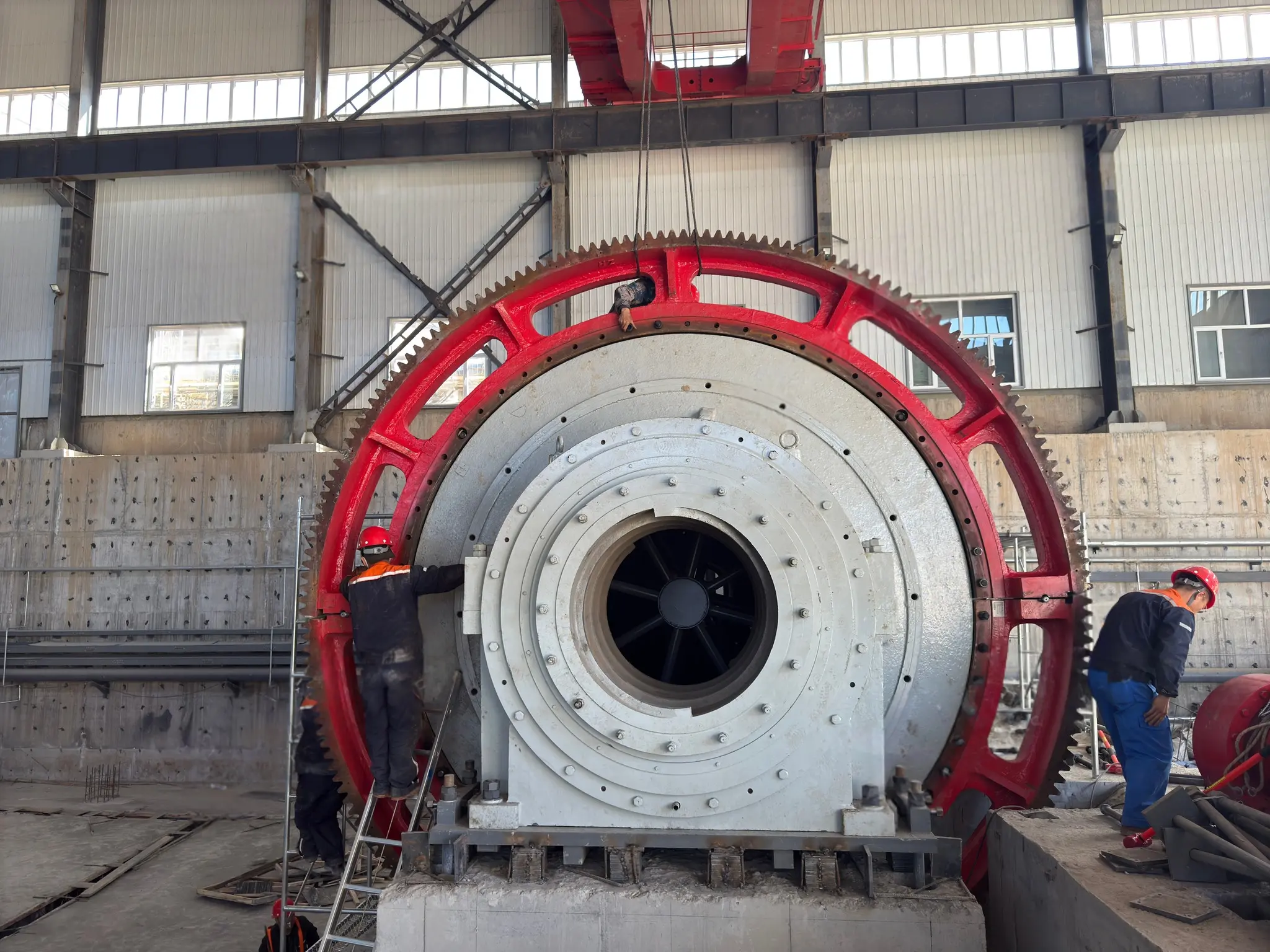

Addition of a second Φ5.0m x 8.5m Ball Mill operating in parallel with the existing unit.
Formation of a closed-circuit grinding system with hydrocyclones to achieve a target grind size of 80% passing 75µm, essential for liberating fine gold locked in sulfides.

Concentrate & Tailing Handling:

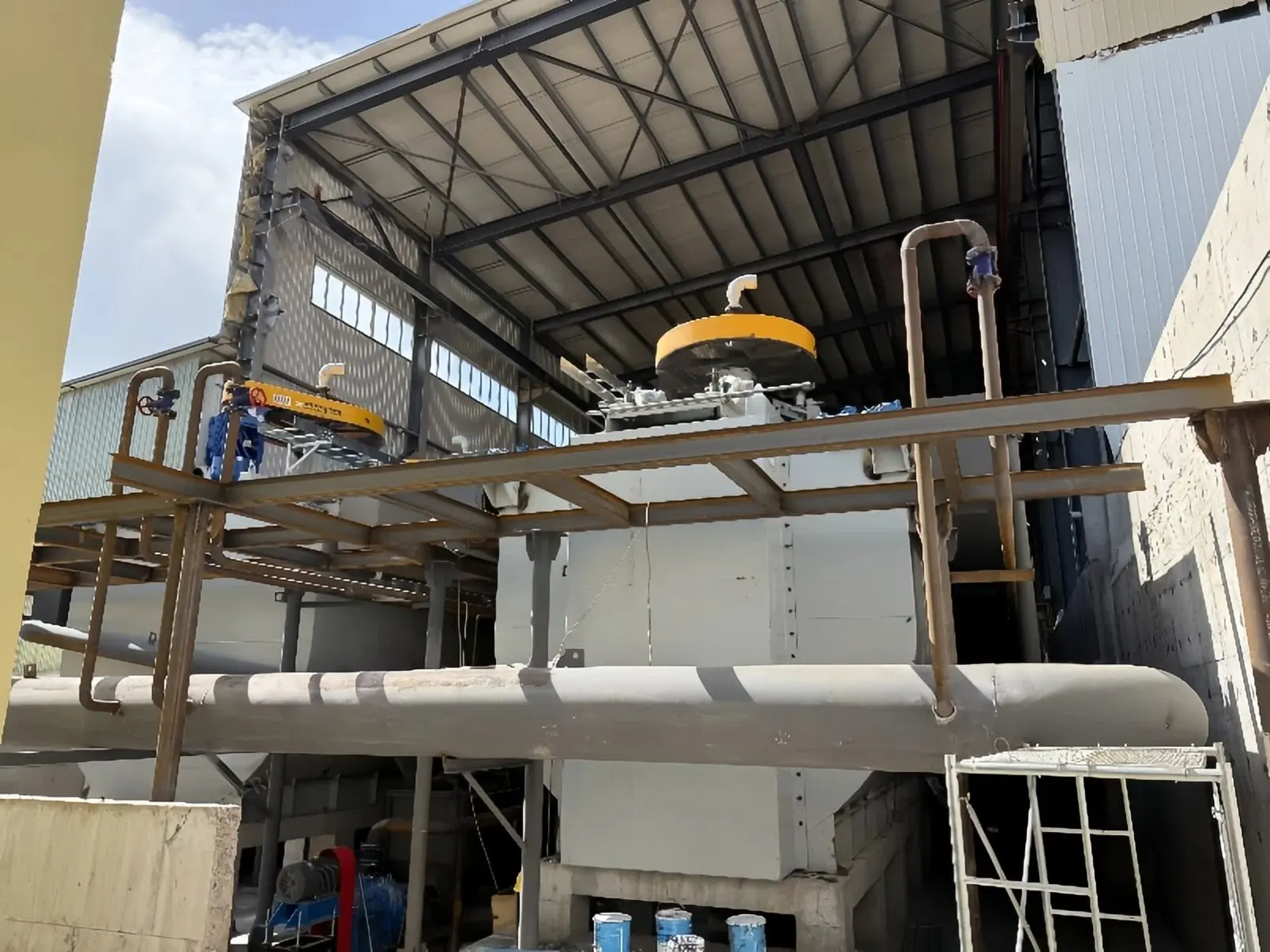

New high-rate thickener for flotation concentrate dewatering.
Installation of a filter press for the concentrate to produce a low-moisture filter cake, reducing transportation costs.
Upgraded tailing pumping system and pipeline to the existing tailings storage facility, designed to handle the increased volume.

Key Features & Outcomes of the Expansion:

Capacity Leap: Successfully increased processing capacity by 800,000 t/a, achieving the 2 Million t/a target.
Recovery Boost: Through finer grinding and optimized flotation, the overall gold recovery rate was significantly enhanced by 6.5%.
Proven EPC Capability: Demonstrated strong capability in brownfield project execution, seamlessly integrating new systems with existing infrastructure with minimal disruption to ongoing production.
Adapted to Refractory Ore: The flowsheet is specifically designed to tackle the challenges of refractory sulfide gold ores prevalent in the region.
Emphasis on Eco-Efficiency: The expansion prioritized water recycling from the thickener overflow and dry tailing stacking where applicable, aligning with stringent environmental policies in Xinjiang.
