Process Purpose： Cleaning raw silicon wafers and fabricating light-trapping textured surfaces

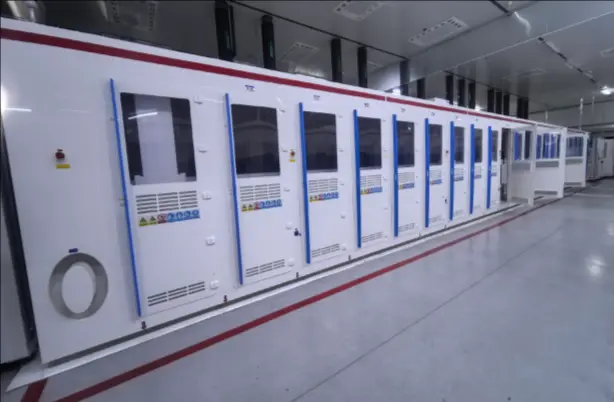

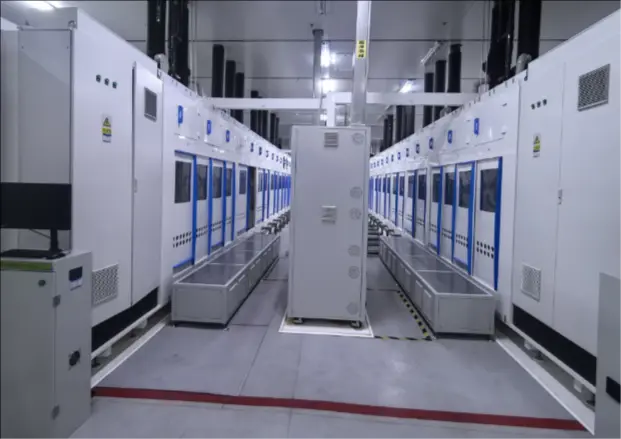

Monocrystalline Batch Texturing Equipment
Supplier choice: Changzhou JJG.,etc
Example Model: SC-CSZ10000E-20F
Process Purpose: To form the PN junction required for solar cell fabrication.

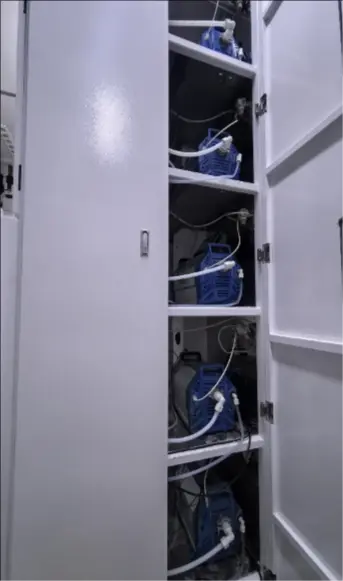

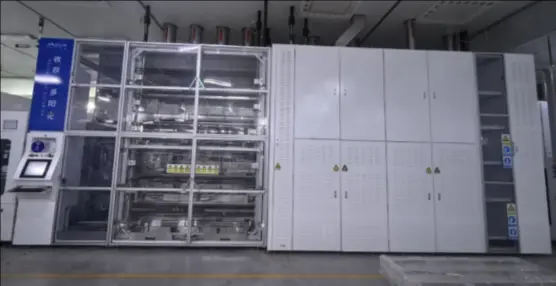

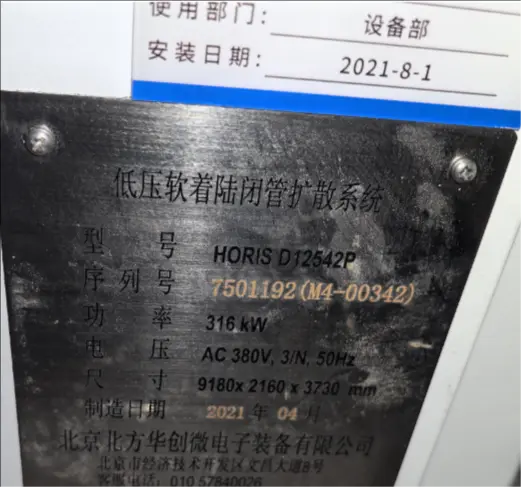

Low-Pressure Soft-Landing Closed-Tube Diffusion System
Supplier choice: Beijing NAURA Microelectronics.,etc
Example Model: HORIS D12542P
Process Purpose: Remove backside PSG (Phosphosilicate Glass) and create a polished surface on the rear side.

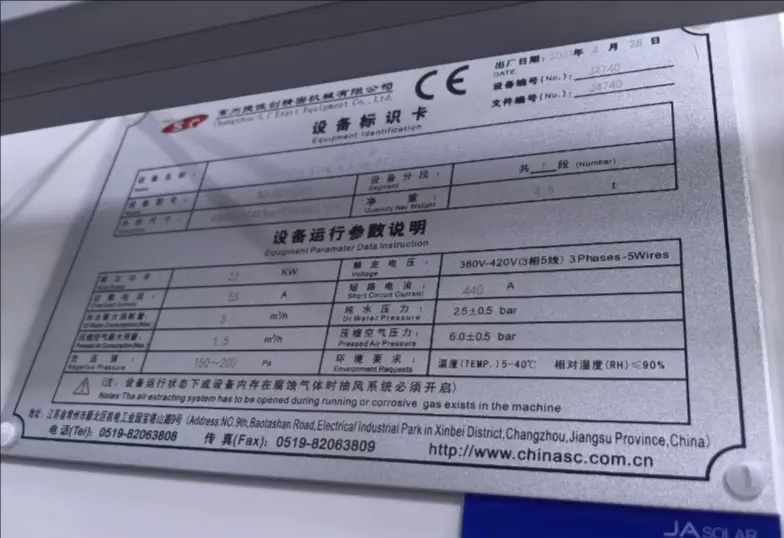

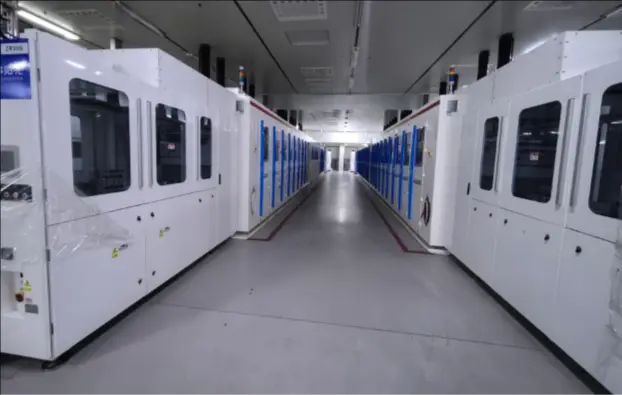

Single-Side PSG Removal Equipment
Supplier choice: Changzhou JJG Precision.,etc
Example Model: SC-LSS7500CS
Process Purpose: To achieve anti-PID (Potential Induced Degradation) performance.

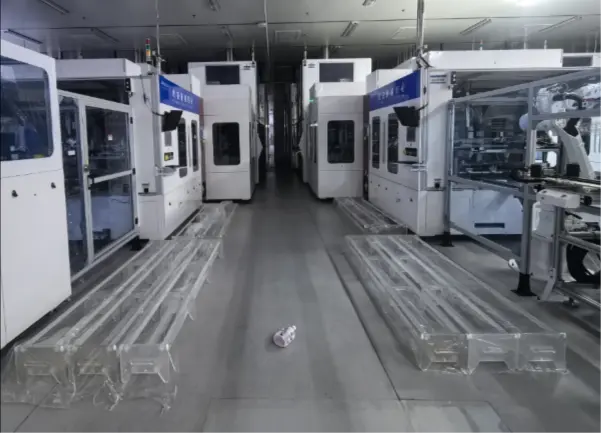

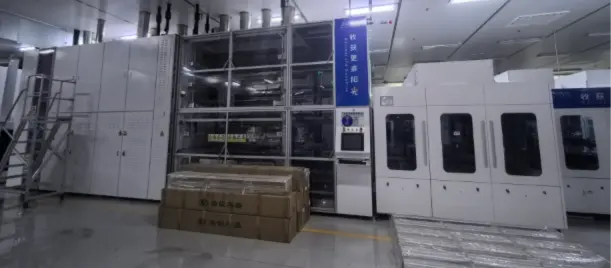

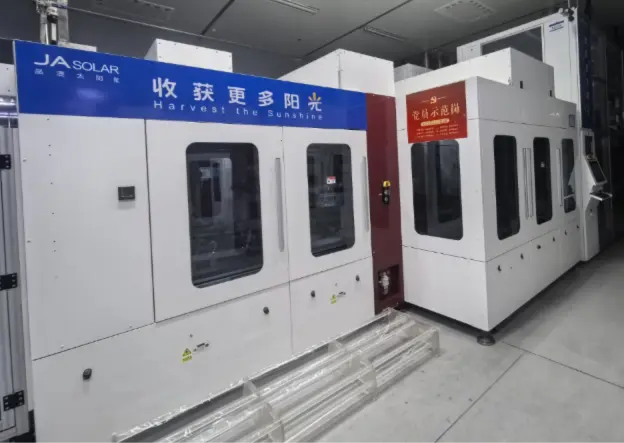

Tube Diffusion Oxidation Annealing Furnace
Supplier choice: Shenzhen S.C New Energy.,etc
Example Model: （DOA-420）（Oxidation furnace，6 tubes）
Process Purpose: Deposit an Al₂O₃/SiNx passivation stack on the silicon wafer rear side to reduce surface recombination velocity and enhance secondary reflection.

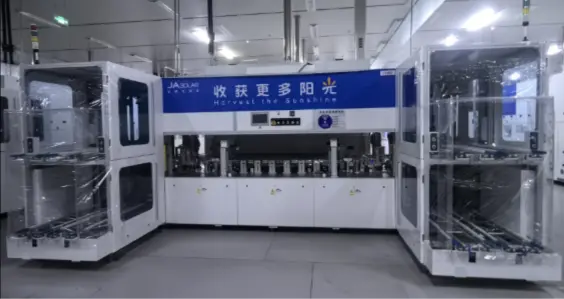

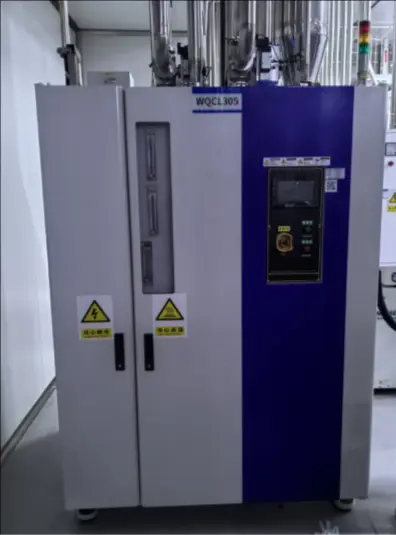

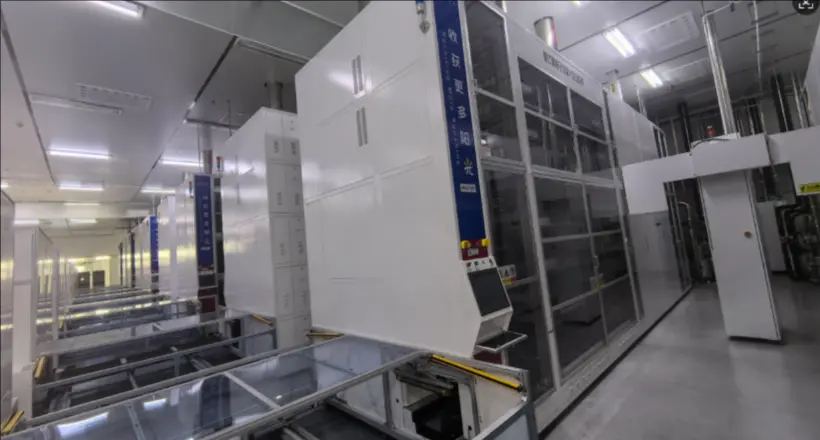

Tube Plasma Aluminum Oxide Deposition Furnace
Supplier choice: Shenzhen S.C New Energy.,etc
Example Model: （PD-520）（Rear surface, 5 tubes）
Process Purpose: Fabrication of anti-reflection coating (ARC) on solar cell

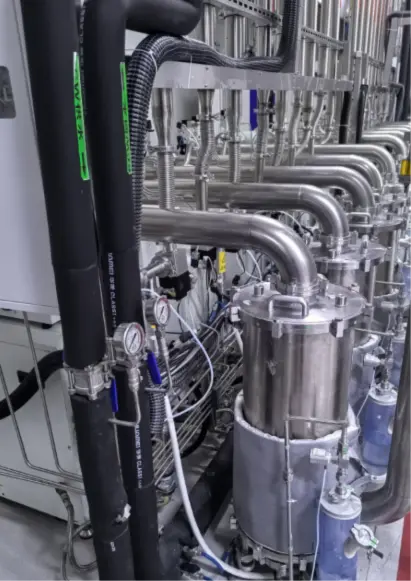

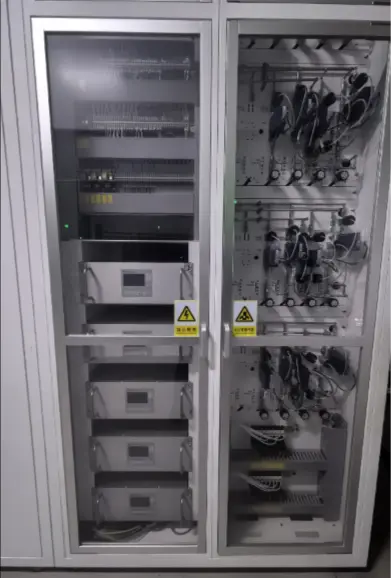

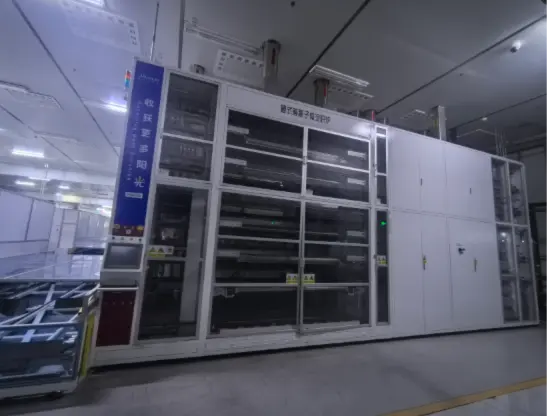

Tube Plasma Deposition Furnace
Supplier choice: Shenzhen S.C New Energy.,etc
Example Model: （PD-520）（Front surface，10 tubes）
Process Purpose: Laser ablation of backside dielectric stack to form localized back surface field (LBSF) contacts for current collection.

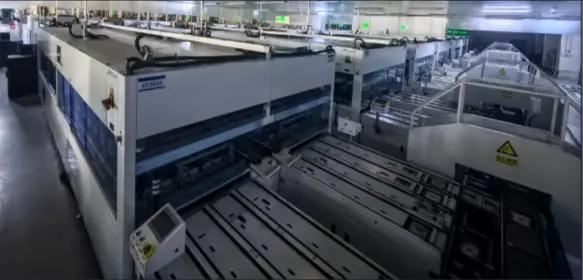

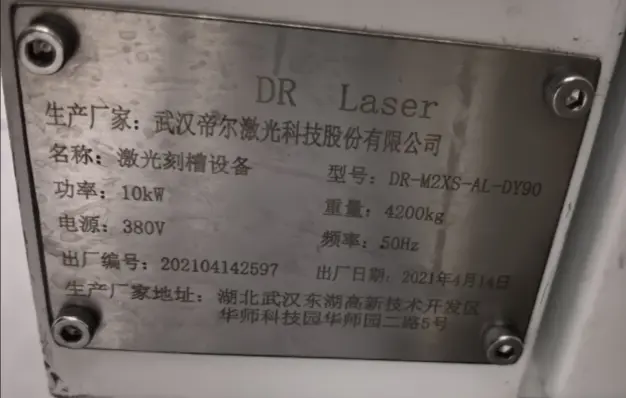

Laser Grooving Equipment
Supplier choice: Wuhan DR Laser Technology.,etc
Example Model: DR-M2XS-AL-DY90
Process Purpose: Formation of front & rear surface electric fields and electrodes for current collection and extraction, while providing soldering points for inter-cell series connection.

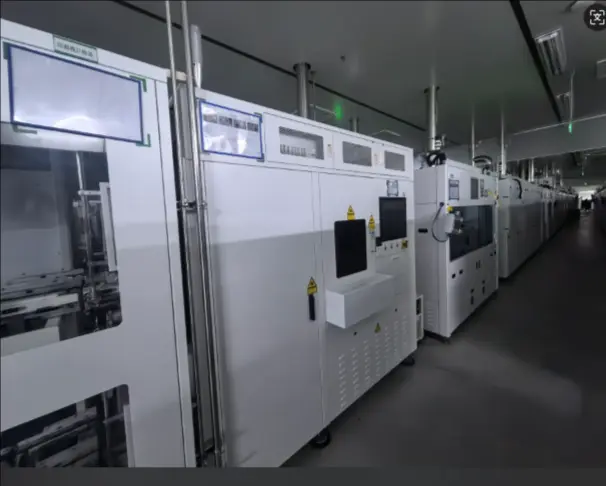

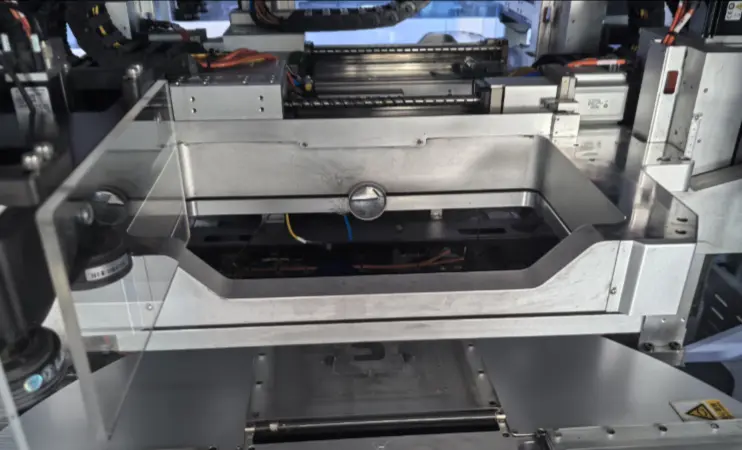

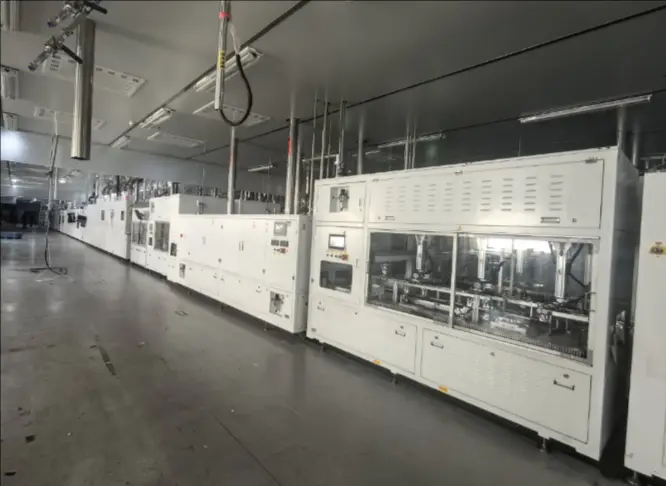

Dual-Track Screen Printing Line
Supplier choice: Suzhou Maxwell.,etc
Example Model: MX-XDL-DP
Process Purpose: Formation of optimal ohmic contacts at electrodes while passivating silicon surface and bulk defects through hydrogenation.
Dual-Track Firing Furnace
Supplier choice: Suzhou Maxwell.,etc
Example Model: MX-XDL-OVEN- D+P II-II
Process Purpose: Sorting and screening of solar cells based on efficiency, appearance, and electroluminescence (EL) characteristics.

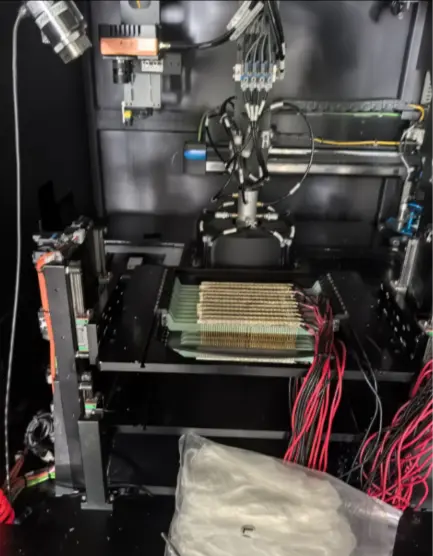

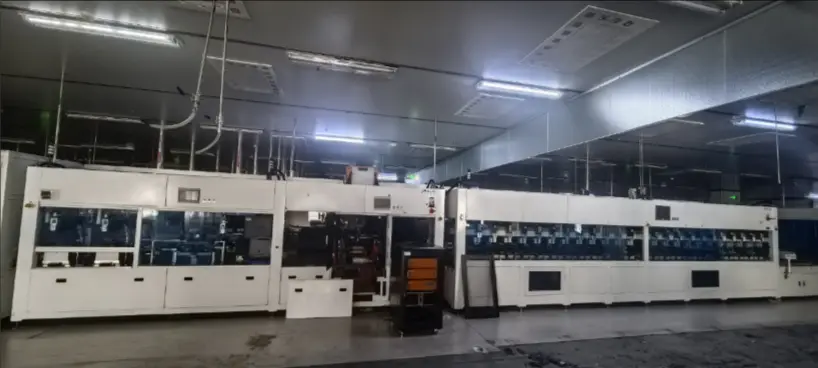

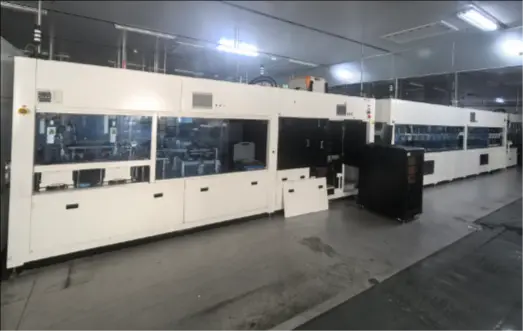

Dual-Track Testing & Sorting
Supplier choice: Suzhou Maxwell.,etc
Example Model: MX-XDL-TEXT
