Prominer provides various types of furnaces for primary and secondary baking of carbon and graphite materials, including CBF (car bottom furnace), pit-ring and tunnel furnaces. Since baking and re-baking processes for anode material, special graphite, isostatic graphite, HP and UHP electrodes and nipples have different heating curves and firing cycles, the design and selection of the furnace type according to the required end product parameters and customer requirements are of high importance to ensure the quality of the end product.
Design temperature: Max. 1250°C
Power consumption: 1.8 -3.5 GJ/T product for secondary baking
HP electrode, UHP electrode baking and rebaking process
Artificial graphite anode material precarbonization process
Special graphite and Isostatic graphite
CBF furnace can be sized to suit the product and apply high convection heating to optimize cycle times and give more uniform product quality.
CBF is divided into three temperature zones, each one has an internal circulation high-temperature stirring fan to enhance the flow of air to effectively prevents the sudden rise of the temperature in the furnace.
Prominer provides wide range of technological solutions for primary & secondary baking as well as impregnation of graphite electrodes.
Ring furnace makes full use of energy from volatile matter burning of pitch during baking, so its energy consumption is only 1.8GJ/t. baked product.
The production of UHP can be divided into materials processing, preparation of green electrodes, baking and rebaking, impregnation, graphitization, product packing.
Tunnel kiln, as a type of high-temperature continuous roasting carbonization furnace, has many advantages such as large output, short cycle and low energy consumption.
Pre-carbonizing anode material before graphitization will increase packing density, single-furnace output of the graphitization furnace, and reduce the production cost of the graphitization.
The common methods of treating waste gas from baking systems are through thermal oxidation and waste heat recovery.
Our equipment with the main advantages as below
| Feature | CBF Furnace | Pit-ring Furnace | Tunnel Furnace: |
|---|---|---|---|
| Design temperature: | Max. 1250°C | Max. 1100°C | Max. 1050°C |
| Temperature difference: | ±3~10°C Vertical and ±10°C Horizontal | ±50℃ Vertical | ±50℃ Vertical |
| Power consumption: | Primary baking: 4.2-6.0 GJ/T product | Primary baking: 2.8 GJ/T product | |
| Secondary baking: 2.5-3.5 GJ/T product | Secondary baking: 1.8 GJ/T product | 1.8GJ/baked product for secondary baking | |
| Loading way: | Need crucible for powder material* | No need crucible | Need crucible for powder material* |
| Packing Material: | CPC coke for primary baking, no need for rebaking. | CPC coke for primary baking, no need for rebaking. | No need |
| Application: | Carbon Cathode, UHP electrode, Isostatic graphite and special graphite | Primary baking and secondary baking for Carbon Cathode, UHP electrode | Secondary baking for UHP electrode and precarbonization process for anode material. |
| Design temperature | Max. 1250°C |
| Temperature difference | ±3~10°C at Vertical and ±10°C Horizontal |
| Temperature accuracy | ±1~5℃ |
| Heating rate | 0.5～10℃/h adjustable |
| Cooling rate | 2℃–15℃/h adjustable |
| Power consumption | 4.2-6.0 GJ/T baked product for primary baking 2.5-3.5 GJ/T baked product for secondary baking |
| Application | Primary baking and secondary baking for Carbon Cathode, UHP electrode and Isostatic graphite |
| Design temperature | Max. 1050°C |
| Calcination cycle | 288～336h; |
| Energy consumption | 1.8GJ/baked product for secondary baking |
| Loading way | Need saggar or crucible |
| Application | Secondary baking for UHP electrode and precarbonization process for anode material. |
| Design temperature | Max. 1100°C |
| Qty. of Pit | 4-5 pits per furnace |
| Qty. of Fire control system | 2-3 pcs |
| Qty. of heating section | 7-8 pcs |
| Temperature difference | ±50℃ Vertical |
| Fire cycle | 42-45h |
| Loading way | Stand loaded |
| Packing Material | CPC coke for primary baking Without packing material for secondary baking |
| Power consumption | 2.8 GJ/T baked product for primary baking 1.8 GJ/T baked product for secondary baking |
| Application | Primary baking and secondary baking for Carbon Cathode, UHP electrode |
Prominer can provide the service work as below
Raw Material: Carbon-slag from aluminum electrolysis Feed Grade: 15–20% Cryolite content Final Product: Recycled Cryolite ( purity ≥ 92% )
Raw Ore: Oxide & Transitional Gold Ore Gold Grade: 2.5–3.5 g/t Final Product: Gold Concentrate (Gravity + Flotation Combined)
From laboratory testing to final commissioning, Prominer delivered a customized 20 TPH solution
Boosting copper recovery and reducing energy consumption through cutting-edge pre-concentration and Prominer’s 15+ years of EPC expertise

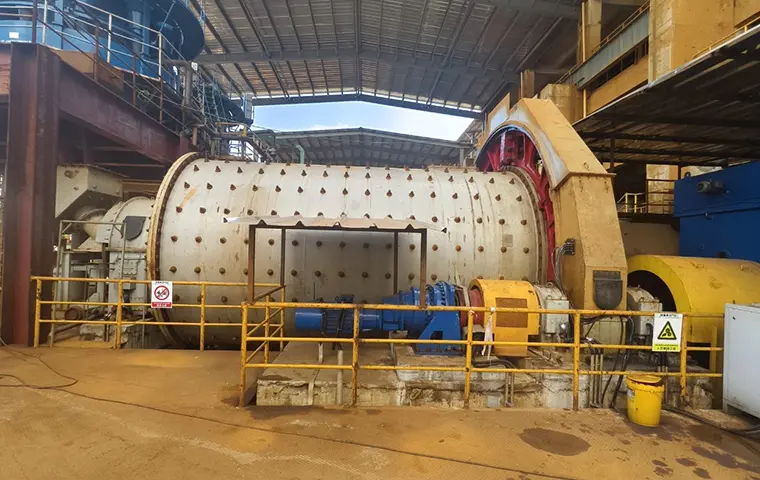

Located in Indonesia, this project focuses on the efficient regrinding of nickel ore to enhance mineral upgrading and deep processing. Prominer (Shanghai) Mining Technology Co., Ltd.
